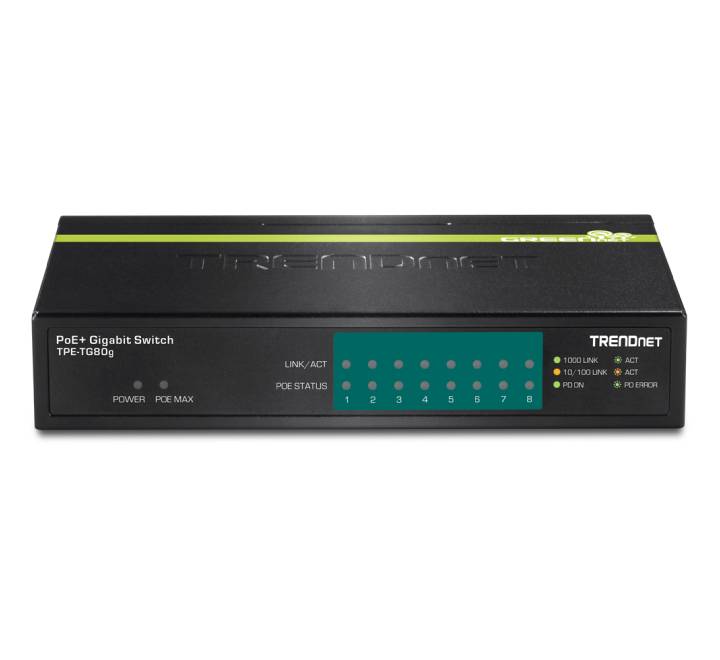

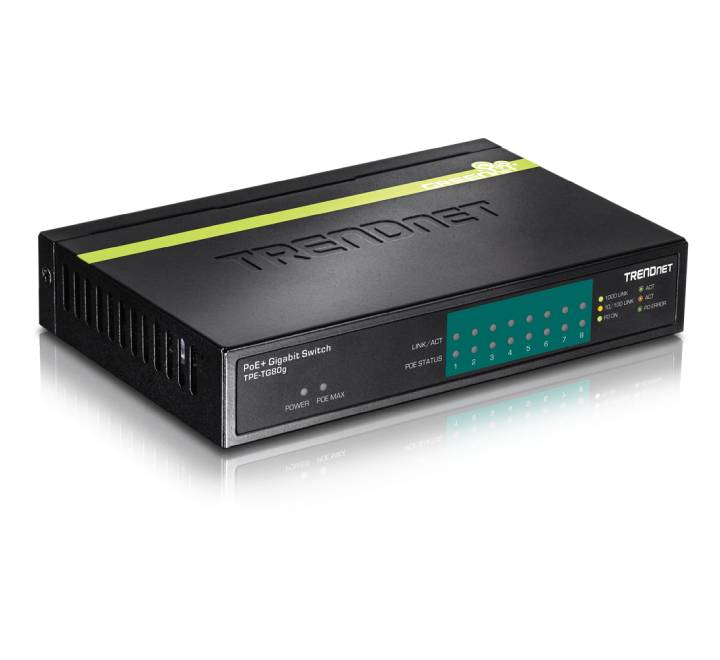

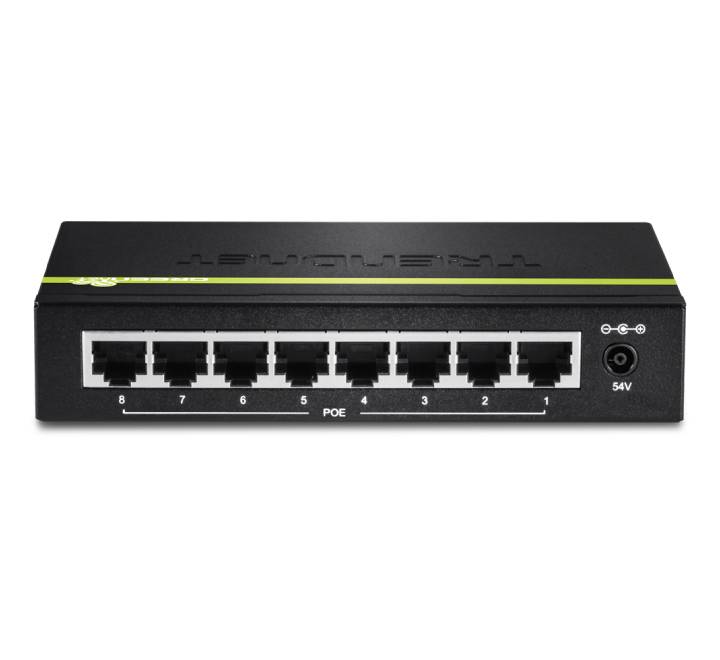

Trendnet 8-Port Gigabit PoE+ Switch 105W (TPE-TG80g)

Trendnet 8-Port Gigabit PoE+ Switch 105W (TPE-TG80g)

• Brand: TRENDnet
• Model: TPE-TG80g
• 8-port GREENnet Gigabit PoE+ Switch (105W)
• 8 x Gigabit PoE+ ports
• 123 W PoE power budget
• 16 Gbps switching capacity
• Sturdy metal switch
• Plug and Play installation

• Standards
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• Device Interface
• 8 x Gigabit PoE/PoE+ ports
• LED indicators
• Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit: 2000 Mbps (full duplex)
• Performance
• Data RAM Buffer: 128KB
• Switch Fabric: 16Gbps
• MAC Address Table: 4K entries
• Forwarding rate: 11.9Mpps (64-byte packet size)
• Jumbo Frame: 9K
• Special Features
• GREENnet energy saving technology
• Power
• Input: 100-240 V AC, 50/60 Hz, 1.9 A
• Output: 54V DC, 2.77A
• Max. consumption: 5.3W
• PoE
• PoE budget: 123 W
• Pin 1,2 for power+ and pin 3,6 for power- (mode A)

Overview

PoE+

A 123W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ethernet

Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

PoE+

Supplies up to 30 Watts of PoE power per port with a 123 Watt power budget

Ports

8 x Gigabit PoE+ Ethernet ports

Switching Capacity

16 Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 9 Kbytes) for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption

Housing

Rugged metal enclosure

LED Indicators

LED indicators convey port status
