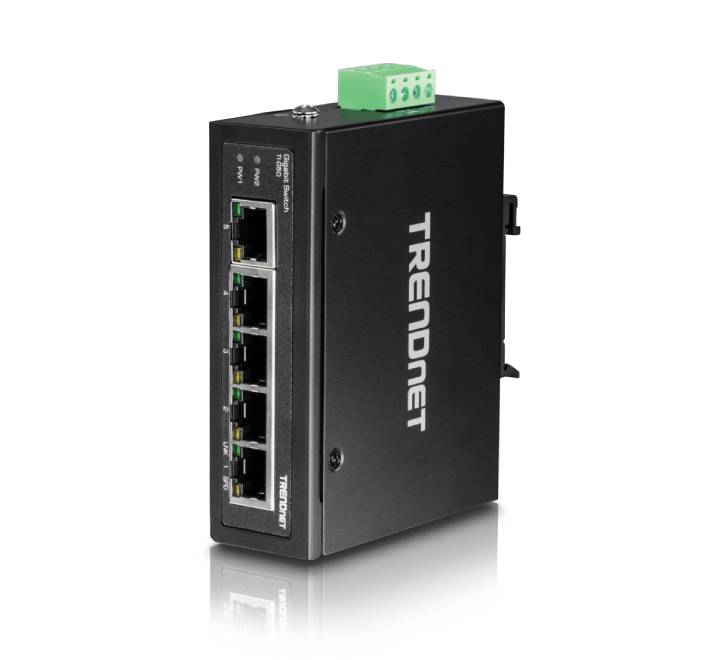

Trendnet 5-Port Hardened Industrial Gigabit DIN-Rail Switch (TI-G50)
- Brand: TRENDnet
- 5 x Gigabit Ethernet ports
- 10 Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Power supply sold separately (model TI-M6024)
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- Device Interface
- 5 x Gigabit ports
- 4-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Performance
- Data RAM Buffer: 1024 KB
- Switching Fabric: 10 Gbps
- MAC Address Table: 8 K entries
- Forwarding rate: 7.44 Mpps (64-byte packet size)
- Special Features
- Hardened components rated for extreme temperatures
- Dual redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8 KV and Surge 6 KV protection
- Power
- Input: 12 - 56 V DC or 18 - 36 V AC
- Compatible power supply: TI-M6024 (sold separately)
- Consumption: Max. 2.76 Watts
- Terminal Block
- Redundant power inputs, 4 pin
- Wire range: 0.34 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
- Wire strip length: 7-8 mm
OVERVIEW
TRENDnet's TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.
Network Ports
5 x Gigabit Ethernet ports
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
10 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
