High Power PoE
The 440W total PoE power budget on this high-power PoE switch supplies 16 Power over Ethernet devices with up to 30W per port.
Description
_1.jpg)

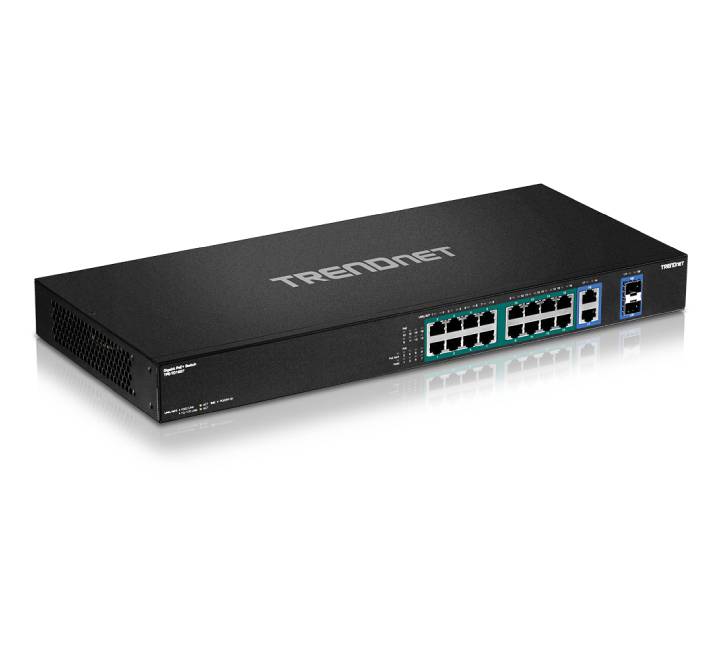

Trendnet 18-Port Gigabit High Power PoE+ Switch 440W (TPE-TG182F)
- Brand: TRENDnet
- Model: TPE-TG182F
- 18-Port Gigabit High Power PoE+ Switch(440W)
- 16 x Gigabit PoE+ ports
- 2 x Shared Gigabit ports (RJ-45 or SFP)
- 36Gbps switching capacity
- Internal power supply
- 440W PoE power budget
- Reduces equipment cost by delivering data and power over existing network cables
- Sturdy rack mountable metal housing
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3af
- IEEE 802.3at
- Device Interface
- 16 x Gigabit PoE+ ports
- 2 x Shared Gigabit ports (RJ-45 or SFP)
- LED indicators
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Performance
- Switch Fabric: 36Gbps
- RAM Buffer: 512KB
- MAC Address Table: 8K entries
- Forwarding Rate: 26.78Mpps (64-byte packet size)
- Jumbo Frames: 9KB
- Power
- Input: 110-240V AC, 50/60Hz, internal power supply
- Max. Consumption: 18W (Max. without PD)
- PoE
- PoE budget: 440W
- Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
- Fan/Acoustics
- Quantity: 1
- Noise Level: 56 dBA (max.)
- Dimensions
- 440 x 196 x 44mm (17.4 x 7.7 x 1.7 in.)
- Weight
- 3.05kg (6.72 lbs.)
OVERVIEW
TRENDnet's 18-Port Gigabit High Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable ,high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and VoIP phone systems.
Gigabit Ports
Eighteen gigabit ports provide a 36Gbps switching capacity to support edge network installations.
Housing Design
Sturdy 19” rack mountable metal housing with included mounting brackets.
Housing Design
Provides 16 gigabit PoE+ ports, 2 shared gigabit ports (RJ-45 or SFP), a 36Gbps switching capacity, a built-in power supply, and rackmount brackets
High Power PoE Switch
Supplies up to 30W of PoE+ power per port with a total power budget of 440W
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
LED Indicators
LED indicators convey port status
