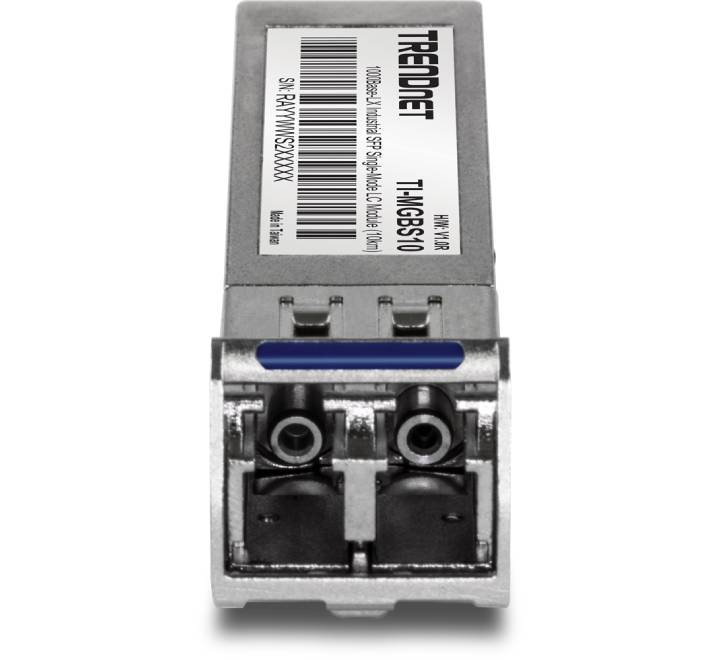

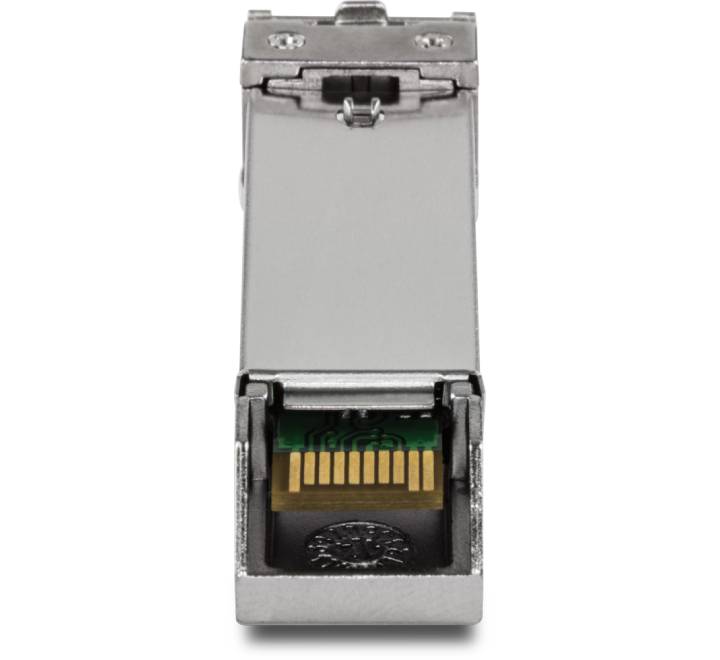

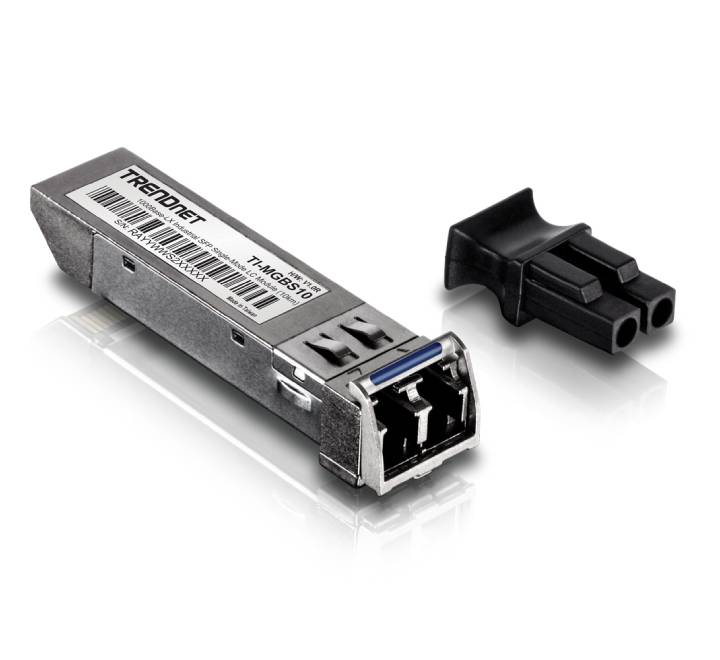

Trendnet 1000Base-LX Industrial SFP Single-Mode LC Module (10km) (TI-MGBS10)
- Brand: TRENDnet
- Model: TI-MGBS10
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- Wide operating temperature range of -40°– 85 °C (-40° – 185 °F)
- Supports data rates of up to 1.25Gbps
- Transmission distance of up to 10km (6.2 miles)
- Low Electromagnetic Interference (EMI) design
- Supports 1310nm single-mode network transmissions
- Duplex LC optical interface
- Low power consumption
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- Device Interface
- SFP MSA Compliant
- LC duplex connector
- Data Transfer Rate
- 1.25Gbps
- Wavelength
- 1310nm
- Optical Output Power
- -9 ~ -3 dBm
- Distance
- 10km (6.2 mi.)
- Special Features
- Hot pluggable
- Metal enclosure
- Sensitivity
- -23 dBm
- Power
- Consumption: 1W
- Dimensions
- 57 x 13 x 8.5 mm (2.2 x 0.5 x 0.3 in.)
OVERVIEW
The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).
Fiber Mode / Distance
Single-Mode transceiver spans distances up to 10km (6.2 miles) and supports up to 1.25Gbps.
Compatibility
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
Hot-Pluggable SFP
Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot
Fiber Wavelength
Compatible with single-mode 1310nm transmissions
Fiber Distance
Supports networking for distances up to 10km (6.2 miles)
Fiber Interface
LC-type duplex connector
Operating Temperature
Rated for an operating temperature range of -40°– 85 °C (-40° – 185 °F)
