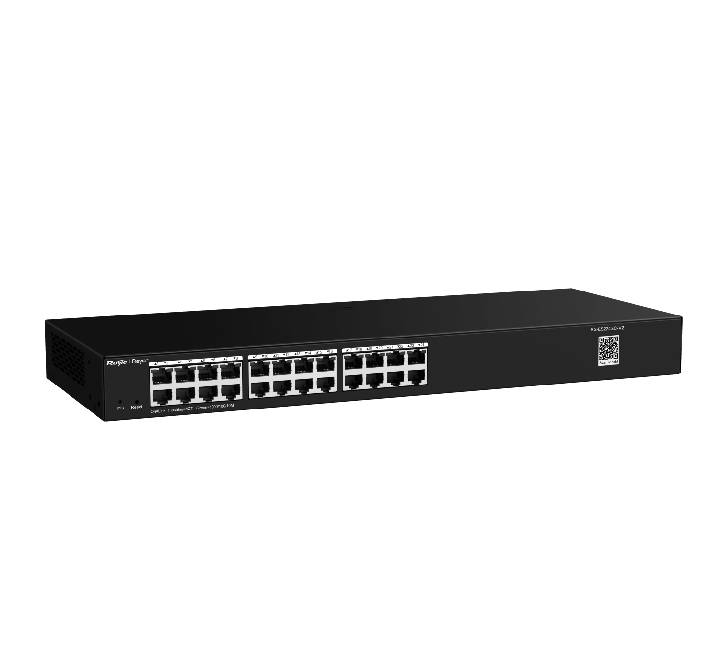

The Ruijie Reyee RG-ES224GC is an enterprise-grade, high-performance 24-port Gigabit Smart Cloud Managed Non-PoE Switch engineered specifically for small-to-medium businesses (SMBs), office access layouts, and modern IP CCTV network monitoring across Myanmar. With a robust switching capacity and zero-touch standalone deployment via the free Ruijie Cloud app, it offers unparalleled network visibility and uptime control without expensive configuration costs.
Key Features & Competitive Edge
- 24 Full Gigabit Access Ports: Equipped with 24 x 10/100/1000Base-T ports providing stable, non-blocking wirespeed data streaming up to 48 Gbps.
- Smart IP Camera & NVR Recognition: A uniquely tailored feature for security systems; automatically identifies connected CCTV equipment, optimizes streaming priority, and maps network topologies instantaneously.
- Automatic Loop Prevention & Network Continuity: Detects loop faults in real-time, shutting down the designated looping port automatically to safeguard the rest of your office network infrastructure from full outages.
- High-Tolerance Surge & Lightning Protection: Embedded 6kV port surge suppression shields the switch and network equipment from electrical variances common in Yangon, Mandalay, and rural areas.
- Flexible Non-Standard Cable Transmission: Intelligent design handles high-speed data transmission over standard Cat5/Cat5e/Cat6 as well as budget-friendly, non-standard copper-clad steel network wiring configurations.
- Lifetime Free Ruijie Cloud Management: Remotely review port usage, configure independent VLAN networks, check errors, or restart individual ports at any time using your smartphone or browser.
Why Choose Ruijie Reyee RG-ES224GC for Your Myanmar Business Network?
Modern commercial properties and retail fronts face significant connectivity hurdles—ranging from security footage lag to slow wireless office endpoints due to mixed network setups. The RG-ES224GC addresses this natively by providing smart, on-demand VLAN isolation configuration, segmenting sensitive administrative traffic from common public connections or dense video loads.
Its industrial-grade fanless layout allows the switch to operate completely silently inside office environments, retail outlets, or server racks. Meanwhile, the integrated real-time failure notification network architecture pushes instant fault diagnostics direct to your technical staff via mobile alerts whenever an IP camera or terminal goes offline.
Official Technical Specifications
| Parameter / Metric | Official Specifications |
|---|---|
| Brand / Manufacturer | Ruijie Networks / Reyee Series |
| Model Identifier | RG-ES224GC |
| Fixed Port Count | 24 x 10/100/1000Base-T Ports |
| PoE / PoE+ Support | Non-PoE (Data Transmission Only) |
| Switching Fabric Capacity | 48 Gbps (Non-blocking) |
| Packet Forwarding Rate | 35.71 Mpps |
| MAC Address Size | 8,000 (8K Entries) |
| Network Layer Capacity | Layer 2 (Smart Management Edition) |
| VLAN Limitations | Supports up to 16 maximum 802.1Q tagged VLAN partitions |
| Surge Protection Rating | 6 kV per network port |
| Cooling Framework | Fanless Natural Heat-Dissipation Enclosure |
| Device Form Factor | 19-inch 1U Rackmount / Desktop Placement (Metal Housing) |
| Physical Dimensions | 440 mm x 165 mm x 44 mm |
| Net Device Weight | Approximately 2.2 kg to 2.8 kg (including packaging kits) |
| Power Supply Input | Internal Power Supply Unit: 100 - 240V AC, 50/60Hz |
| Power Overhead (Max) | ≤ 13 Watts to 14 Watts |
| MTBF | > 200,000 continuous hours |
| Operating Thresholds | 0°C to 50°C Ambient Operating Temperature |
| Warranty Validation | 3-Year Limited Local Service Support Warranty |
Purchase and Fast Shipping Information
Get authentic Ruijie network hardware at competitive corporate prices from our online tech warehouse. We provide fast door-to-door delivery across Yangon Region, Mandalay Division, and fast highway terminal shipping options to all other states and divisions throughout Myanmar. All purchases come packed alongside standard 19" rack-mount accessories and brackets.
