Ubiquiti Rocket M2 airMAX BaseStation (RocketM2)

Ubiquiti Rocket M2 Airmax

• AirMax Omni is a Carrier Class omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios
• Rocket M combines the "brains" in one robust uni
• This seamless integration gi

  The Ubiquiti Rocket M2 is a rugged, high-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+ km) and breakthrough speed (150+ Mbps real TCPI/IP). The Rocket M2 is designed specifically for outdoor Point-to-Point (PtP) bridging and Point-to-MultiPoint (PtMP) airMAX base station applications.

  Engineered to withstand harsh environments, the Rocket M2 seamlessly integrates with airMAX Sector, RocketDish, Omni, and Yagi antennas. This "Plug and Play" integration allows for a flexible, carrier-class network infrastructure without the need for special tools.

  Key Features

  • airMAX Technology: Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots to eliminate hidden node collisions.
  • Incredible Performance: Supports speeds of up to 150+ Mbps real TCP/IP throughput.
  • Seamless Antenna Integration: Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket M2.
  • airOS Software: Includes advanced wireless settings, routing/bridging support, and system management tools.
  • Frequency Flexibility: Operates in the 2.4 GHz band, providing a balance between range and performance for long-distance links.

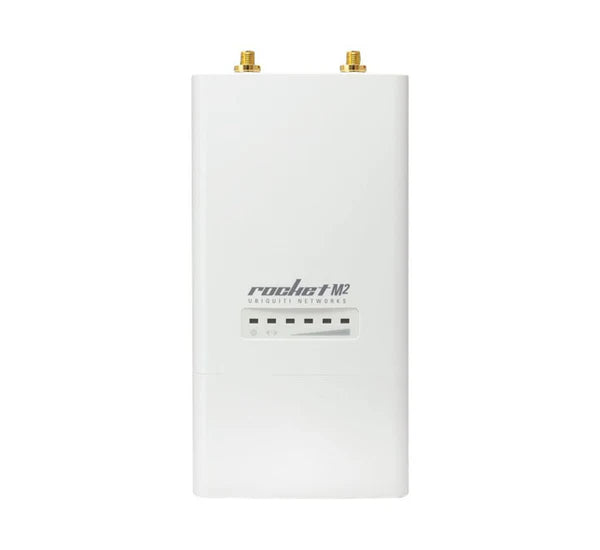

  • Industrial Durability: UV-stabilized plastic enclosure designed for extreme outdoor conditions.

  Ubiquiti Rocket M Series Overview

  Technical Specifications

  Processor	Atheros MIPS 24KC, 400 MHz
  Memory	64 MB SDRAM, 8 MB Flash
  Networking Interface	(1) 10/100 Ethernet Port

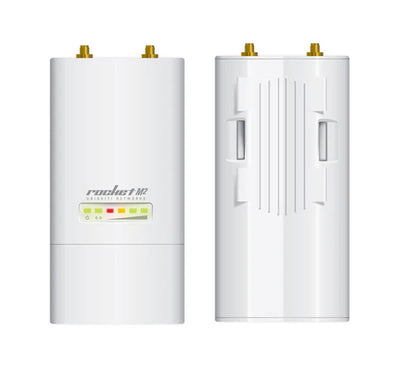

  RF Connectors	(2) RP-SMA (Waterproof)
  Max. Power Consumption	6.5W
  Power Supply	24V, 1A PoE Adapter (Included)
  Operating Frequency	2412 - 2462 MHz
  Dimensions	160 x 80 x 30 mm (6.3 x 3.15 x 1.18")
  Weight	0.5 kg (1.1 lb)

  ves network architects unparalleled flexibility and convenience
• AirMax Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class
• Seamless Rocket IntegrationIncludes:- Rocket M2- 24V PoE Adapter and Power Cord- Mount and mounting strap
• Wireless Type: ‎2.4 GHz Radio Frequency
• Brand: ‎Ubiquiti Networks
• Item model number: ‎ROCKETM2
• Item Weight: ‎11.2 ounces
• Product Dimensions: ‎0.5 x 0.5 x 0.5 inches
• Item Dimensions LxWxH: ‎0.5 x 0.5 x 0.5 inches
• Voltage: ‎24 Volts
• Manufacturer: ‎Ubiquiti Networks
• Warranty: 1 Year
