Ubiquiti airFiber X Antenna 5GHz 34dBi Slant 45 (AF-5G34-S45)

• Pre-Order Date : Lead time : 3 ~ 6 Months

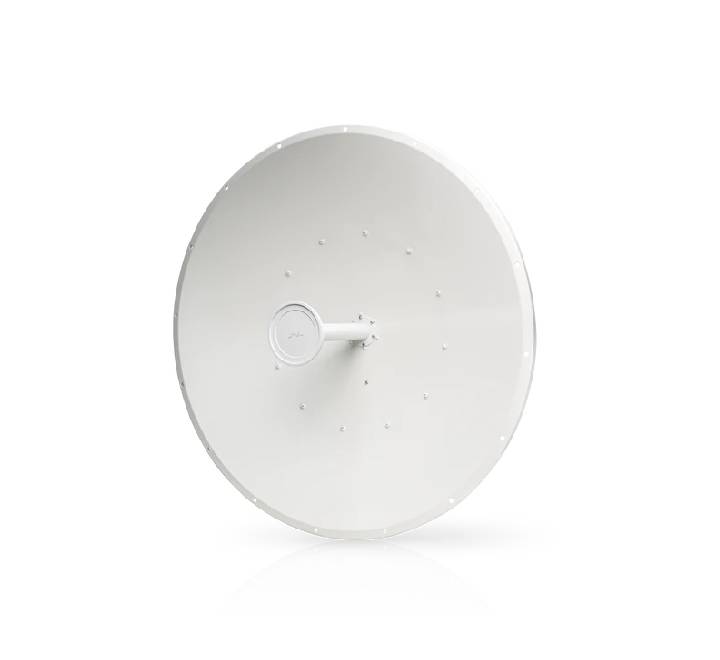

Deliver massive throughput over extreme distances with the Ubiquiti airFiber X Antenna 5GHz 34dBi Slant 45. Designed specifically to pair seamlessly with airFiber X carrier-class radios (such as the AF-5X and AF-5XHD), this heavy-duty high-gain reflector dish features an innovative industrial design that couples high-capacity performance with superior noise isolation.

Operating in the 5.1 to 5.8 GHz frequency range, the AF-5G34-S45 utilizes revolutionary **Slant 45 polarization** to dramatically mitigate environmental interference and cross-polarization degradation in congested RF areas. Featuring a massive 34 dBi gain, robust construction, and high wind-load survivability, it is the definitive solution for long-haul Internet Service Provider (ISP) backhauls and high-capacity corporate network bridges.

Key Features

• Carrier-Class Long-Range Performance: Operates efficiently across the 5.1–5.8 GHz spectrum to establish ultra-long distance point-to-point (PtP) wireless links.
• Massive 34 dBi Gain: High-gain reflector design focuses RF energy tightly to punch through long distances and difficult environmental obstructions.
• Slant 45 Polarization: Employs dual-linear Slant 45 technology to maximize signal-to-noise ratio (SNR) in high-interference co-location deployments.

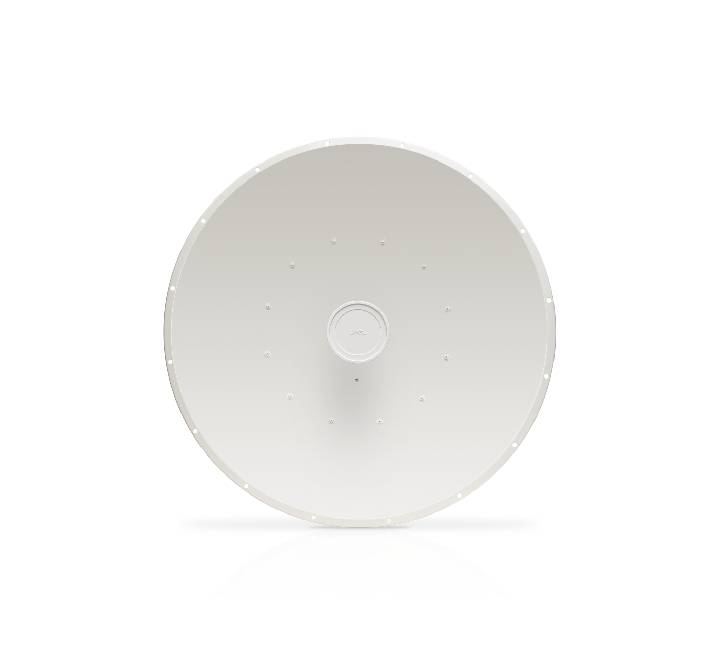

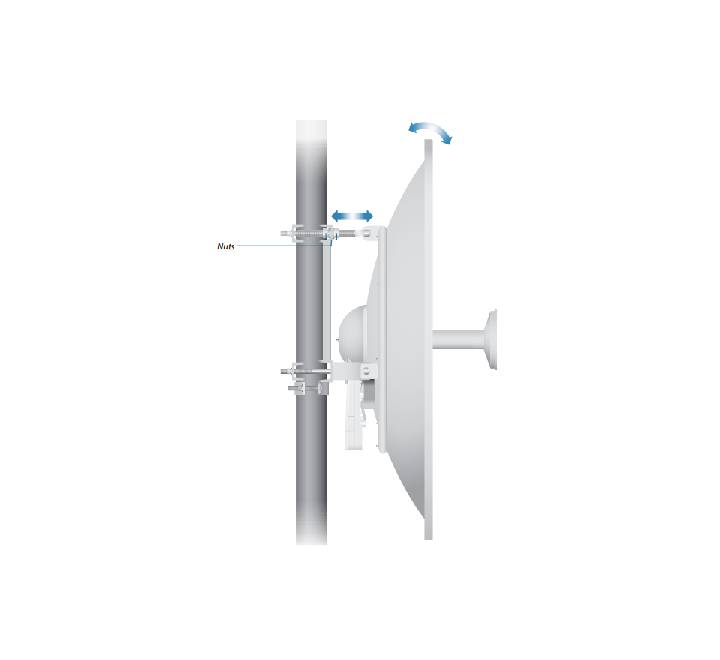

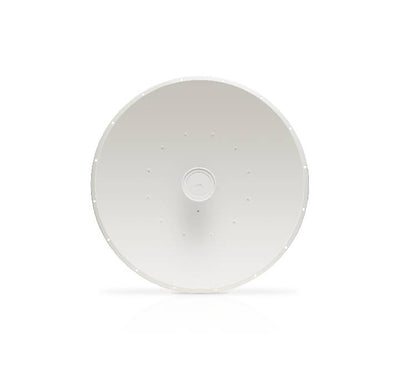

• Seamless AirFiber Integration: Includes a custom-molded integrated radio bracket and weatherproof RF jumpers for tool-free, direct plug-and-play installation with airFiber X radios.
• Rugged Weatherproof Construction: Built with industrial-grade materials, a protective radome/shroud option, and a wind survivability rating of up to 125 mph (200 km/h).
• High Front-to-Back Ratio: Features a 42 dB F/B ratio to effectively block unwanted background noise from the rear sides.

Technical Specifications

Product Overview & Performance Review
