Ubiquiti airFiber 5XHD 5GHz PTP LTU Carrier Radio (AF-5XHD)

• Pre-Order : Estimated Lead Time :  6 ~ 12 Weeks.

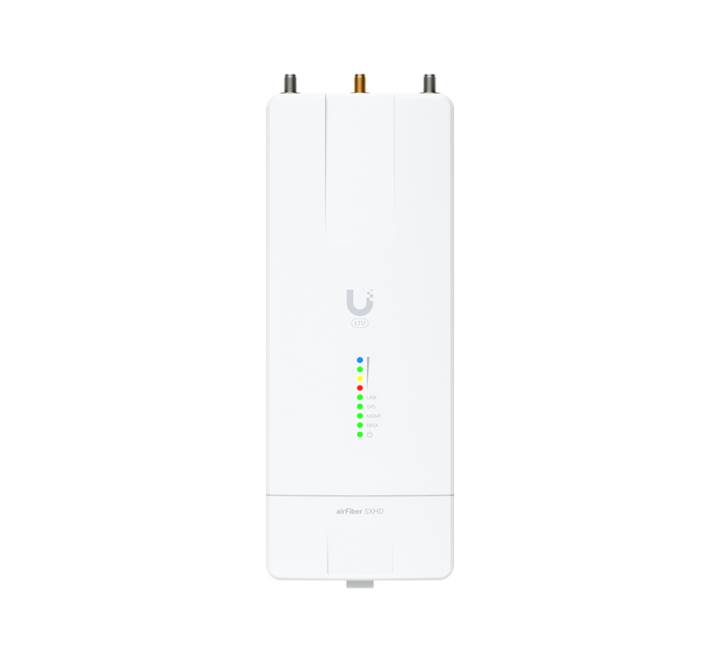

The Ubiquiti airFiber 5XHD (AF-5XHD) is a premier 5 GHz Point-to-Point (PtP) carrier radio engineered from the ground up for Wireless ISPs (WISPs). Featuring Ubiquiti’s proprietary LTU custom silicon technology, this backhaul radio breaks through the limitations of standard 802.11 Wi-Fi chips to deliver unprecedented noise resilience, ultra-low latency, and massive spectral efficiency. Pair it with an airFiber X antenna or RocketDish™ antenna to establish high-capacity, long-distance wireless bridges spanning up to 100+ km.

Key Features & Advanced Technologies

• AirFiber 5XHD 1Gbps+ PTP Radio with LTU Technology
• Proprietary LTU Custom Silicon: Overcomes generic Wi-Fi chip limitations to handle 2+ million packets per second with advanced RF components.
• 1+ Gbps Real Throughput: Achieves unmatched performance using 10.6 bps/Hz spectral efficiency and up to 1024QAM modulation.
• Extreme Range (xRT™ Technology): Offers robust, stable connectivity for long-range backbone infrastructure over distances of 100+ km.
• Precise GPS Synchronization: Mitigates co-location interference seamlessly, enabling multiple radios to operate on a single tower without performance degradation.
• Flexibility in Unlicensed Bands: Supports split transmit/receive frequencies and wide channel widths (10/20/30/40/50/60/80/100 MHz) to navigate crowded spectrums.
• Industrial-Grade Build: Ships with an IP67 upgrade kit for enhanced protection against dust, water, and harsh weather elements.
• Dual Redundant PoE Ports: Dual Gigabit Ethernet ports can be utilized to set up redundant power lines for ultimate network uptime.

Technical Specifications
