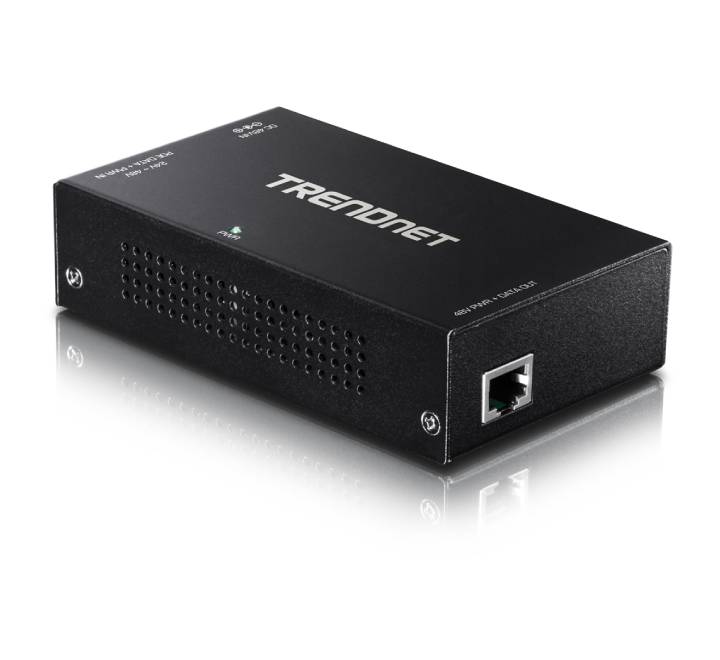

TRENDnet Gigabit PoE+ Extender Amplifier Inline Repeater (TPE-E110)

High-Efficiency Gigabit Extension and Power Amplification for Long-Range PoE Networks

The TRENDnet Gigabit PoE+ Extender / Amplifier (TPE-E110) provides an intelligent, commercial-grade infrastructure solution designed to effortlessly expand network nodes past the standard 100-meter (328-foot) structural limitations of traditional copper Ethernet wiring. Ideal for multi-node IP security systems, remote high-power wireless access arrays, and expansive facility edge hardware deployments, this flexible line-booster ensures high-speed gigabit data and power travel further without packet loss or signal degradation.

Housed in a ruggedized, wall-mountable metal protective enclosure, the TPE-E110 operates as a highly versatile network asset. It can run purely on standard inline PoE power extracted from your primary upstream equipment, or it can be supplemented via its auxiliary power port for targeted voltage reinforcement on long runs. By auto-sensing downstream device profiles, it seamlessly amplifies and passes through standard PoE (15.4W) or high-capacity PoE+ (30W) loads while supporting extensive multi-unit cascading to span large coverage areas.

Key Product Features

• Continuous 100-Meter Signal Regeneration: Extends an incoming network drop an additional 100 meters (328 feet) for an immediate double-distance deployment radius.
• Scalable Multi-Unit Cascading: Supports daisy-chaining multiple inline extenders in series to safely scale out local infrastructure boundaries across multi-hundred-meter coverage tracks.

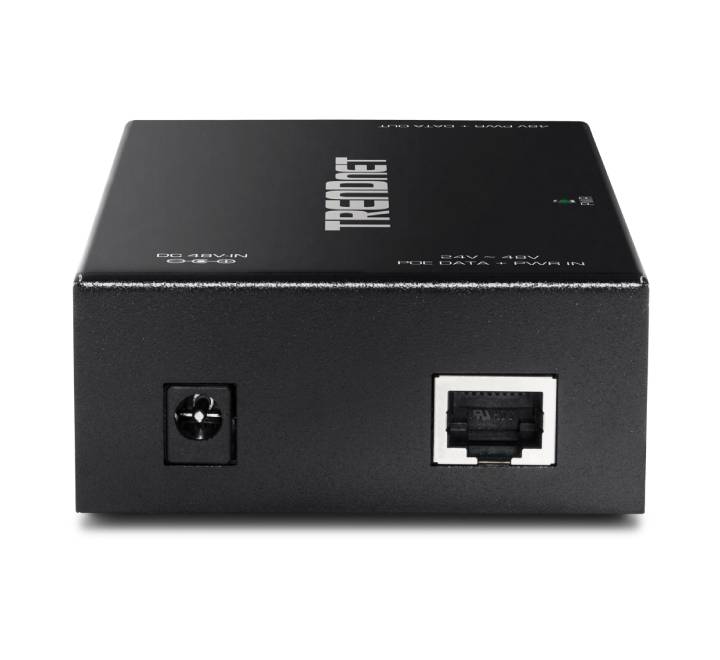

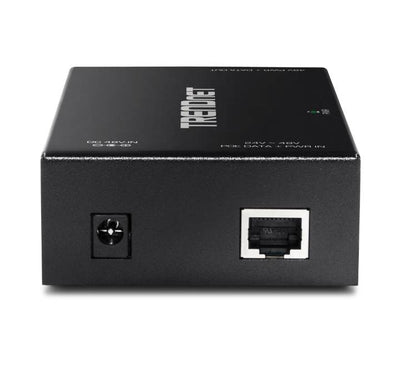

• Dual-Mode Power Flexibility: Runs natively via power-over-ethernet line currents or accepts an optional auxiliary external power supply injection to boost downstream power budgets.
• Intelligent Auto-Sensing Delivery: Built-in internal processing circuitry detects and outputs the exact required wattage parameters for IEEE 802.3af (15.4W) or 802.3at (30W) target hardware.
• Wire-Speed Non-Blocking Throughput: Built with dedicated full-duplex Gigabit ports to handle intense network loads, such as high-definition PTZ camera streams, with zero latency.

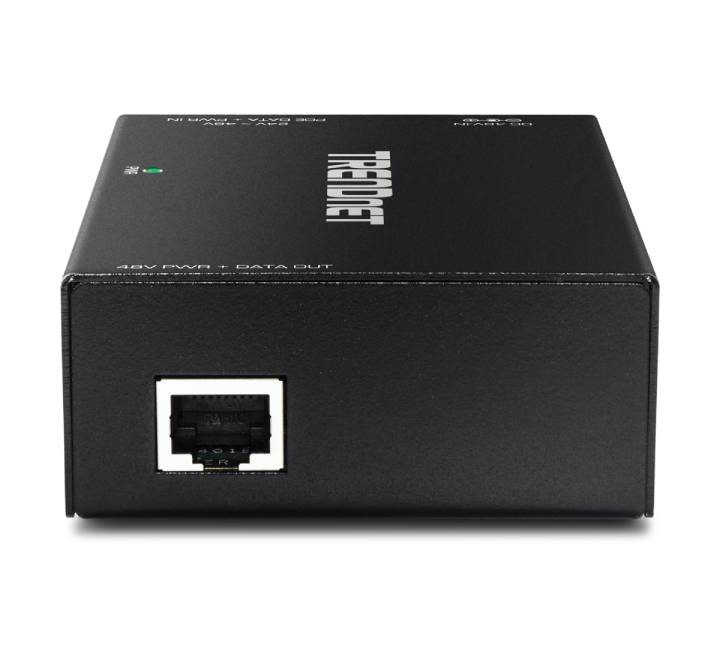

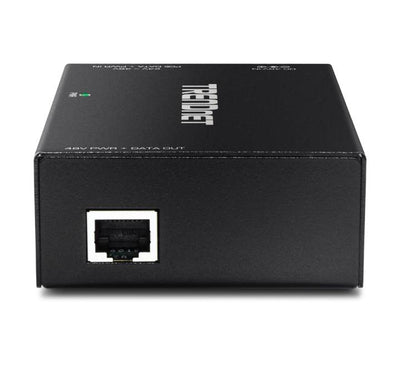

• Industrial-Grade Steel Housing: Encased in a durable metal chassis featuring pre-drilled surface-mounting flanges for quick, highly stable installations on backboards, walls, or enclosures.

Technical Specifications
