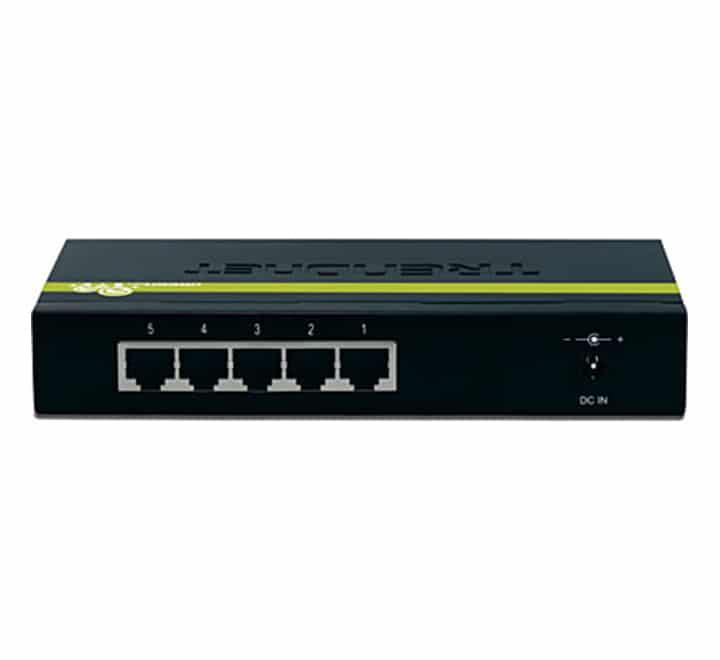

TRENDnet TEG-S50g 5-Port Gigabit GREENnet Mini Switch

The TRENDnet TEG-S50g is a high-performance 5-Port Gigabit GREENnet Mini Switch designed to deliver reliable, high-bandwidth connectivity in an ultra-compact package. Engineered with 5 Gigabit Auto-Negotiation ports, this unmanaged plug-and-play switch allows you to instantly expand your high-speed wired network, eliminating congestion and smoothly managing data traffic with a total switching capacity of 10 Gbps.

Housed in a rugged, pocket-sized metal enclosure, the TEG-S50g is flexible enough to blend seamlessly into a minimalist desktop workspace or be mounted directly to the wall. Its advanced fanless architecture ensures completely silent 0dB operation, making it perfect for home offices, classrooms, and noise-sensitive working environments where distractions must be kept to an absolute minimum.

Key Features

• GREENnet Power Savings: Built-in eco-smart technology automatically cuts energy consumption by up to 70% by dynamically tweaking power allocation based on active port link status and cable length.
• 5 Gigabit Ports: Features 5 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports supporting full-duplex networking speeds up to 2000 Mbps.
• Ultra-Compact Metal Chassis: Exceptionally small, space-saving design fits into the palm of your hand, protected by a durable heavy-duty metal casing.
• Fanless Operation: Completely silent, zero-noise cooling layout preserves a peaceful work environment while efficiently dissipating operational heat.
• Wall Mountable Design: Offers dual-purpose deployment flexibility for quick desktop arrangement or clean, discrete wall installations.
• Jumbo Frame Support: Boosts overall throughput performance by allowing the transfer of larger packets, or Jumbo Frames, up to 9 KB.

Technical Specifications

Attribute	Specification Details
Device Interfaces	5 x 10/100/1000 Mbps Auto-MDIX RJ-45 Ports Front Panel Diagnostic LED Matrix
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az (Energy Efficient Ethernet)
Switch Fabric Capacity	10 Gbps non-blocking line rate performance
Performance Metrics	RAM Buffer: 128 KB MAC Address Table: 2K entries Forwarding Rate: 7.44 Mpps (based on 64-byte packets) Jumbo Frames: Up to 9 KB packages
Power Adapter	Input: External AC adapter 100 – 240V AC, 50/60 Hz Output: 5V DC, 1A Max Power Consumption: 2.06 Watts
Hardware Topology	CSMA/CD, Star configuration, Store-and-Forward architecture
Acoustics & Chassis	Chassis: Lightweight, robust structural metal enclosure Noise Level: 0 dB (Completely fanless operation)
Environmental Factors	Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -10° to 70°C (14° to 158°F) Operating Humidity: Max 90% non-condensing
Dimensions & Weight	82.5 x 46.8 x 24 mm (3.24 x 1.84 x 0.9 in.) 112 g (0.24 lbs.)
Compliance & Certs	CE, FCC, LVD, TAA + NDAA Compliant
