Product details
Description

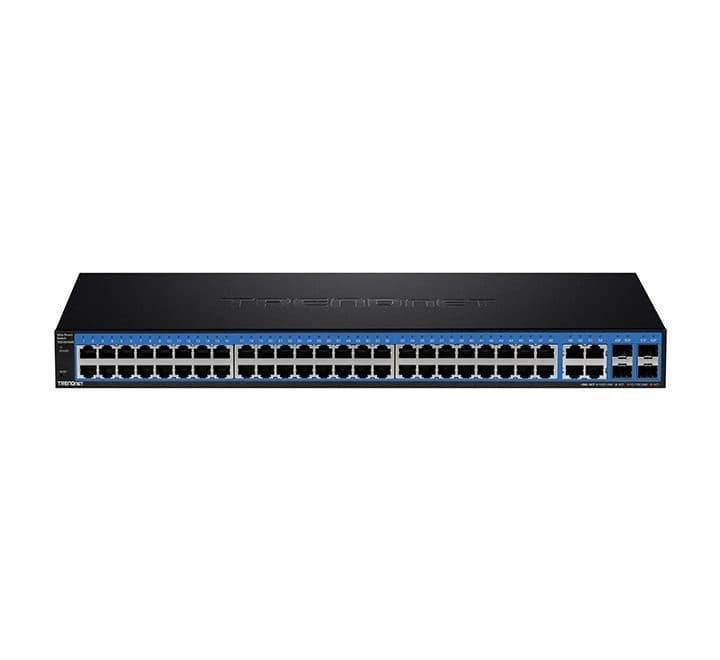

Scale your enterprise network backbone and reinforce security protocols with the high-density TRENDnet 52-Port Gigabit Web Smart Switch (Model TEG-524WS). Designed as a powerful control center for expanding businesses, SMBs, and distributed enterprise networks, this 1U rack-mountable switch delivers cost-effective management features with uncompromised throughput. Equipped with 48 dedicated Gigabit Ethernet ports and 4 shared Gigabit SFP slots, the TEG-524WS provides the physical connection flexibility needed to support workstation arrays, server stacks, and high-speed fiber uplinks simultaneously.
The TEG-524WS features an intuitive web-based browser interface that simplifies network configuration and maintenance. Network administrators can easily segment corporate data traffic using advanced VLAN architectures (including 802.1Q, Dynamic GVRP, and Asymmetric VLAN), optimize voice/video priority via Quality of Service (QoS) controls, and safeguard ports with advanced Access Control Lists (ACL) and 802.1X authentication. With a massive 104Gbps switching capacity and integrated loopback detection, this intelligent Web Smart switch eliminates infrastructure bottlenecks while ensuring maximum network uptime and architectural stability.
Key Features
- High-Density Port Layout: Features 48 x Gigabit Ethernet ports and 4 x Shared Gigabit SFP slots for long-range fiber uplink configurations.
- 104Gbps Switching Capacity: Delivers full wire-speed forwarding rates to handle data-heavy corporate traffic without internal packet loss or delay.
- Advanced Web Smart Management: Simplifies setup via an easy-to-use graphic interface for tracking Link Aggregation, VLAN configurations, and port mirrors.
- Traffic Optimization & QoS: Controls bandwidth paths cleanly using 802.1p Quality of Service priority queues, IGMP Snooping, and Rate Limiting mechanics.
- Comprehensive Security Controls: Hardens the network perimeter with 802.1X Port-Based Authentication, IP-MAC-Port Binding, and static Access Control Lists (ACL).
- Resilient Network Protection: Prevents broadcast storms and accidental configuration loops with integrated Loopback Detection and Spanning Tree (STP/RSTP) support.
- 1U Rack-Ready Metal Frame: Standard 19-inch 1U industrial steel enclosure fits seamlessly into server cages and network racks (rackmount kit included).
Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Model Number | TEG-524WS |
| Hardware Interfaces | 48 x Gigabit Ethernet Ports (10/100/1000Mbps) 4 x Shared SFP Slots (100/1000Mbps) |
| Performance Metrics | Switching Capacity: 104Gbps RAM Packet Buffer: 1.5MB MAC Address Table: 16K Entries |
| VLAN Segmentation | 802.1Q Tagged VLAN, Dynamic GVRP, Asymmetric VLAN, up to 256 VLAN groups |
| Quality of Service (QoS) | 802.1p CoS, DSCP, Queue Scheduling (Strict Priority, WRR) |
| Link Aggregation | 802.3ad LACP (Up to 8 groups, max. 8 ports per group) |
| Management Options | Web Browser (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, Port Mirroring, IPv4/IPv6 Dual Stack |
| Power Profile & Draw | Internal universal power supply (100-240V AC, 50/60Hz) Max. Power Consumption: 36.5 Watts |
| Enclosure & Cooling | 19-inch 1U metal rackmount housing with 2 built-in smart cooling fans |
| Dimensions & Weight | 440 x 250 x 44 mm (17.3 x 9.8 x 1.74 inches) | 3.86 kg (8.5 lbs.) |
| Compliance Approvals | CE, FCC, RoHS, TAA & NDAA Compliant |
| Manufacturer Warranty | 1 Year |
FAQs
What ports does the TRENDnet TEG-524WS have?
48 Gigabit ports and 4 shared Gigabit SFP slots.
How do I manage it?
Through a web interface, with VLANs, QoS, LACP, ACLs and 802.1X.
Is it rack mountable?
Yes. It is 1U, with 104 Gbps switching capacity.
