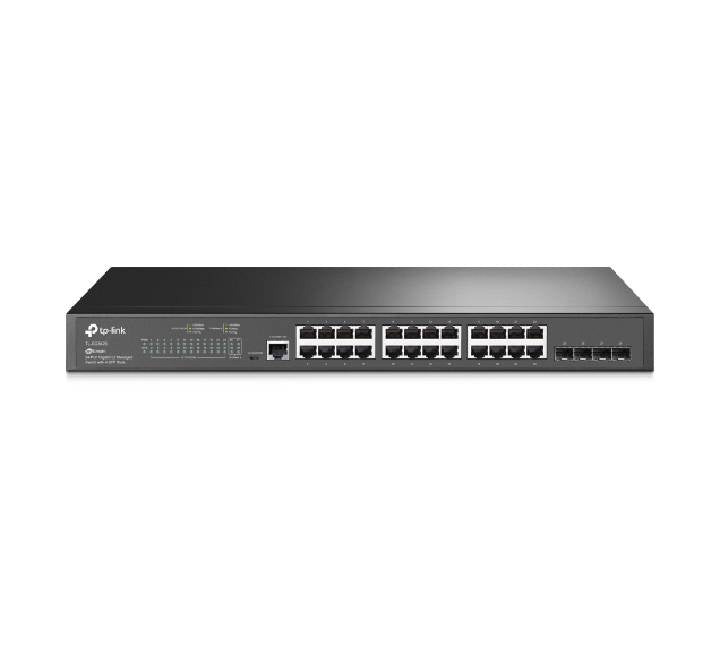

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Upgrade your enterprise or SMB network infrastructure with the high-performance TP-Link TL-SG3428 JetStream Managed Switch. Equipped with 24 full Gigabit RJ45 Ethernet ports and 4 high-speed SFP slots for fiber uplinks, this rackmountable Layer 2+ switch delivers massive bandwidth, reliable data transmission, and flexible connectivity for growing business networks.

Seamlessly integrated into the Omada Software Defined Networking (SDN) ecosystem, the TL-SG3428 supports centralized cloud management, zero-touch provisioning, and remote control via the Omada app. Featuring advanced L2+ functions such as Static Routing, 802.1Q VLAN, IGMP Snooping, and robust enterprise-grade security protocols, it provides maximum network stability and traffic efficiency.

Key Features

• Full Gigabit Connections: 24× Gigabit RJ45 ports provide ultra-fast speeds for servers, workstations, and IP surveillance cameras.

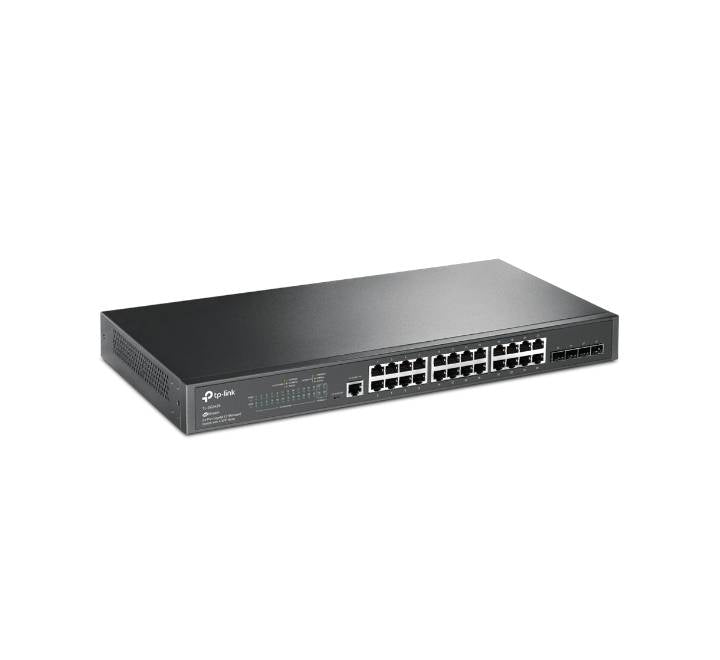

• 4× Gigabit SFP Fiber Uplinks: Dedicated SFP slots allow long-distance, high-bandwidth fiber connections to core switches or network backbones.
• Centralized Cloud Management: Integrated into Omada SDN for zero-touch provisioning, cloud portal management, and real-time monitoring via the web or Omada app.
• Advanced L2+ Features: Supports Static Routing, L2/L3/L4 QoS, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, and Link Aggregation Control Protocol (LACP).
• Enterprise-Grade Security Strategies: Protects network traffic using IP-MAC-Port Binding, ACL (Access Control Lists), Port Security, DoS Defend, Storm Control, and 802.1X Authentication.
• Optimized Voice & Video Traffic: L2/L3/L4 QoS and IGMP Snooping optimize voice (VoIP) and video streams to eliminate lag and network congestion.
• Standalone Management Options: Manage via Web UI, CLI (Console Port, Telnet, SSH), SNMP (v1/v2c/v3), and RMON.

Technical Specifications

Category	Specification
Model Name	TL-SG3428
Product Series	TP-Link JetStream / Omada SDN
Interface Ports	24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	8K Entries
Packet Buffer Memory	4.1 Mbit
Layer 2+ Features	Static Routing, 802.1Q VLAN, Port Isolation, STP/RSTP/MSTP, Link Aggregation, IGMP Snooping
Quality of Service (QoS)	8 Priority Queues, 802.1p CoS/DSCP Priority, Strict Priority (SP), Weighted Round Robin (WRR)
Centralized Management	Omada Hardware Controller, Omada Software Controller, Omada Cloud-Based Controller
Power Supply	100-240V AC, 50/60Hz Internal Power Supply

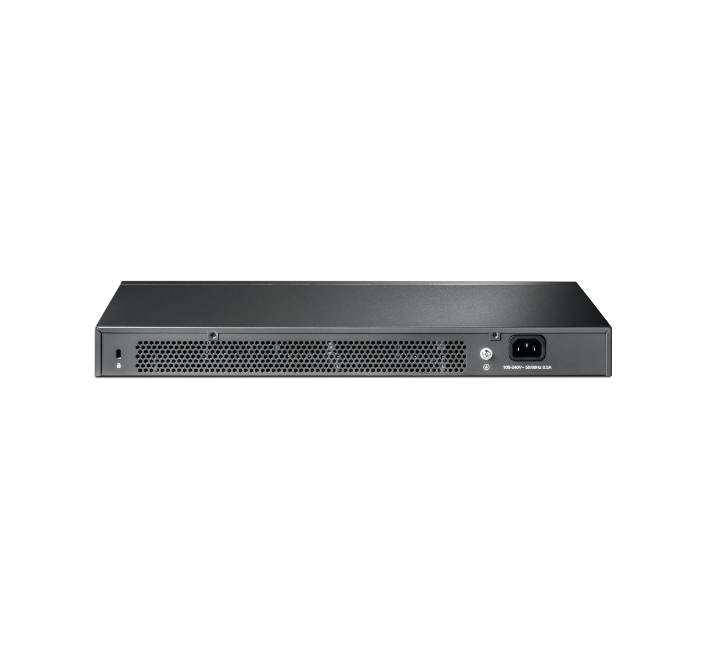

Form Factor	19-inch 1U Rackmountable Steel Casing
