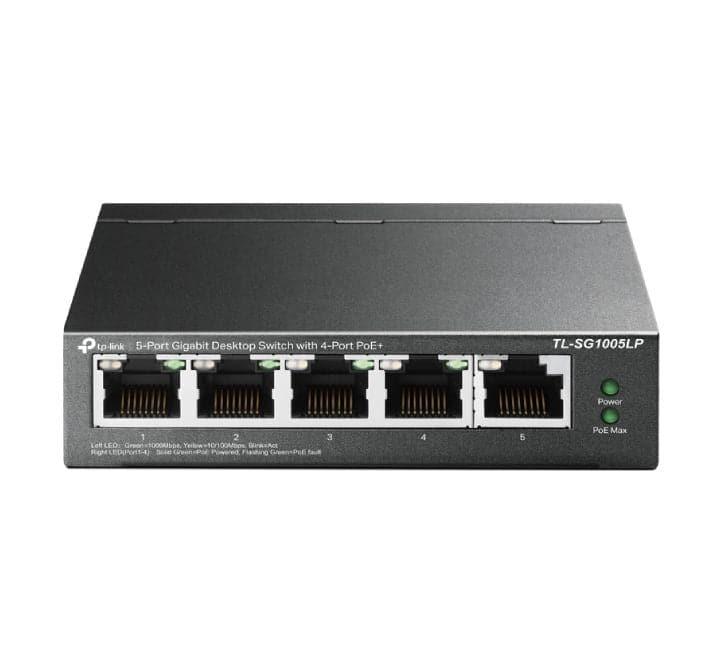

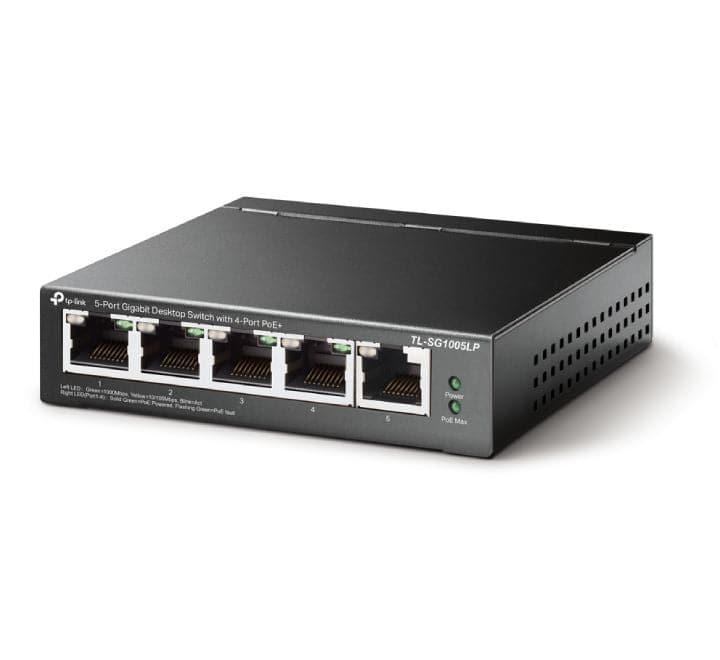

TP-Link TL-SG1005LP 5-Port Gigabit Desktop PoE Switch With 4-Port PoE+

Streamline your small business or home office network infrastructure with the TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch. Engineered specifically for seamless surveillance, VoIP setups, and access point expansions, this professional unmanaged switch combines blazing-fast gigabit data speeds with robust Power over Ethernet (PoE+) capabilities—transmitting data and electrical power over a single ethernet cable.

Key Features

• High-Speed Gigabit Connectivity: Features 5× 10/100/1000 Mbps auto-negotiation RJ45 ports that drastically increase your network capacity for lightning-fast file transfers.
• Dedicated 4-Port PoE+ Supply: Four of the five ports (Ports 1 to 4) support the IEEE 802.3af/at standard, delivering up to 30W of power per port with a highly efficient 40W total PoE power budget.
• Intelligent Power Management: If total network power consumption exceeds the 40W budget, the switch automatically cuts power to the lowest-priority port to prevent overloading and keep critical devices safe.
• Advanced Traffic Optimization: Built-in 802.1p/DSCP QoS enables smooth, latency-sensitive traffic for voice and video conference calls, while IGMP Snooping optimizes multicast data applications like IP surveillance streams.
• Durable, Fanless Design: Housed in a premium, high-quality metal casing with a fanless architecture. Enjoy completely silent operations in quiet offices, bedrooms, or shared workspaces.
• True Plug and Play: Requires no complicated configurations, technical software, or installations—simply plug it in, connect your hardware, and get to work.

Technical Specifications

Specification Type	Details
Interface	5× 10/100/1000Mbps RJ45 Ports (AUTO Negotiation / AUTO MDI/MDIX)
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Total PoE Power Budget: 40 W
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.44 Mpps
Mac Address Table	2K (Auto-Learning and Auto-Aging)
Jumbo Frame	16 KB
Fan Quantity	Fanless (Silent Operation)
Advanced Features	IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, Intelligent Power Priority
Max Power Consumption	4.12 W (no device connected) 47.5 W (with 40 W PoE device connected)
Dimensions (W x D x H)	3.9 × 3.9 × 1.0 inches (99.8 × 98 × 25 mm)
