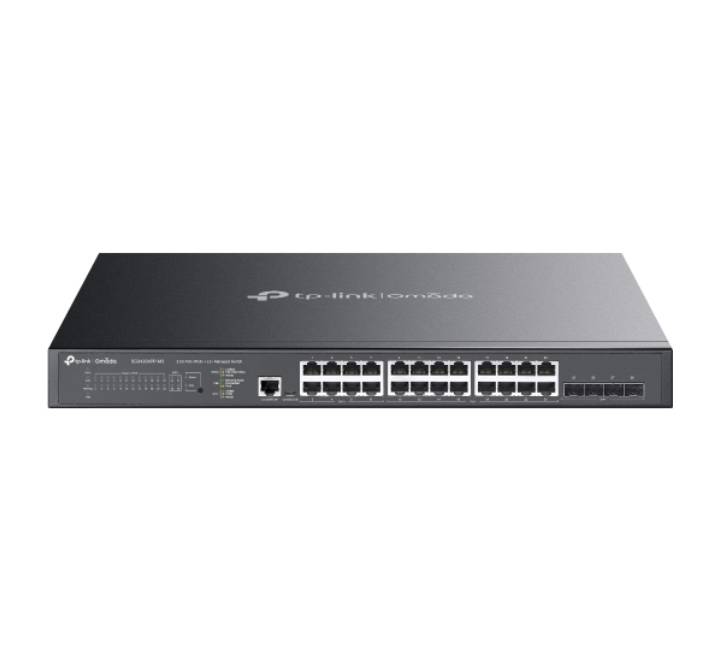

TP-Link Omada SG3428XPP-M2 24-Port 2.5G Multi-Gigabit L2+ Managed PoE++ Switch

Unleash the full potential of next-generation Wi-Fi 7 access points and high-performance devices with the TP-Link Omada SG3428XPP-M2 24-Port 2.5G Multi-Gigabit L2+ Managed PoE++ Switch. Engineered with multi-gigabit ports and an enormous 500W total PoE budget—including support for 802.3bt PoE++ up to 75W on select ports—this enterprise-grade switch delivers high-speed data transmission, robust routing, and centralized cloud management via the Omada SDN platform.

Key Features

• 24 Multi-Gigabit Ports: Equipped with 16× 2.5 Gbps PoE+ ports and 8× 2.5 Gbps PoE++ / PoE+ ports to eliminate network bottlenecks on high-speed client devices.
• Massive 500W PoE Budget: Features 4× 802.3bt/at/af PoE++ ports (up to 75W per port) and 20× 802.3at/af PoE+ ports (up to 30W per port) to effortlessly power power-hungry PTZ cameras, Wi-Fi 7 APs, and VoIP systems.

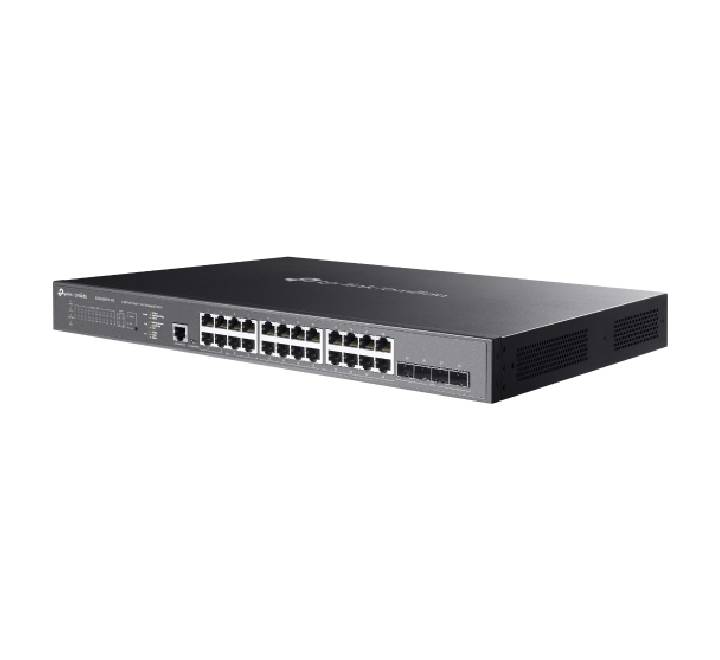

• 10G Ultra-Fast Uplinks: Includes 4× dedicated 10Gbps SFP+ slots for high-bandwidth fiber backbones and core switching integration.
• Omada SDN Integration: Centralized cloud management, Zero-Touch Provisioning (ZTP), and remote intelligent monitoring through the Omada app or web interface.
• Advanced L2+ Features: Supports static routing to help route internal traffic efficiently across different subnets.
• Enterprise-Grade Security: Protects your network infrastructure with IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS Defense, and 802.1X authentication.
• Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Technical Specifications
