TP-Link MC211CS-2 Omada Gigabit WDM Media Converter

The TP-Link Omada MC211CS-2 is a commercial-grade Gigabit WDM Media Converter engineered to seamlessly convert electrical Ethernet signals into optical fiber signals and vice versa. By utilizing advanced Wave Division Multiplexing (WDM) technology, it transmits and receives data over a single strand of single-mode fiber, cutting cable deployment costs in half. It is an ideal, high-performance solution for long-distance business networking, campus connectivity, and large-scale IP camera surveillance setups.

Key Features & Performance Benefits

• Single-Strand WDM Efficiency: Uses Wave Division Multiplexing to transmit and receive data on one single fiber core, reducing fiber infrastructure costs.
• Long-Distance Extension: Expands your copper-based network topology across single-mode fiber infrastructure up to distances of 2 km (1.2 miles).
• Gigabit Wire-Speed Connectivity: Equipped with 1× 10/100/1000Mbps Auto-Negotiation RJ45 Port (supporting Auto-MDI/MDIX) and 1× Gigabit SC/UPC Fiber Port.
• Intelligent Auto-Negotiation: Automatically configures Half-Duplex/Full-Duplex transfer modes for hassle-free network integration.
• Plug and Play Deployment: No software configuration or drivers required. Real-time diagnostic LED indicators (PWR, Link/Act) provide immediate network health monitoring.
• Compact Metal Chassis: Durable, industrial-grade build quality suitable for desktop layout or integration into standard rackmount frames.

Official Setup & Configuration Overview

See how TP-Link Omada fiber media converters work and how easily they integrate into enterprise network topologies:

Technical Specifications

Category	Specification Details
Network Standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

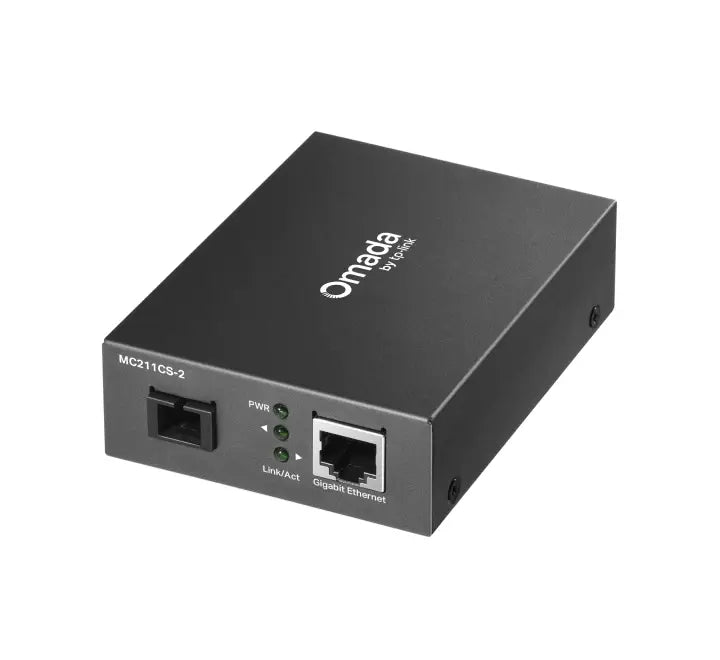

Hardware Interfaces	• 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Optical Wavelength	1550 nm TX (Transmit) / 1310 nm RX (Receive)
Fiber Type Support	Single-mode Fiber (up to 2 km max distance)
Power Supply	External Power Adapter: 9 V / 0.6 A
LED Indicators	PWR (Power), Link/Act (Activity status)
Dimensions (W x D x H)	94.5 × 73 × 27 mm (37.2 × 28.7 × 10.6 in)
Environmental Limits	Operating Temp: -5°C to 50°C (23°F to 122°F) Operating Humidity: 10% to 90% RH non-condensing
Package Contents	1× Media Converter MC211CS-2, 1× Power Adapter, 1× Quick Installation Guide
