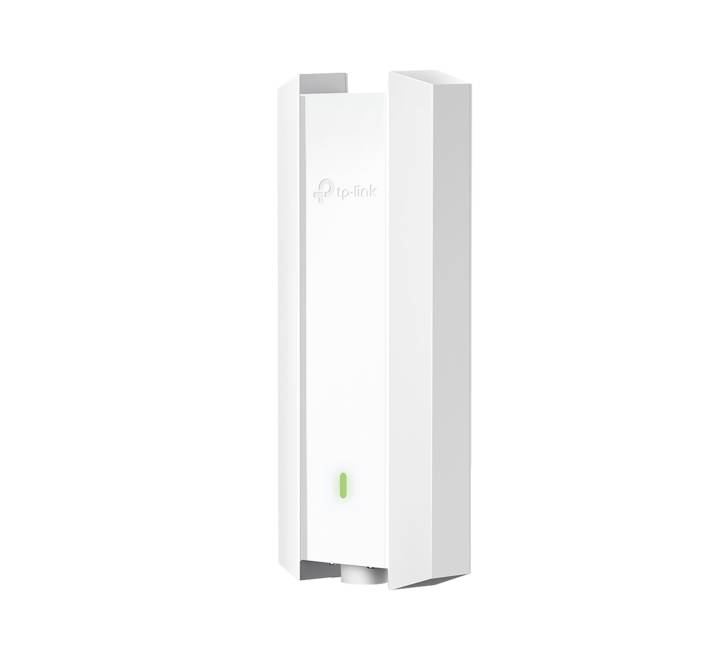

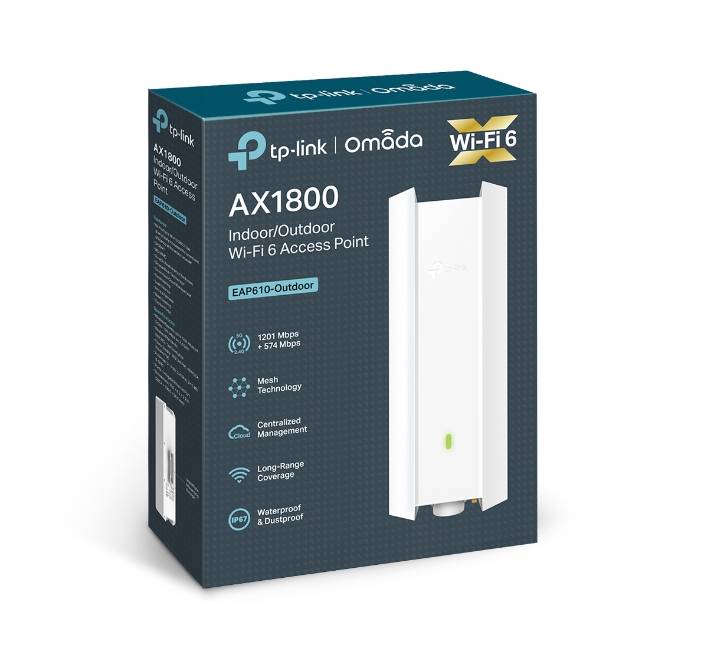

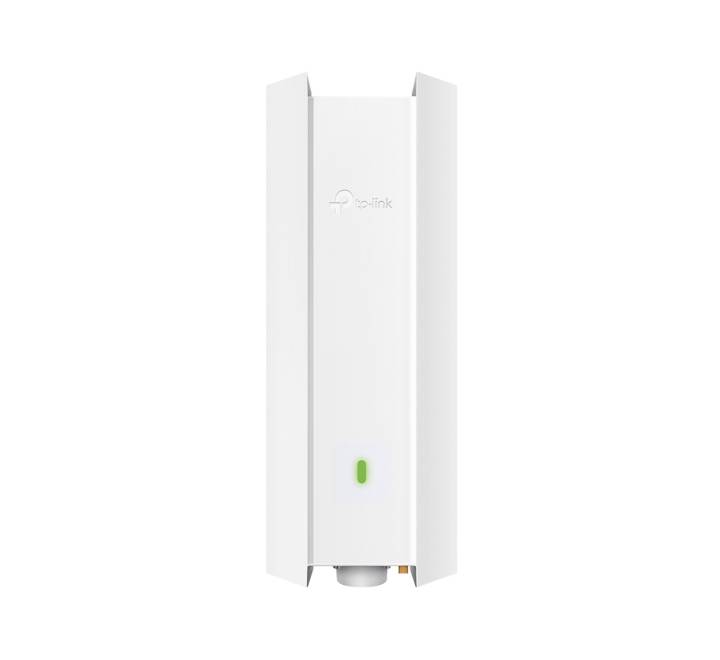

TP-Link Omada EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point

Deliver ultra-fast, long-range Wi-Fi 6 coverage to outdoor environments with the TP-Link Omada EAP610-Outdoor AX1800 WiFi 6 Access Point. Engineered to handle high-density outdoor demands, it delivers dual-band speeds up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). Powered by OFDMA and MU-MIMO technologies, it provides continuous, reliable connectivity for yards, outdoor dining areas, pools, farms, and parking lots.

Built with an IP67 weatherproof housing, the EAP610-Outdoor resists extreme weather, dust, and rain. It integrates seamlessly into the Omada Software Defined Networking (SDN) platform for centralized cloud management, support for Omada Mesh technology, and 802.11k/v Fast Roaming for uninterrupted video streams and VoIP calls as users move around.

Key Features

• Dual-Band WiFi 6 Speeds: Delivers dual-band speeds up to 1800 Mbps (574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz).
• IP67 Weatherproof Enclosure: Industrial-grade weatherproof casing protects internal components against harsh outdoor conditions, dust, and heavy rain.
• Long-Range High-Power Coverage: High-power amplifiers and smart antennas deliver long-range coverage across large open areas.
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment without running extra cables.
• Seamless Roaming: Supports 802.11k/v fast roaming so mobile devices automatically switch to the strongest signal when moving between access points.
• Flexible PoE Powering: Supports active 802.3at PoE and Passive PoE (adapter included in package) for easy single-cable installation.
• Centralized Cloud Management: Integrates into the Omada SDN platform for remote management via cloud web GUI or the Omada app.

Technical Specifications

Hardware Features
Model	EAP610-Outdoor
Interface	1× Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE & 48V Passive PoE)
Button	Reset
Power Supply	802.3at PoE or 48V Passive PoE (PoE Adapter Included)
Weatherproof Rating	IP67 Weatherproof / Dustproof Housing
Antennas	Internal Omni Antennas (2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi)
Mounting Options	Pole / Wall Mounting (Kits Included)
Wireless Features
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Signal Rate	5 GHz: Up to 1201 Mbps | 2.4 GHz: Up to 574 Mbps
Wireless Functions	16 SSIDs, Seamless Roaming, Omada Mesh, OFDMA, MU-MIMO, Band Steering, Airtime Fairness
Wireless Security	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
