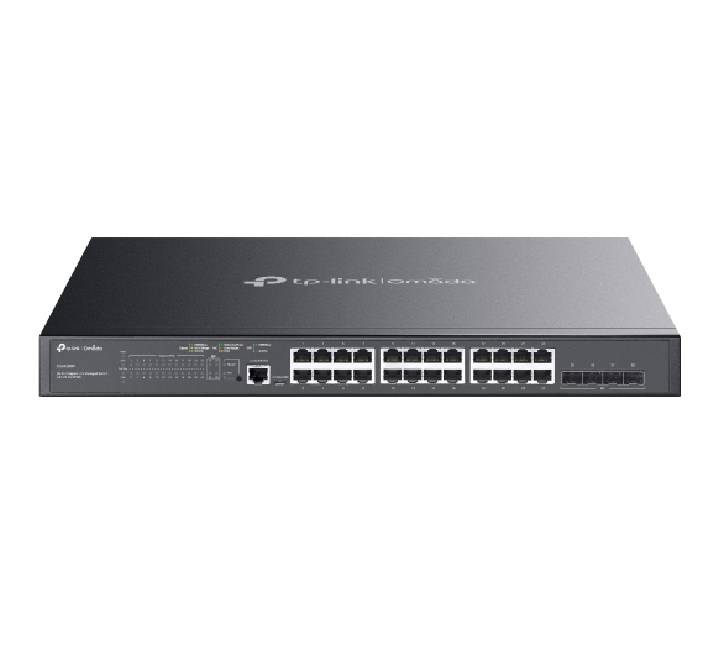

TP-Link Omada 28-port Gigabit L2+Managed Switch With 24-port POE+ (TL-SG3428MP)

Enterprise-Class Power and Centralized Management for Scaling Networks

Empower your business network with the TP-Link Omada SG3428MP 28-Port Gigabit L2+ Managed Switch. Engineered to serve as a high-performance backbone for corporate offices, hospitality deployments, educational institutions, and smart surveillance operations, this network switch offers 24× Gigabit RJ45 ports with advanced PoE+ capabilities alongside 4× Gigabit SFP fiber slots. Fully integrated into the acclaimed Omada Software-Defined Networking (SDN) ecosystem, it delivers automated zero-touch provisioning and seamless remote cloud management.

Key Features & Benefits

• Massive 384W Dedicated PoE+ Budget: Features 24× 802.3at/af-compliant PoE+ RJ45 ports supplying up to 30W of power per port. Effortlessly deploy power-hungry hardware like WiFi 6/7 access points, IP pan-tilt-zoom (PTZ) cameras, and VoIP devices over single Ethernet runs.
• High-Speed SFP Fiber Uplinks: Outfitted with 4× dedicated Gigabit SFP slots providing versatile fiber or copper uplink paths, alleviating bandwidth bottlenecks to your core server infrastructure or auxiliary distribution rings.
• Seamless Omada SDN Cloud Integration: Experience effortless centralized configuration and intelligent monitoring via the specialized Omada Cloud platform, Hardware Controller, or local Software Controller. Enjoy 100% cloud management from anywhere, anytime.
• Advanced L2 and L2+ Routing: Optimizes data pathways efficiently via Static Routing protocols, offloading internal traffic directly through the switch chassis to bypass gateway bottlenecks and improve overall throughput.
• Ironclad Security Frameworks: Protect your local digital network infrastructure using IP-MAC-Port-VID Binding, Access Control Lists (ACLs, Layer 2 to Layer 4), Port Security, DoS Defense, Storm Control, and centralized 802.1X/RADIUS authentication.
• Enterprise-Grade QoS Framework: Prioritize mission-critical data streams—such as live voice calls or real-time security feeds—via 802.1p CoS/DSCP handling and scheduling technologies (SP, WRR, SP+WRR) to maintain smooth, lag-free operations.

Technical Specifications

Specification	Details
Brand	TP-Link / Omada JetStream Series
Model Number	SG3428MP (TL-SG3428MP)
Physical Interfaces	24× 10/100/1000Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
PoE Standard & Budget	802.3at/af PoE+ compliant | 384W Max Power Budget (Up to 30W per port)
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	16K Entry Size
Packet Buffer Memory	4.1 Mbit

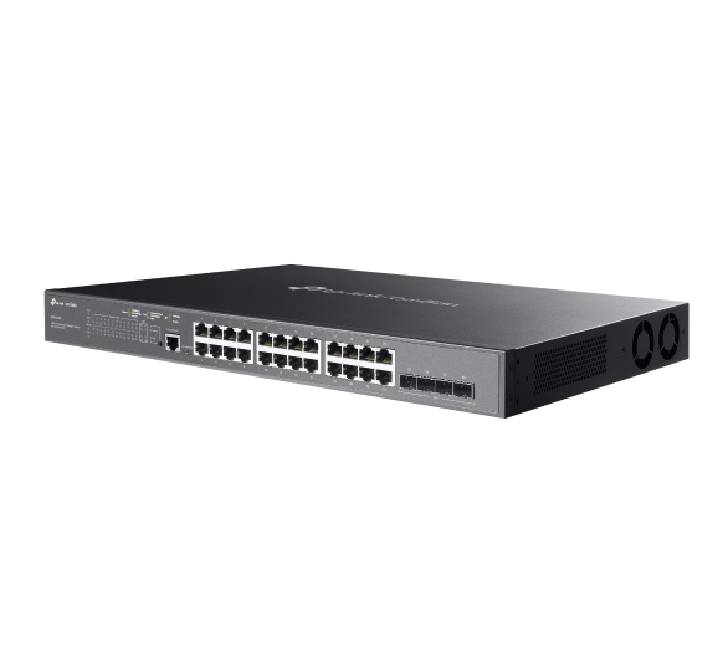

Acoustics & Cooling	2× Smart Active Cooling Fans
Power Consumption	442.1 W (Max with 384W devices attached)
Dimensions (W x D x H)	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Form Factor Mounting	Standard 1U Rackmount Enclosure (Ear brackets included)
Omada SDN Cloud Support	Yes (Centralized cloud management via Controller architecture)
