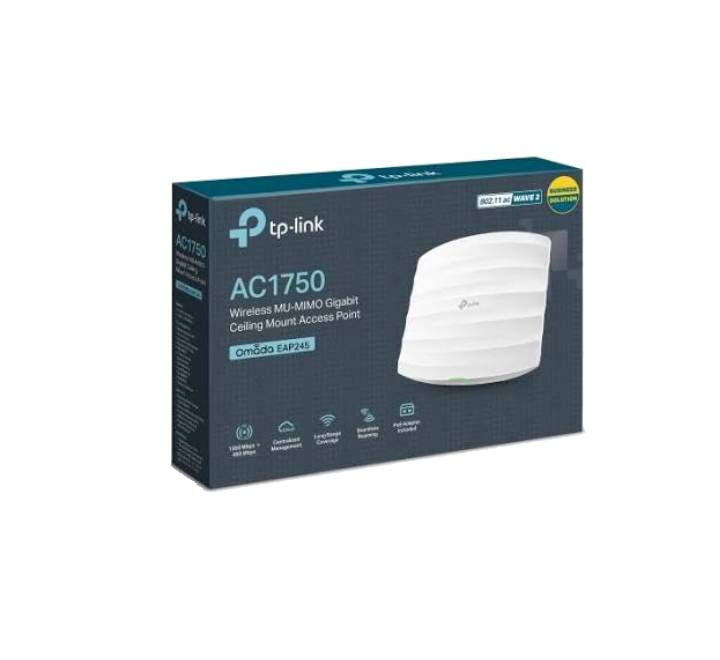

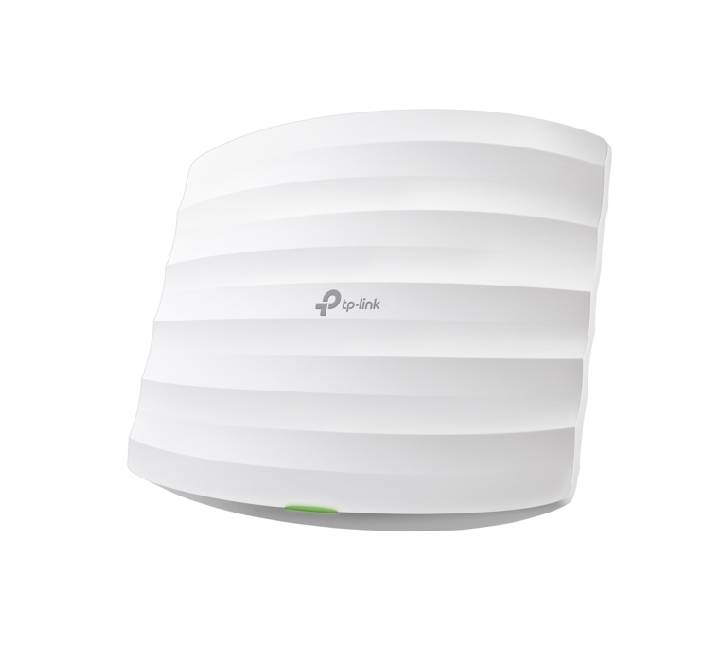

TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Upgrade your business network with the TP-Link EAP245 AC1750 Dual-Band Gigabit Ceiling Mount Access Point. Engineered for high-density environments like offices, schools, hotels, and retail spaces, the EAP245 delivers combined Wi-Fi speeds of up to 1750 Mbps. Powered by Wave 2 MU-MIMO technology and integrated into the Omada Software-Defined Networking (SDN) platform, this access point ensures fast, reliable, and uninterrupted wireless coverage across your entire facility.

Key Features

• Ultra-Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz total speeds of up to 1750 Mbps.
• Integrated into Omada SDN: Features Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Network Monitoring via the Omada app or web portal.
• Seamless Roaming: Keep video streams and VoIP calls connected without interruption as users move across different rooms or zones.
• PoE Support for Flexible Installation: Supports both 802.3at/af Power over Ethernet (PoE) and Passive PoE (PoE adapter included in package) for easy ceiling or wall mounting.
• Advanced Wireless Technologies: Optimizes network performance with MU-MIMO, Band Steering, Airtime Fairness, and Beamforming.
• Secure Guest Network: Multiple authentication options (SMS, Facebook Wi-Fi, Voucher) combined with enterprise-grade wireless security technologies.
• Dual Gigabit Ports: Includes 2× Gigabit RJ45 ports for high-speed wired backhaul connectivity.

Technical Specifications

Specification	Details
Brand & Model	TP-Link EAP245 (AC1750)
Wi-Fi Standards	IEEE 802.11ac/n/g/b/a
Wi-Fi Speeds	5 GHz: Up to 1300 Mbps 2.4 GHz: Up to 450 Mbps
Ethernet Ports	2× Gigabit RJ45 Ports (1 supports IEEE 802.3af/at PoE, 1 supports Passive PoE Out)
Antenna Type	Internal Omni (2.4 GHz: 3× 3.5 dBi | 5 GHz: 3× 4 dBi)
Power Supply Options	802.3at/af PoE or 48V Passive PoE (Passive PoE Adapter Included)
Power Consumption	12.7 W (Max)
Coverage & Capacity	Up to 140 m² (1,500 sq ft) | 220+ Concurrent Clients
Mounting Type	Ceiling Mount / Wall Mount (Kits included)
Dimensions (W x D x H)	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
