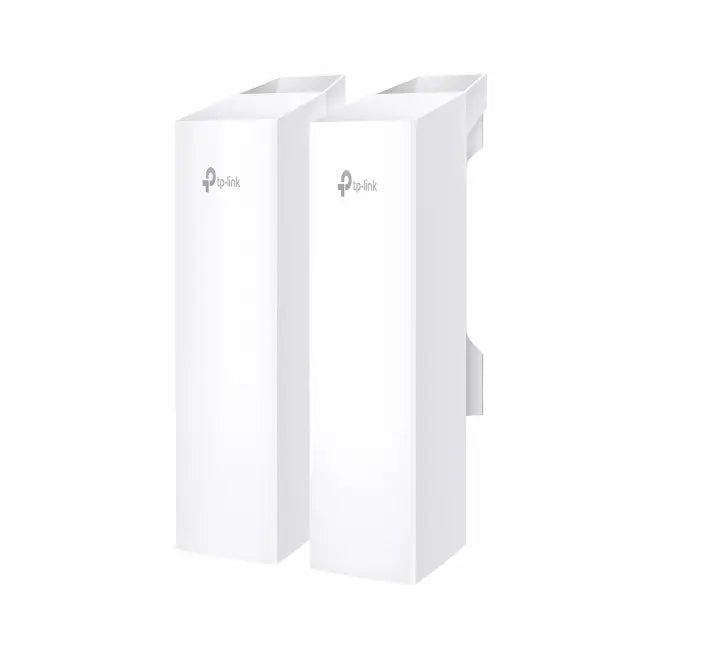

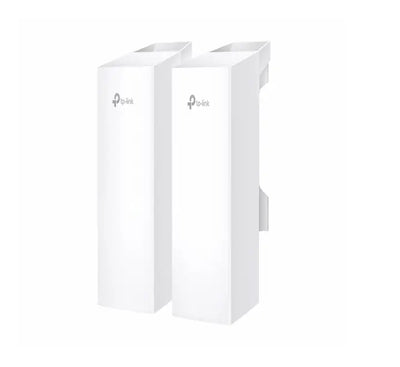

TP-Link EAP215-Bridge KIT Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Wireless Bridge

Bridge massive physical gaps and extend your corporate or surveillance infrastructure seamlessly with the TP-Link Omada EAP215-Bridge KIT 5GHz AC867 Long-Range Wireless Bridge. This high-capacity, pre-configured hardware duo creates ultra-stable, high-speed Point-to-Point (PtP) or Point-to-Multipoint (PtMP) wireless data links across distances up to 5 km (3.1 miles). Ideal for linking remote warehouses, perimeter security cameras, farm facilities, or separate office wings without the exorbitant costs of trenching fiber optic cables.

Key Features

• 5 km Long-Range Transmission: High-powered internal directional antennas easily bridge remote structural facilities up to 5,000 meters apart via dedicated 5 GHz line-of-sight beams.
• Zero-Touch Auto-Pairing Out of the Box: The kit comes factory-preconfigured to link automatically upon boot up, removing complex network mapping headaches from your deployment schedule.

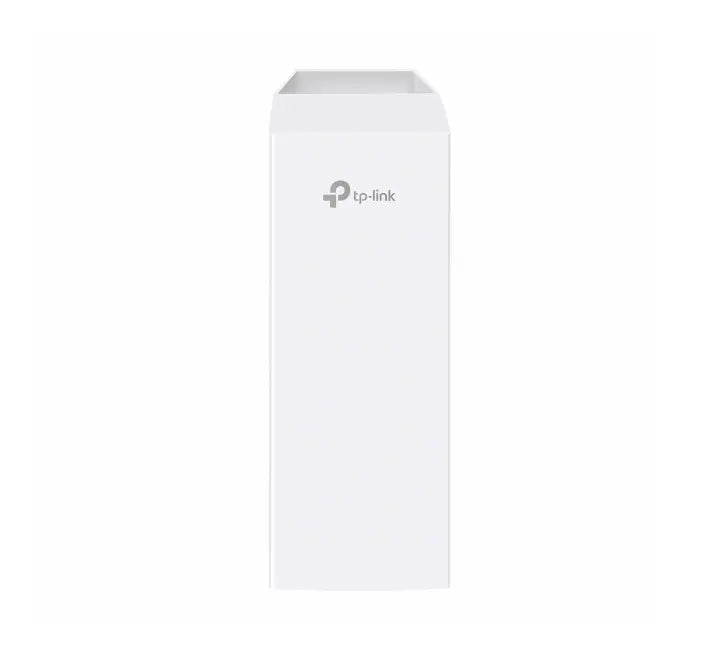

• 3× Gigabit Ethernet Ports: Built-in high-speed data ports allow you to connect multiple remote IP security cameras or local switches directly to the bridge unit without separate network hardware accessories.
• Fluid Omada SDN Integration: Remotely monitor, manage, and configure your entire bridge architecture globally through a centralized Omada Cloud platform, localized software controllers, or the intuitive Omada App.
• App-Guided Antenna Alignment: Take advantage of visualized app metrics and onboard LED signal strength indicators to achieve pinpoint alignment and maximum throughput speeds instantly.
• IP65 Weatherproof & 6kV Lightning Protection: Sealed within a rugged, wind-resistant chassis rated to survive punishing outdoor elements from -40°C up to 70°C.
• Flexible Power Delivery: Supports standard 802.3af PoE, 24V Passive PoE (injectors included), or 12V DC, allowing seamless operation alongside outdoor solar power arrays.

Technical Specifications

Specification	Details
Model Reference	EAP215-Bridge KIT (Pack of 2 Units)
Wireless Standards	IEEE 802.11a/n/ac (Wi-Fi 5) on 5 GHz Band
Maximum Signal Speed	Up to 867 Mbps
Maximum Range Distance	5 km (3.1 Miles Line-of-Sight)
Antenna Array Gain	Internal 2×2 Dual-polarized Directional MIMO / 14.0 dBi Gain
Antenna Beamwidth	Horizontal: 43°, Vertical: 18°
Hardware Interfaces	3× 10/100/1000 Mbps Gigabit Ethernet Ports per unit
Network Topologies	Supports Point-to-Point (PtP) and up to 1:4 Point-to-Multipoint (PtMP)
Powering Mechanism	802.3af PoE / 24V Passive PoE / 12V DC (Max consumption 11.5W)
Chassis Dimensions	10.9 × 3.1 × 2.4 in (276 × 79 × 60 mm) per device

Product Deployment Guide

See exactly how to deploy your long-range infrastructure networks using Omada bridge configurations:
