TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

High-Speed, Long-Range Outdoor Wireless Bridging Reinvented

Deploy lightning-fast, ultra-stable network links across vast distances with the TP-Link Pharos CPE710 5GHz AC867 Outdoor High-Gain CPE. Engineered specifically for professional enterprise applications, rural WISP topologies, and remote surveillance backhauls, this high-performance point-to-point (PtP) and point-to-multipoint (PtMP) bridge delivers high-speed data transmission up to 867 Mbps over the cleaner 5 GHz frequency band. Its parabolic directional dish construction ensures narrow beamwidth and immense structural stability over miles of open air.

Key Features & Benefits

• 867 Mbps Max Wireless Throughput: Powered by 802.11ac Wi-Fi standards, the CPE710 breaks through legacy bandwidth boundaries, offering smooth data delivery for bandwidth-heavy HD camera feeds and remote network nodes.

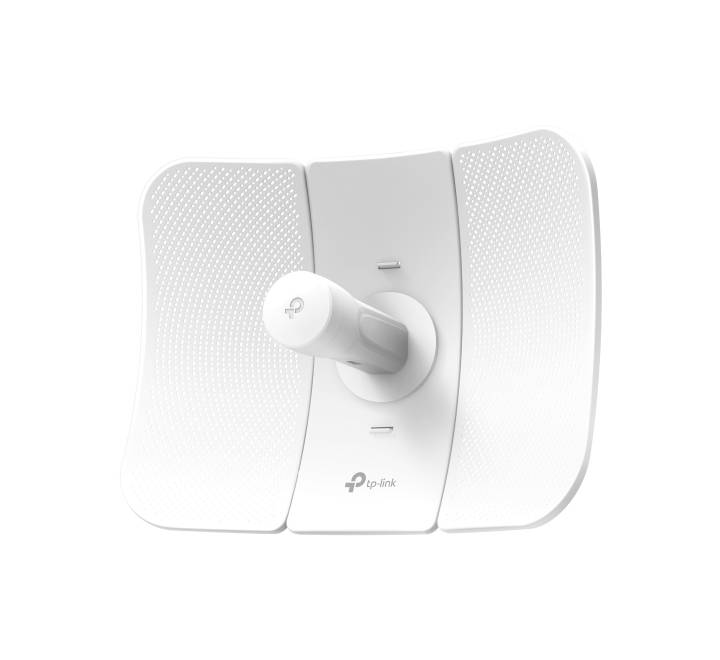

• 23dBi Professional Directional Antenna: Equipped with a high-gain 2X2 MIMO parabolic Cassegrain dish that dynamically tightens beam focus, dramatically cutting down local noise interference while optimizing structural long-range range.
• Pharos Control Centralized Management: Comes bundle-compatible with TP-Link's Pharos Control software suite, allowing IT operators to effortlessly monitor device statuses, update firmware, and manage network scaling from a unified interface.
• TP-Link MAXtream TDMA Technology: Uses custom time-division multiple access protocols to streamline data packet traffic transmission, preventing localized channel collision bottlenecks across high-density nodes.
• IP65 Weatherproof Industrial Design: Built to endure harsh environments with rugged weather-resistant housing, heavy-duty 15kV ESD electrostatic defense, and integrated 6kV lightning protection safeguards.

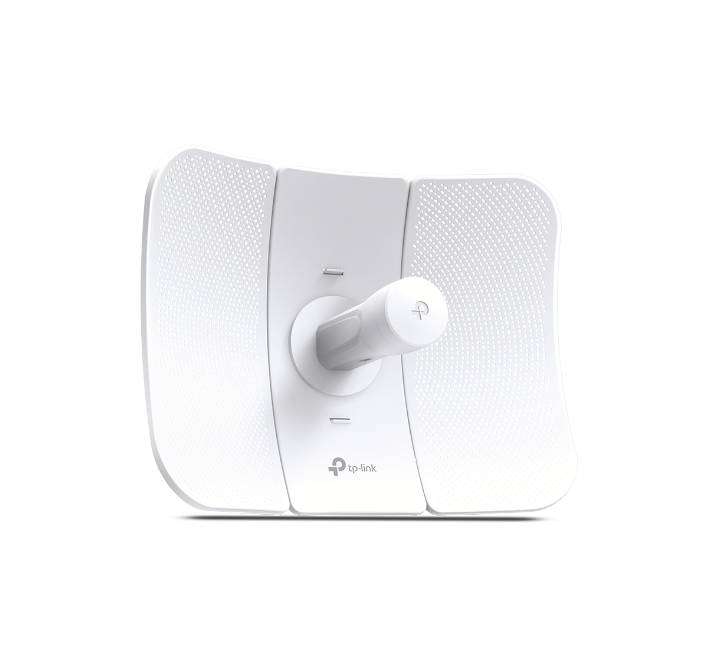

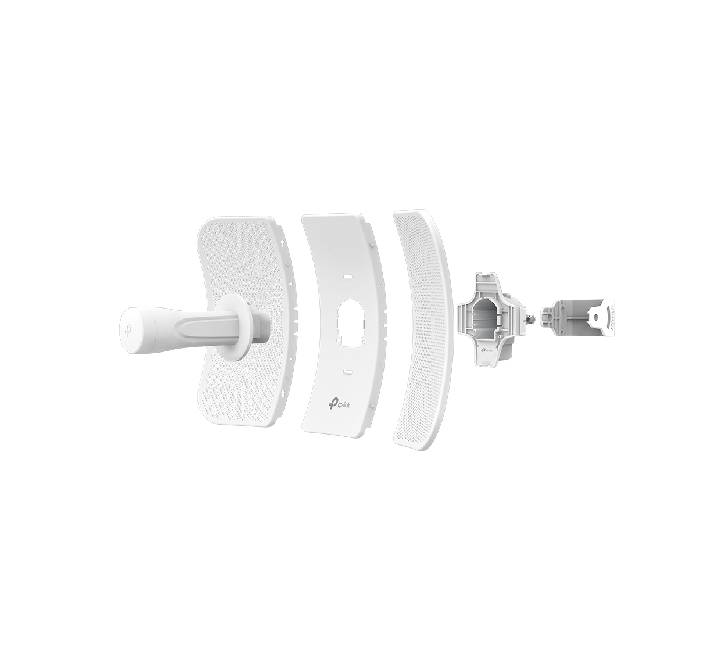

• Snap-Lock Assembly & Flex-Mounting: Designed with an innovative toolless, snap-lock modular chassis that enables quick assembly, complemented by flexible multi-axis pole-mounting brackets for fine-tuned precision alignment.
• Passive PoE Power Options: Includes a dedicated Passive PoE adapter supporting power delivery up to 60 meters (200 feet) over standard Ethernet cables, simplifying high-altitude tower or rooftop deployment logistics.

Technical Specifications

Specification	Details
Brand	TP-Link / Pharos Series
Model Number	CPE710
Wireless Standards	IEEE 802.11a/n/ac (5 GHz Band only)
Maximum Speeds	Up to 867 Mbps (80 MHz Channel Width)
Antenna Gain	23 dBi High-Gain Parabolic Cassegrain Dish Antenna
Physical Ports	1× 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE In)
Powering Method	Passive PoE over LAN (24V Passive PoE Injector Included)
Beamwidth coverage	Azimuth: 9° (Horizontal) | Elevation: 7° (Vertical)
Enclosure Protection	IP65 Weatherproof stabilization rating, 15kV ESD & 6kV Lightning Defense
Proprietary Wireless Mode	MAXtream TDMA Coordination mode available
Dimensions (W x D x H)	14.4 × 11.0 × 8.2 in (366 × 280 × 207 mm)
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
