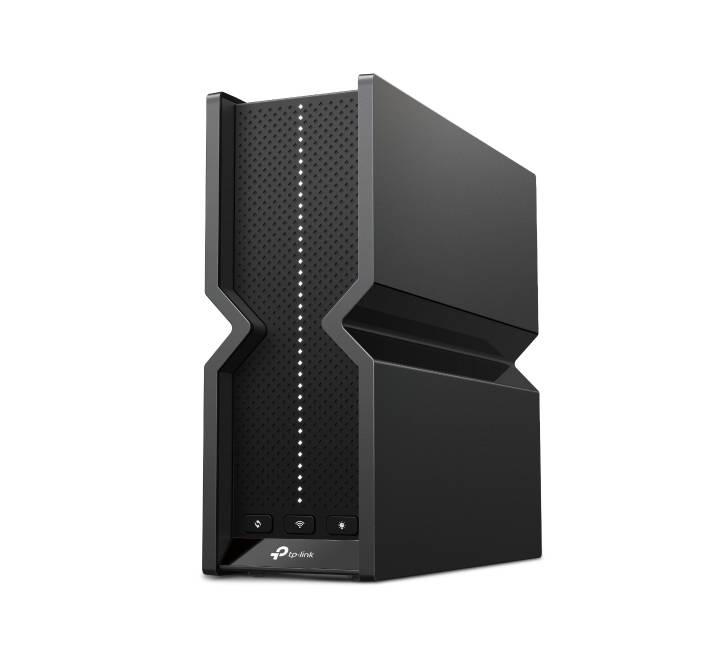

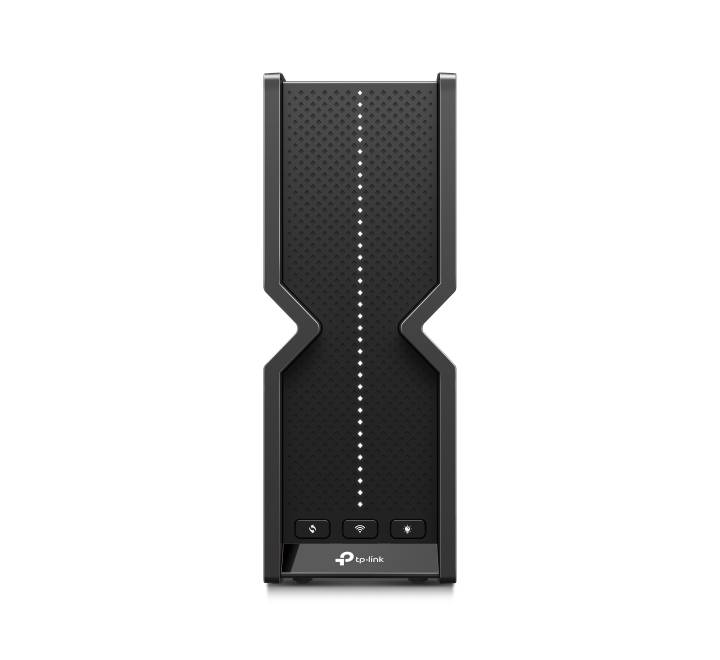

TP-Link Archer BE700 Tri-Band Wi-Fi 7 Router

Redefine your home network with the next-generation TP-Link Archer BE700 BE15000 Tri-Band Wi-Fi 7 Router. Engineered to handle ultra-dense, multi-device households, this cutting-edge router unleashes the true potential of Wi-Fi 7 technology to deliver breathtaking speeds up to 15 Gbps. Featuring massive 10G internet connectivity, 320 MHz channels, and advanced Multi-Link Operation (MLO), it provides an elite online experience—delivering lag-free 8K streaming, seamless VR/AR gaming, and lightning-fast file transfers for everyone in the house.

Key Features & Benefits

• Blazing-Fast 15 Gbps Tri-Band Wi-Fi 7: Delivers 11528 Mbps on the 6 GHz band, 2882 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band for unmatched cross-network performance.
• Ultra-Wide 320 MHz Channels: Doubles the channel width compared to older Wi-Fi generations on the 6 GHz frequency, allowing massive amounts of simultaneous data throughput without bottlenecking.

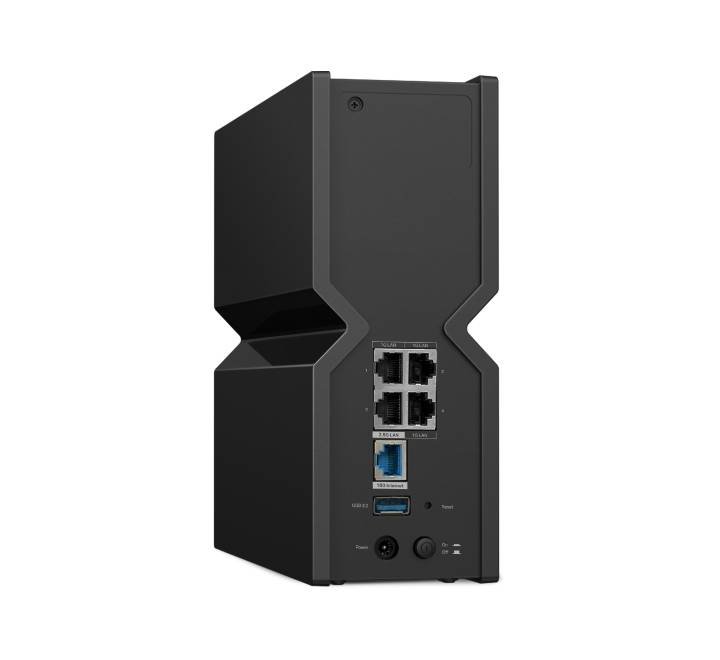

• True 10G Multi-Gigabit Port Integration: Designed to push past traditional boundaries with 1× 10 Gbps WAN/LAN port, 1× 2.5 Gbps LAN port, 3× 1 Gbps LAN ports, and a high-speed USB 3.0 port for network attached storage sharing.
• Innovative Multi-Link Operation (MLO): Enables compatible Wi-Fi 7 devices to transmit and receive data across multiple frequency bands concurrently, increasing overall throughput and slashing latency.
• 6× Smart Internal Antennas with Beamforming: Delivers broad, omnidirectional coverage throughout large properties while locating active devices to concentrate targeted signal strength directly toward them.
• EasyMesh Compatible & Smart IoT Network: Easily pair with other EasyMesh devices to form a seamless whole-home mesh network. Includes a dedicated, isolated private IoT network to keep your smart-home gadgets separate from personal data.
• TP-Link HomeShield Security: Premium built-in cybersecurity filters out malicious threats, protects connected IoT smart devices, and provides comprehensive parental controls.

Official Setup & Configuration Tutorial

Technical Specifications

Specification Class	Technical Data Details
Wi-Fi Category	BE15000 Tri-Band Wi-Fi 7 (802.11be)
Ethernet Interface Ports	1× 10 Gbps WAN/LAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN
Wireless Data Rates	6 GHz: 11528 Mbps | 5 GHz: 2882 Mbps | 2.4 GHz: 688 Mbps
USB Connectivity	1× USB 3.0 Port (Supports FTP, Media, and Samba Servers; NTFS, exFAT, HFS+, FAT32 formats)
Antenna Setup	6× High-Gain Internal Antennas with Beamforming and High-Power FEM
Advanced Wireless Features	Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, 8 Data Streams, EasyMesh Compatibility
Network Security	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), SPI Firewall, HomeShield Security Suite
VPN Options	Server & Client support for OpenVPN, PPTP, L2TP, and WireGuard VPNs
Dimensions (W x D x H)	3.0 × 9.1 × 8.0 inches (76 × 231.7 × 203 mm)
Package Contents	Archer BE700 Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
