Ruijie RG-NBS3200-24GT4XS 24 Port Gigabit Layer 2 Managed Switch
RG-NBS3200-24GT4XS
အာမခံ: 3 Years
K2,565,000
လာယူနိုင်မှု အချက်အလက် ဖွင့်၍ မရပါ
Yangon ရန်ကုန် တွင် ယူနိုင်
၂ နာရီအတွင်း ရနိုင် · ဖုန်းဆက်ပြီးမှ လာပါPairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Description

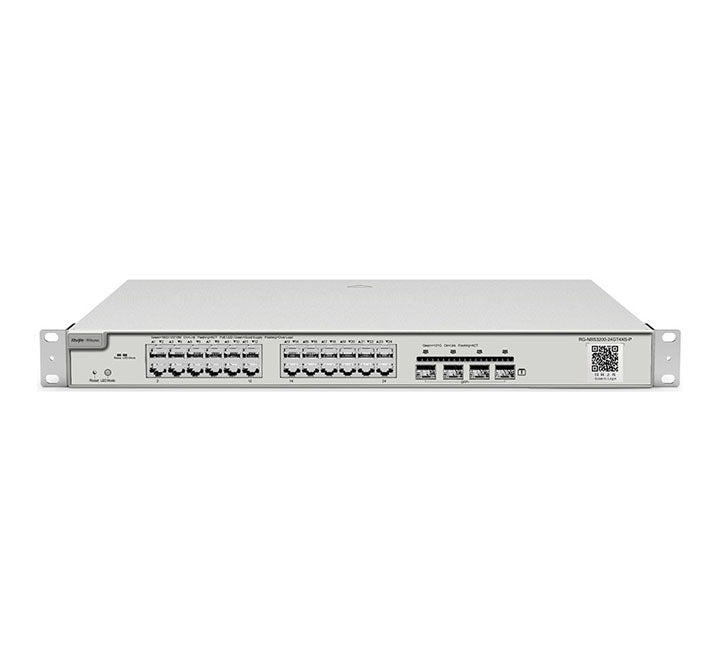

Ruijie Reyee RG-NBS3200-24GT4XS 24-Port Gigabit Layer 2+ Cloud Managed Switch with 4x 10G SFP+ Uplinks
Upgrade your enterprise network infrastructure across offices, hotels, schools, and commercial facilities in Myanmar with the Ruijie Reyee RG-NBS3200-24GT4XS Layer 2+ cloud-managed switch. Featuring 24 Gigabit (10/100/1000 Mbps) RJ45 Ethernet ports and 4 high-speed 10 Gigabit (10G SFP+) optical uplink slots, this switch provides ultra-fast data aggregation and eliminates backbone congestion between access points, core switches, and network servers.
Engineered with an efficient hardware design and 128 Gbps switching capacity, the RG-NBS3200-24GT4XS supports Layer 2+ features including static routing, VLAN tagging, IGMP Snooping, and IP Camera Recognition for specialized CCTV networking. Built with 6kV surge protection and backed by lifetime free management on the Ruijie Cloud app, it offers enterprise-class reliability at a highly cost-effective investment.
Key Features
- 24 Gigabit RJ45 + 4x 10G SFP+ Fiber Uplinks: Provides 24 high-density Gigabit client access ports plus 4 dedicated 10 Gbps SFP+ optical uplink ports for high-bandwidth server and distribution links.
- Layer 2+ Static Routing: Supports basic L2+ IPv4 and IPv6 static routing (up to 64 static routes) for efficient internal VLAN traffic management without straining core gateways.
- CCTV IP Camera Auto-Recognition: Automatically detects IP CCTV camera devices, allowing seamless topology mapping, remote video troubleshooting, and bandwidth prioritization.
- 128 Gbps Switching Capacity: High-performance architecture engineered with 96 Mpps forwarding speed and 512 MB RAM to handle complex data streams seamlessly.
- Advanced Network Security Policies: Protects network integrity using IP-MAC-Port Binding, ACL filtering rules, Port Isolation, Broadcast Storm Control, and CPU Defense Policies.
- 6 kV Surge Protection & Quiet Cooling: Built-in 6kV port surge protection shields internal circuitry against voltage spikes, while smart temperature-controlled fans optimize airflow with low noise output.
- Free Lifetime Ruijie Cloud Management: Configure VLANs, inspect network health, monitor device performance, and deploy remote updates anytime using the Ruijie Cloud App or Web interface.
Technical Specifications
| Category | Specification |
|---|---|
| Model Version | RG-NBS3200-24GT4XS |
| Network Interfaces | 24x 10/100/1000Base-T Ethernet RJ45 Ports + 4x 10GE SFP+ Fiber Uplink Slots |
| Switch Category | Layer 2+ Cloud Managed Switch (Non-PoE) |
| Performance | 128 Gbps Switching Capacity | 96 Mpps Packet Forwarding Rate |
| Memory & Storage | 512 MB RAM | 256 MB Flash Storage |
| Layer 2 / L2+ Features | Static Routing (IPv4/IPv6), 802.1Q VLAN (4094 IDs), Voice VLAN, STP/RSTP/MSTP, IGMP Snooping |
| Surge Protection | ±6 kV Service Port Protection | ±6 kV Power Connector Protection |
| Form Factor & Power | 1U 19-inch Metal Rackmount | Integrated AC 100–240V Power Supply (< 30W Max) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) | MTBF: 400,000 Hours |
| Dimensions & Weight | 440 x 207 x 44 mm | Net Weight: ~2.4 kg |
FAQs
What ports does the Ruijie RG-NBS3200-24GT4XS have?
24 Gigabit RJ45 ports and 4 x 10G SFP+ uplinks.
Does it supply PoE?
No. It is a non-PoE switch.
Is cloud management free?
Yes. Ruijie Cloud is free for life.
Does it support routing?
Yes. Layer 2+ static routing (up to 64 routes) for IPv4 and IPv6.
