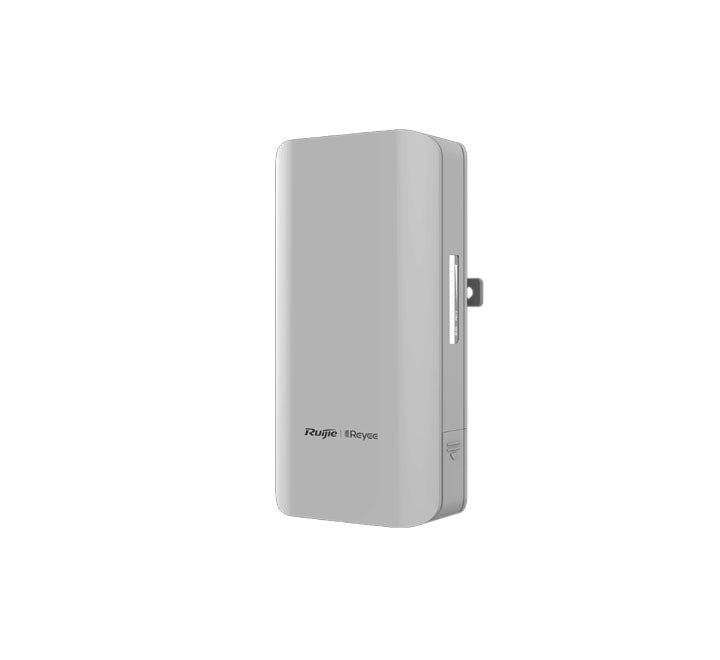

Ruijie Reyee RG-EST310 V2 5GHz Dual-Stream 802.11ac 1km Outdoor Wireless Bridge (Pre-Paired Pair Kit)

Eliminate complex outdoor trenching and expensive cabling across long distances with the Ruijie Reyee RG-EST310 V2 5GHz outdoor point-to-point (PTP) wireless bridge. Shipped as a factory pre-paired set of two devices (Camera End / Transmitter and NVR End / Receiver), this kit provides a hassle-free, plug-and-play solution for extending network connectivity and IP CCTV surveillance links up to 1 kilometer with line-of-sight visibility.

Operating on the 5GHz frequency band with 802.11ac 2x2 MIMO technology, the RG-EST310 V2 delivers up to 867 Mbps wireless throughput. Designed specifically for demanding scenarios like elevator CCTV backhaul, multi-building connections, construction sites, and remote security gates across Myanmar, it features a rugged IP54 weatherproof housing, integrated 10dBi directional antennas, and automatic self-healing capabilities.


Key Features

  • Factory Pre-Paired Set (Plug & Play): Includes two pre-configured units that link automatically upon powering up without requiring manual IP address or SSID setup.
  • 1 km Reliable Transmission Range: Features high-gain 10dBi built-in directional antennas engineered for stable video transmission and data links up to 1000 meters.
  • 867 Mbps High-Speed Throughput: Powered by 5GHz 802.11ac 2x2 MIMO technology to comfortably handle smooth HD/4K video streams from up to 16 IP cameras.
  • Elevator CCTV & Long-Distance Specialist: Replaces fragile elevator traveling cables and outdoor overhead wires with reliable, low-latency wireless transmission.
  • IP54 Outdoor Weatherproof Design: Built to withstand severe heat, tropical rain, dust, and operating temperatures ranging from –30°C to +55°C.
  • Software & Hardware Self-Healing Watchdog: Automatically detects data loss or system failure and reboots the link to guarantee uninterrupted 24/7 uptime.
  • Free Ruijie Cloud & Mobile App Management: Remotely monitor signal RSSI, bridge status, alignment strength, and receive reboot alerts directly via the Ruijie Cloud app.

Technical Specifications

Category Specification
Model Version RG-EST310 V2 (Kit of 2 Units)
Operating Band & Standard 5 GHz Single-Band Dual-Stream (5150–5850 MHz) | IEEE 802.11a/n/ac
Maximum Throughput Up to 867 Mbps @ 5 GHz
Recommended Bridging Distance 1 km (Recommended Line of Sight)
Antenna System Internal Directional Antenna | 10 dBi Gain (60° Horizontal / 30° Vertical)
Ethernet Ports 1x 10/100Base-T RJ45 Port per unit (Supports 24V Passive PoE)
Power Supply & Consumption 24V Passive PoE or 12V DC Input | Max Power Consumption < 7 W
Weatherproof & Protection IP54 Rated | ±4 kV Lightning / Surge Protection
Operating Temperature –30°C to +55°C (–22°F to +131°F)
Dimensions & Weight 147 x 76 x 37 mm (per unit) | 0.35 kg (Single Unit)
FAQs

Do I need to set up the Ruijie RG-EST310 V2?

No. The two units come pre-paired and link automatically when powered on.

How far can it link?

Up to 1 km with clear line of sight, on 5 GHz.

Is it good for CCTV?

Yes. It handles HD/4K streams from up to 16 IP cameras, including elevator CCTV.

Is it weatherproof?

Yes. It is IP54, rated -30°C to 55°C.
