Ruijie RG-ES110F-P 10-Port Unmanaged POE Switch
RG-ES110F-P
အာမခံ: 3 Years
K359,000
လာယူနိုင်မှု အချက်အလက် ဖွင့်၍ မရပါ
Yangon ရန်ကုန် တွင် ယူနိုင်
၂ နာရီအတွင်း ရနိုင် · ဖုန်းဆက်ပြီးမှ လာပါPairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Description

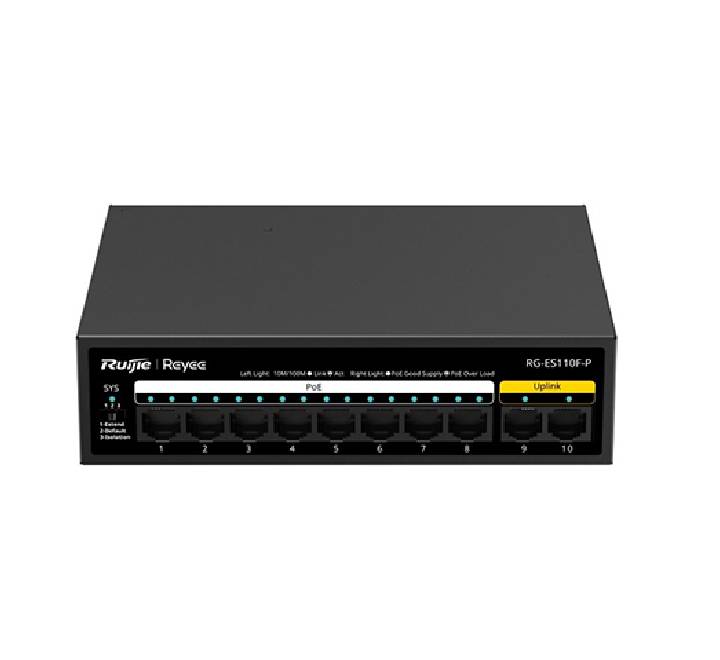

Ruijie Reyee RG-ES110F-P 10-Port 10/100Mbps Unmanaged PoE Switch (110W Budget)
Streamline your CCTV network and smart office surveillance with the Ruijie Reyee RG-ES110F-P 10-port unmanaged PoE switch. Equipped with 8 Fast Ethernet PoE+ ports (802.3af/at) and 2 Uplink ports, this desktop switch delivers up to 30W per port with a robust total power budget of 110W—making it the ideal powering solution for IP cameras, access points, and IP phones.

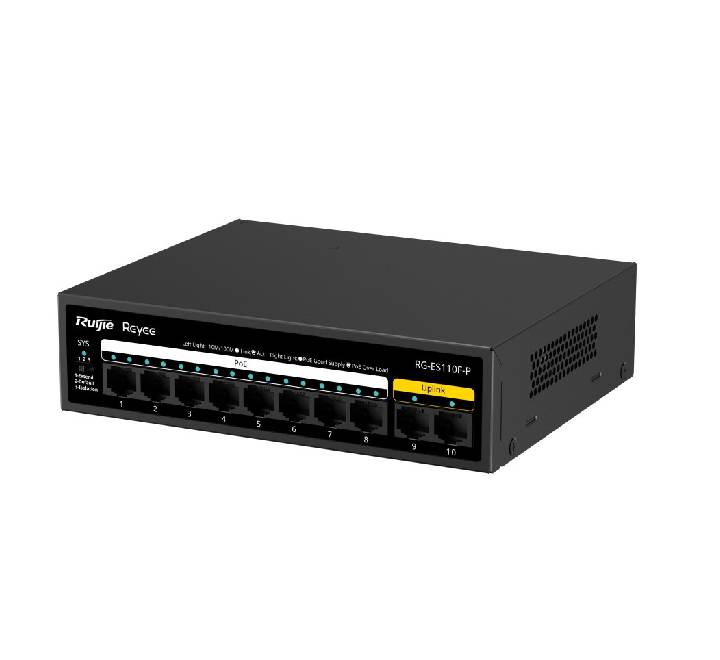

Engineered for hassle-free plug-and-play installation, the RG-ES110F-P features hardware DIP switches supporting 250-meter long-distance CCTV transmission and Port Isolation mode. Packed in a durable metal casing with fanless silent cooling and 6kV surge protection, it provides enterprise-grade stability for businesses across Myanmar.
Key Features
- 10-Port Fast Ethernet Layout: Includes 8 PoE/PoE+ ports and 2 dedicated Uplink RJ45 ports for seamless data throughput.
- High 110W Total PoE Power Budget: Supports up to 30W output per port under IEEE 802.3af/at standards to power power-hungry PTZ and night-vision IP cameras.
- Extended 250m CCTV Mode: Hardware DIP switch reduces port speed to 10Mbps to extend power and data delivery over Cat5e/6 cabling up to 250 meters.
- Port Isolation & Security: Prevents broadcast storms and enhances security by isolating downlink ports 1 through 8 while maintaining uplink connectivity.
- Ruijie Cloud Visibility: Though unmanaged, it is automatically discoverable on Ruijie Cloud via upstream Reyee gateway switches for remote topology monitoring.
- Industrial Metal Housing & Silent Cooling: Fanless heat-dissipation design ensures silent, reliable 24/7 operation in indoor offices and control rooms.
- 6kV Lightning & Surge Protection: Built-in ESD and high-level power surge discharge guards against electrical instability.
Watch Product Video & Overview
Technical Specifications
| Category | Specification |
|---|---|
| Model | RG-ES110F-P |
| Port Count & Interface | 10x 10/100Base-T RJ45 (8 PoE Ports + 2 Uplink Ports) |
| PoE Standard & Budget | IEEE 802.3af/at | 110W Max Total Budget (Up to 30W per port) |
| Switching Capacity & Forwarding | 2.0 Gbps Switching Capacity | 1.48 Mpps Forwarding Rate |
| Transmission Distance | 100m (Default) / Up to 250m (Extend Mode at 10Mbps) |
| DIP Switch Modes | Default Mode, Extend Mode (250m), Isolation Mode |
| Surge Protection | Common Mode 6kV (Power) / 4kV (Port Surge Protection) |
| Enclosure & Thermal Design | Solid Metal Casing | Fanless Passive Heat Dissipation |
| Dimensions & Weight | 166 x 132.6 x 43 mm | 0.97 kg |
FAQs
How many PoE ports does the Ruijie RG-ES110F-P have?
8 Fast Ethernet PoE+ ports plus 2 uplinks.
How much PoE power does it have?
110W, up to 30W per port.
How far can PoE reach?
Up to 250 m with the DIP switch.
