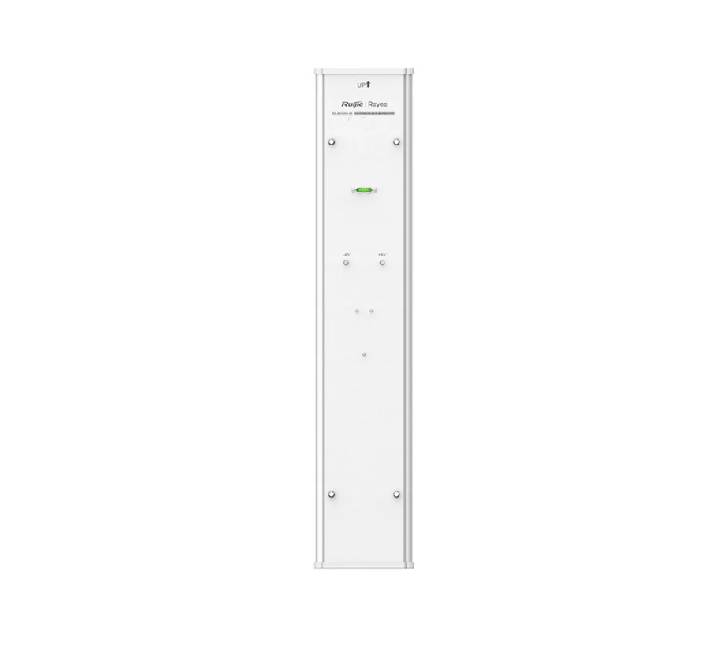

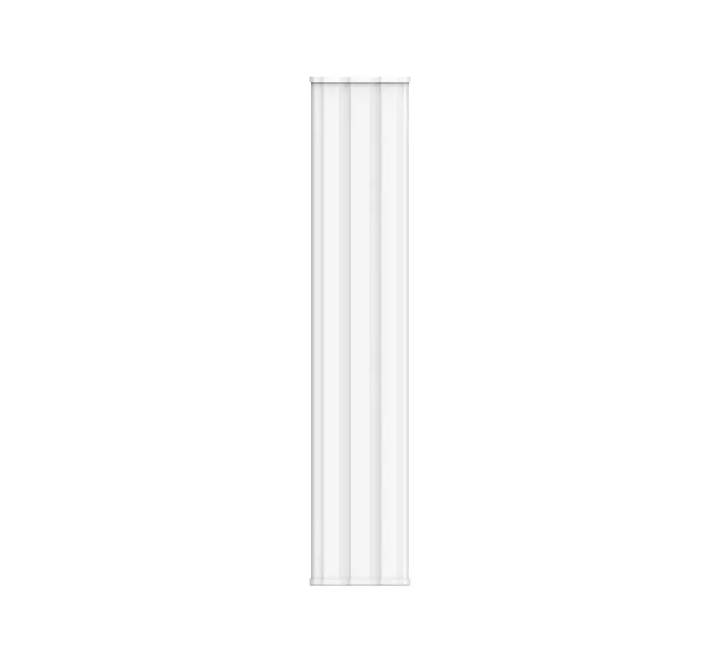

Ruijie RG-ANT20S-90 Outdoor Wireless Bridge Base Station

Build heavy-duty long-range wireless backhauls with the Ruijie Reyee RG-ANT20S-90 Outdoor 5GHz 20dBi 90° Sector Antenna. Explicitly designed as the ultimate high-gain base station companion for the RG-AirMetro550G-B bridge series, this system allows network engineers to deploy reliable Point-to-Multipoint (PTMP) links stretching up to an incredible 10 kilometers. An absolute essential for remote manufacturing plants, rural agricultural sites, mining clusters, and city-wide IP CCTV security grids across Myanmar facing challenging fiberless terrains.

Ruijie Reyee RG-ANT20S-90: Heavy-Duty 10km PTMP Base Station Sector Antenna

The Ruijie Reyee RG-ANT20S-90 is an industrial-grade, dual-stream (2x2 MIMO) sector antenna engineered to construct long-range wireless networks without the high cost of trenching fiber. Boasting a massive 20dBi signal gain, a wide 90-degree horizontal radiation swath, and a highly focused 7-degree vertical beamwidth, this sector powerhouse functions as the master host antenna capable of managing up to 32 remote PTMP client bridge links simultaneously. Whether linking scattered multi-facility corporate estates or piping HD video streams across remote towns, it keeps data pipelines crystal clear.

Key Structural & Wireless Performance Benefits

• Ultra-Long Range 10km PTMP Performance: Paired natively with AirMetro base stations to establish reliable data transmission boundaries over 10 kilometers away, maximizing deployment flexibility for local WISPs and industrial zones.
• High-Efficiency 90° Directional Beamwidth: Features a deliberate 90° horizontal beam pattern to offer optimized directional client indexing. Perfect for multi-node surveillance architectures where numerous sub-stations sit arrayed in a single broad direction.
• Monsoon-Ready IP55 Weatherproof Build: Encased in high-density, anti-UV, weather-resistant stabilization materials. Engineered to stand up against Myanmar’s intense seasonal downpours, scorching direct heat waves, and dust buildup.
• 220 km/h Industrial Wind Survivability: Built structurally tough with a heavy-duty pole-mounting bracket setup, ensuring your directional signal paths stay perfectly aligned even during high-velocity tropical storms.
• Dual-Stream 5GHz 2x2 MIMO Matrix: Harnesses premium 5GHz spectrum bands to avoid urban 2.4GHz signal traffic congestion, ensuring optimized throughput stability across multiple remote links.
• App-Guided Cloud Alignment Integration: Works hand-in-hand with the free Ruijie Cloud app and AirMetro firmware tools. Installers can view real-time visual signal metrics, making physical tower-top directional adjustments faster and safer.

Comprehensive Technical Specifications

Review the full technical and structural physical specification details for the RG-ANT20S-90 sector antenna:
