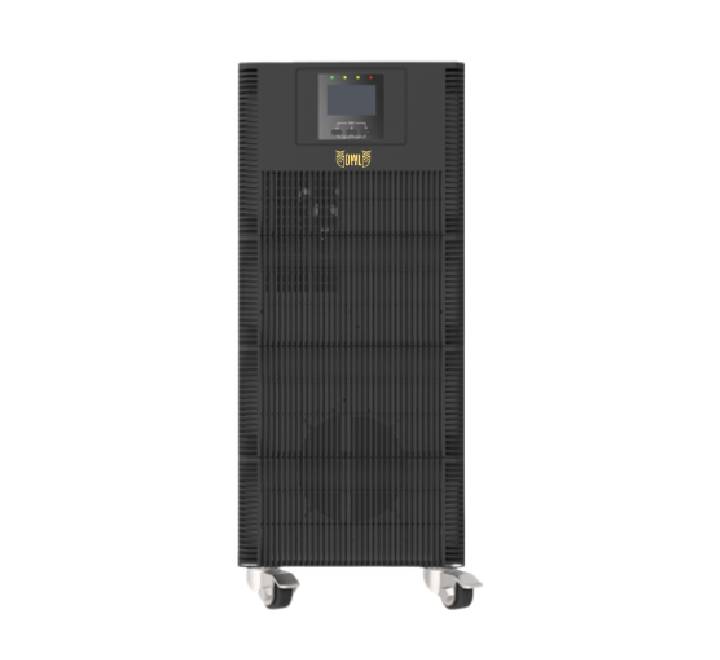

OWL T6K Tower-Type High Frequency Online UPS

Safeguard your mission-critical infrastructure from unpredictable grid anomalies with the OWL T6K Tower-Type High Frequency Online UPS. Delivering a robust 6kVA / 5400W power capacity, this enterprise-grade uninterruptible power supply utilizes true double-conversion technology to isolate your delicate electronics from blackouts, brownouts, surges, and harmonic line noise. Engineered in a streamlined tower form factor, it is the ultimate heavy-duty backup power baseline for data centers, medical appliances, high-end production servers, and complex business networking racks.

Key Features & Benefits

• True Online Double-Conversion Topology: Continuously converts incoming AC utility power to clean DC, then back into flawless AC. This filters out 100% of grid imperfections and guarantees structural stability.
• Zero-Millisecond (0ms) Switch-Over Time: Absolute zero transition time when switching from mains to battery mode ensures servers, database arrays, and network switches remain entirely unaffected without crashes or data corruption.
• Powerful 6000VA / 5400W Performance: Boasts a high 0.9 output power factor, unlocking massive, usable wattage capacity to reliably handle concurrent heavy hardware demands.
• Advanced Digital Signal Processing (DSP): Micro-processor controlled DSP technology manages input metrics dynamically, delivering precision electrical regulations, system diagnostics, and automated fault protection.
• Smart Eco-Mode Operation: Offers an optional, highly efficient ECO mode setting that reduces operational energy expenses and heat dissipation during periods of stable grid environments.
• Intelligent Multi-Platform Communications: Out-of-the-box system monitoring via integrated RS232 and USB interfaces, with an optional expandable intelligent slot allowing for remote SNMP, AS400 dry contact, or RS485 network management.
• True online double-conversion technology
  Output power factor is 1, kVA/kW
  Digital charging design, Adjustable from 1 to 12A
  High efficiency, AC to AC 95%
  Auto fan speed adjustment
  Wide input voltage range, 110Vac to 300Vac
  Emergency power off function (EPO)
  Generator compatible
  LCD display & LED indicator
  Battery cold start
  Smart RS232/USB port with monitoring software (optional)
  ECO mode operation for energy saving (ECO)
  Intelligent slot, support optional SNMP / RS485 / AS401 card
  DSP (Digital Signal Processing) technology guarantees high performance
  Advanced PFC (Power Factor Correction) technology, input PF>99%

• Input
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  VoltageRange: 110~300Vac
  FrequencyRange: 50/60±6Hz
  PowerFactor: ≥0.99
  THDi: ≤5%(linear load);≤8%(non-linear load)

• Output
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  Voltage Regulation: ±1%
  Frequency: 50/60Hz±0.1%
  Efficiency
  Line Mode: 95%
  Battery Mode: 94.5%
  ECO Mode: 98%

• Battery
  Type: Sealed lead acid maintenance free
  NominalVoltage: 192Vdc
  BatteryNumber: 12V7Ah*16pcs
  ChargeCurrent: 1A(1-12A)
  Charging Mode: Two/Three-period charging

• Enviroment
  Operation Temperature: 0~40℃
  Relative Humidity: 0~95%(non-condensing)
  Noise: ≤50dB@1meter away
  Altitude: Up to 1000m without derating

• Physical
  Dimensions(W*D*H, mm): 251*524*604


Technical Specifications
