MiKroTik CRS326-24S+2Q+RM 24 10G SFP+ Cages Managed Switches

Ultra-High-Density 10G & 40G Fiber Connectivity for Modern Networks

• 2 Pcs instock only ( if not available leadtime  4 ~ 10 Weeks )

The MikroTik CRS326-24S+2Q+RM is engineered for high-demand enterprise environments, ISP backbones, and data centers requiring ultra-fast throughput without bandwidth bottlenecks. Equipped with twenty-four 10G SFP+ ports and two 40G QSFP+ ports, this 1U rackmount Cloud Router Switch delivers a total non-blocking throughput of 320 Gbps and a massive switching capacity of 640 Gbps.

Key Features & Highlights

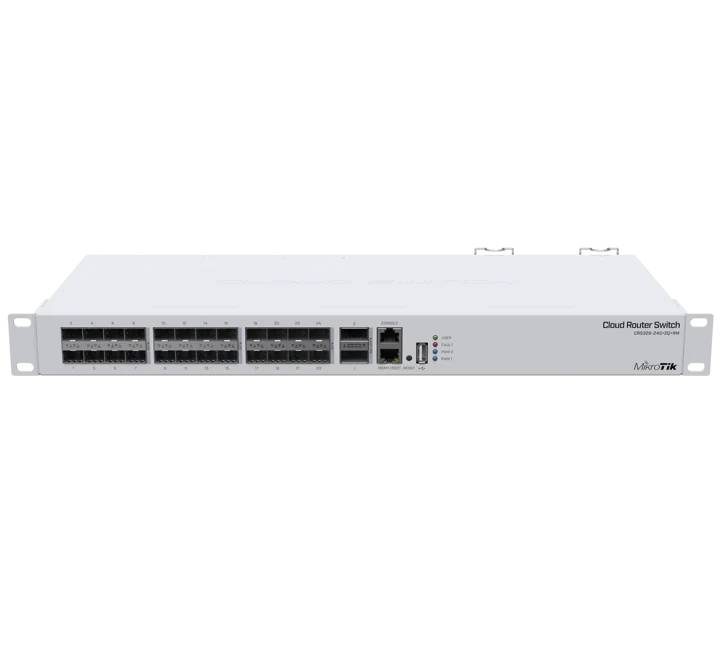

• Next-Generation Fiber Speeds: Features 24x 10G SFP+ ports for high-density server connections and 2x 40G QSFP+ ports for high-capacity uplink aggregation.
• Dual-Boot Flexibility (SwOS & RouterOS): Boot into SwitchOS (SwOS) for simplified Layer 2 switching administration or RouterOS for full Layer 3 routing, firewall, and VPN capability.

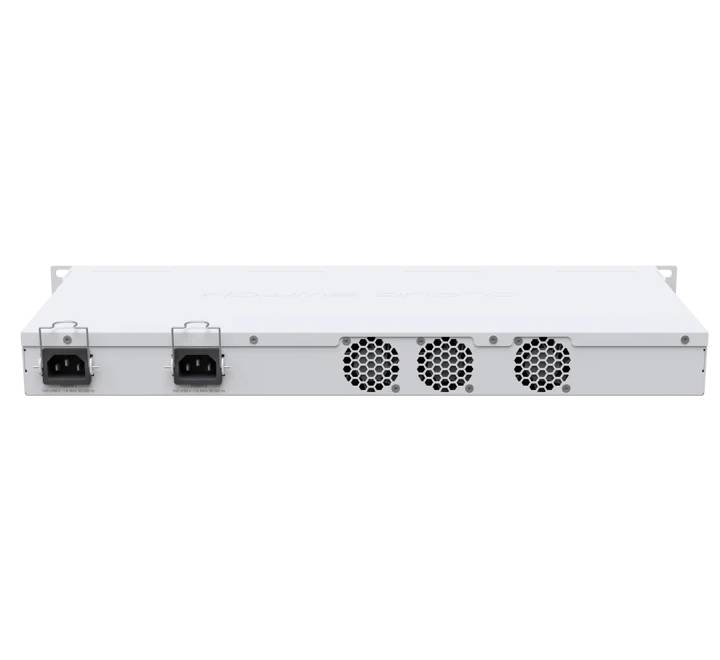

• Redundant Dual Power Supplies: Dual AC inputs (100–240V) provide automatic failover protection to ensure 24/7 uptime in mission-critical deployments.
• Carrier-Grade Performance: Powered by a 650 MHz CPU with 64 MB RAM, generating a 252 Mpps forwarding rate for high packet-density handling.
• Active Thermal Management: Three built-in temperature-controlled fans maintain efficient cooling under continuous peak workloads.
• Out-of-Band Management: Includes an extra 10/100 Ethernet port, RJ45 serial console port, and a full-sized USB Type-A port for easy recovery and maintenance.

Technical Specifications

Parameter	Specification
Product Code	CRS326-24S+2Q+RM
CPU	QCA9531 @ 650 MHz
RAM / Storage	64 MB RAM / 16 MB Flash
10G SFP+ Ports	24 Ports
40G QSFP+ Ports	2 Ports
Management Ports	1x 10/100 Ethernet, 1x RJ45 Serial Console, 1x USB Type-A
Switching Capacity	640 Gbps
Non-Blocking Throughput	320 Gbps
Forwarding Rate	252 Mpps
Operating System	RouterOS (License Level 5) / SwOS Dual Boot
Power Inputs	2x AC Power Supplies (100V–240V)
Max Power Consumption	69 W (42 W without attachments)
Dimensions & Form Factor	443 x 200 x 44 mm (1U Rackmount Ears Included)
