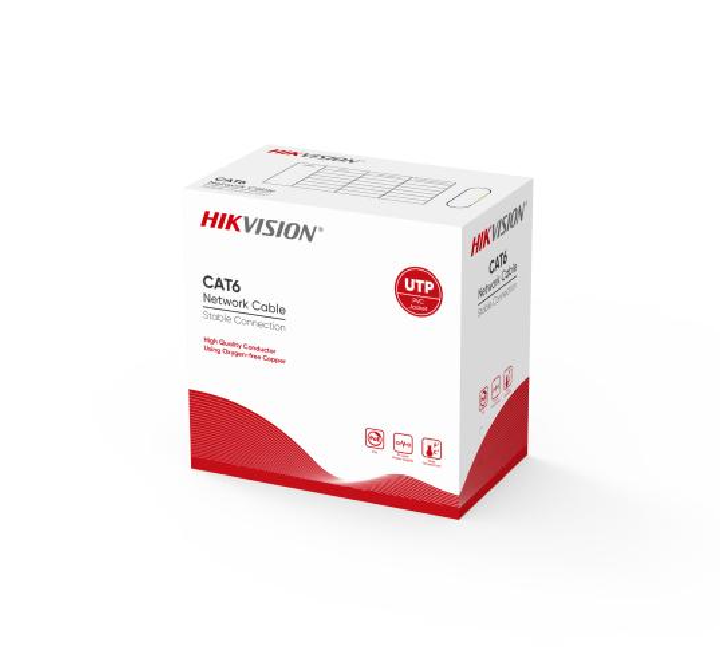

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.565 mm, CM)

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.565 mm, CM)

Specifications:

• Type: CAT6 UTP Network Cable
• Length: 305 m
• Core Diameter: 0.565 mm
• Conductor Material: Solid Copper (99.95% purity)
• Insulation Material: HDPE
• Sheath Material: PVC (complies with RoHS)
• External Diameter: 6.2 mm ± 0.4 mm
• Sheath Thickness: 0.55 mm ± 0.05 mm
• Core Colors:
  • 1: White-Blue / Blue
  • 2: White-Orange / Orange
  • 3: White-Green / Green
  • 4: White-Brown / Brown

Performance Characteristics:

• Transmission Performance: Excellent; verified by Fluke testing
• Electrical Properties (at 20°C):
  • Impedance: 100 ± 15 Ω (1.0-250.0 MHz)
  • Delay Skew: ≤ 45 ns/100m (1.0-250.0 MHz)
  • DC Resistance: Max 9.38 Ω/100m
  • DC Conductor Resistance Unbalance: Max 5.0%

Mechanical Properties:

• Before Aging:
  • Tensile Strength: ≥ 13.5 MPa
  • Elongation: ≥ 150%
• After Aging (100°C × 24h × 10d):
  • Tensile Strength: ≥ 12.5 MPa
  • Elongation: ≥ 125%
• Cold Bend Test: -20 ± 2°C for 4h, no visible cracks at 8× cable O.D.

Packaging:

• Packing Method: Wooden Tray & Carton
• Packing Length: 305 ± 1.5 m
• Rip-cord: Yes
• Drain Wire: No
• Carton Dimension: Per request

Additional Features:

• Flame Resistance: Excellent PVC flame resistance
• Surface Finish: Clean, flat, and saturation
• Color: Orange (RAL2003) with black surface printing
• Print Error & Space: ≤ ±0.5%, 1m

This CAT6 UTP cable is designed for optimal performance in networking applications, offering durability, excellent transmission capabilities, and compliance with safety standards.
