Product details

Description

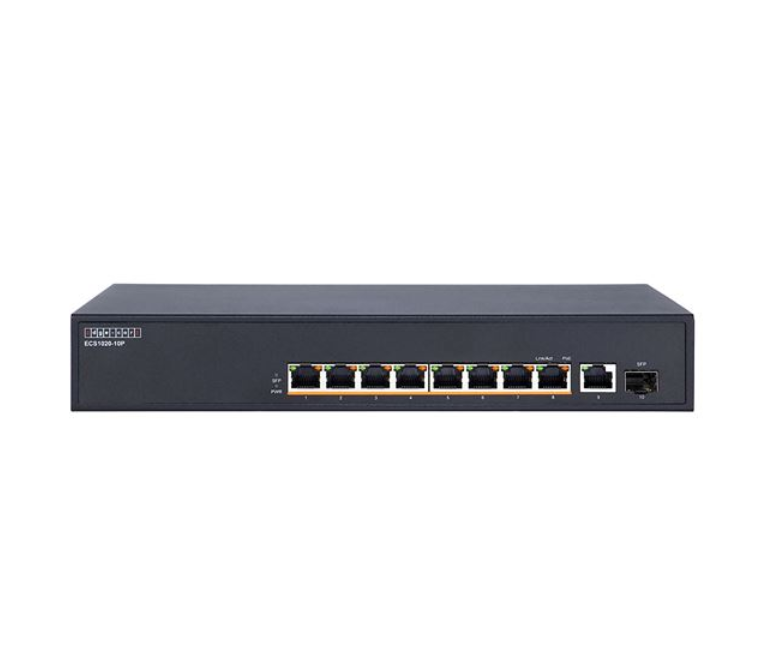

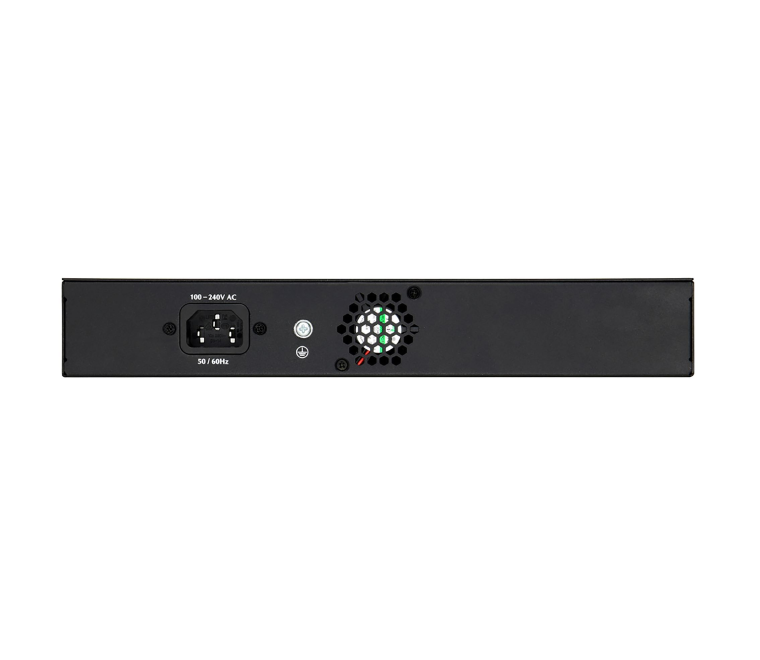

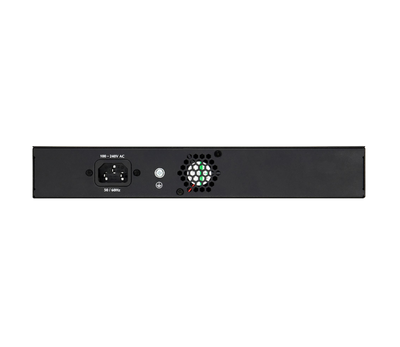

Edgecore ECS1020-10P (1 SFP & 8 PoE) Gigabit Unmanaged PoE Ethernet Router

  • Port
  • RJ45 10/100/1000 BASE-T Ports: 9
  • SFP Uplink Ports: 1 (1G/100M)
  • PoE Ports: 8
  • 9 ports 10/100/1000Base-T + 1 port 1G SFP uplink ports with 8 port PoE (140W) Unmanaged Gigabit Ethernet Switches
  • Warranty : 1 Year
  • Performance
  • Switching Capacity: 20Gpbs
  • Forwarding Rate: 14.9Mpps
  • Packet Buffer: 1.5Mbits
  • MAC Address Table: 4K
  • Jumbo Frames: 9K
  • MTBF: TBD
  • Heat Dissipation: 18.2 (kcal/h)
  • Acoustic Noise: 49dB (A)
  • Power Supply
  • 100V-240V AC, 50-60Hz: Yes
  • Max System Power Consumption: 163W
  • PoE
  • IEEE 802.3af/802.3at: Yes
  • PoE Power Budget: 140W
  • Mechanical
  • Rack Space: 13"
  • Form Factor: Rackmount
  • Dimensions (W x D x H): 280 x 180 x 44mm (11.02 x 7.09 x 1.73")
  • Weight : 1.70kg
  • Environmental
  • Operating Temperature: -0°C~40°C
  • Storage Temperature : -40°C~70°C
  • Operating Humidity
  • (non-condensing): 10%~90%
  • Storage Humidity
  • (non-condensing): 10%~90%
  • WEEE: Yes
  • RoHS: Yes
      FAQs

      How many PoE ports does the Edgecore ECS1020-10P have?

      8 PoE ports with a 140W budget (802.3af/at).

      What other ports does it have?

      9 Gigabit RJ45 ports in total plus 1 Gigabit SFP uplink.

      Is it managed?

      No. It is an unmanaged switch.
