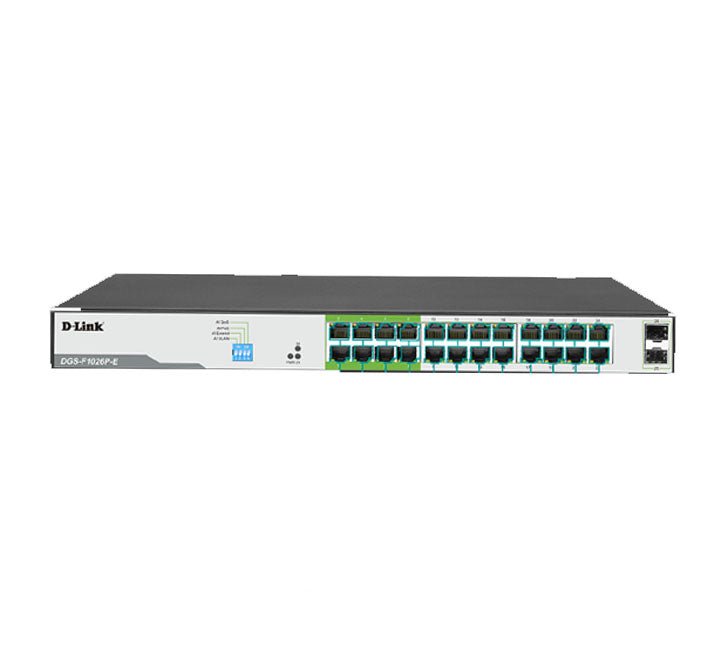

D-Link DGS-F1026P-E 26-port Unmanaged Gigabit PoE Switch
DGS-F1026P-E
အာမခံ: 2 Years
K1,072,000
လာယူနိုင်မှု အချက်အလက် ဖွင့်၍ မရပါ
Yangon ရန်ကုန် တွင် ယူနိုင်
၂ နာရီအတွင်း ရနိုင် · ဖုန်းဆက်ပြီးမှ လာပါPairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Description
Plug-and-Play 250-Meter Long Range PoE+ Core for Large-Scale IP Surveillance
The D-Link DGS-F1026P-E is an industrial-strength, high-capacity 26-Port Unmanaged Gigabit PoE Switch optimized specifically for robust IP camera deployments, long-range wireless backhauls, and mass network expansions. Built with 24 dedicated 10/100/1000 Mbps RJ45 PoE+ copper ports delivering a high-capacity 250-Watt total PoE budget, this switch removes the logistical constraints of remote hardware installation. Completed by 2 dedicated Gigabit SFP fiber uplink slots for unthrottled storage network or server rack connection, it features a unique set of front-panel **hardware DIP switches**. This allows installers to activate long-distance extensions, hardware resets, or port isolation instantly on the fly. The DGS-F1026P-E delivers elite infrastructure reliability with zero software configuration headaches for system architects across Yangon, Mandalay, and Myanmar’s thriving commercial zones.
Hardware Intelligent Features & Surveillance Architecture
- 250-Meter Super Extended PoE Mode: Ports 1 through 8 can be shifted instantly into "Extend Mode" via an on-board hardware switch, letting you push 802.3af/at power and data up to 250 meters over Cat5e/Cat6 cable—perfect for large warehouses or perimeter camera tracking.
- 6KV Multi-Port Lightning Protection: Embedded with advanced 6 Kilovolt electrical surge protection on every copper interface, safeguarding your internal server equipment and edge hardware from sudden voltage spikes or lightning strikes common in regional climates.
- AI PD-Alive Automated Self-Healing: Actively monitors connected PoE endpoints. When a remote surveillance camera or terminal stops communicating, the switch initiates an automatic localized port power-cycle to force a clean device reboot without a technician stepping foot on-site.
- One-Click Hardware Port Isolation (VLAN Mode): Isolates downlink ports 1 through 24 from communicating with each other while keeping their uplink pathways wide open. This prevents network broadcast storms from spreading and adds a vital layer of localized camera isolation.
- Intelligent Application QoS Prioritization: When toggled, the integrated hardware QoS engines automatically sort, flag, and prioritize time-sensitive high-definition video data blocks ahead of standard office files to prevent skipped frames and choppy security recordings.
D-Link DGS-F1026P-E Complete Structural Specifications
Verify data backplane capacities, operational thresholds, power limits, and structural tolerances before rack integration:
| Hardware Parameters | Official Factory Specification Details |
|---|---|
| Product Model Number | DGS-F1026P-E (Long-Range Unmanaged Series) |
| Total System Ports | 26 Ports Total |
| PoE Downlink Interfaces | 24 x 10/100/1000 Mbps Base-T (IEEE 802.3af/at Power-over-Ethernet) RJ45 Ports |
| Dedicated Uplink Slots | 2 x 1000 Mbps Dedicated SFP Fiber Optic Cages |
| Total Available PoE Budget | 250 Watts Maximum Allocatable Capacity (Up to 30W Max per individual port) |
| Long-Reach Capability Range | Ports 1 to 8 support transmission distances up to 250 meters at 10Mbps link speed |
| Switching Fabric Capacity | 52 Gbps (Non-blocking Line-Rate Backplane architecture) |
| Maximum Forwarding Rate | 38.688 Mpps (Million Packets Per Second under Full Load) |
| Forwarding Protocol Method | Store-and-Forward Routing (Wire-Speed Frame Filtering) |
| Network Protocol Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x (Flow Control), IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3af/at |
| Media Interface Exchange | Auto MDI/MDI-X Crossover Adjustment across all RJ45 ports |
| Surge / Lightning Protection | Built-in 6KV Overvoltage Protection per copper port line |
| Physical DIP Switch Modes | 4 Selectable Onboard Modes: Extend (250m), VLAN (Port Isolation), QoS (Video Priority), AI PoE (PD Alive) |
| Integrated LED Indicator Matrix | Per Device: Power Status | Per Port: Link Activity, Link Speed, PoE Power Verification |
| Power Supply Input | Internal Universal Supply Block: 100 to 240 V AC, 50/60 Hz Transformer |
| Thermal Ventilation Layout | Reliable Cooling Array Enclosure (Built for high-heat environments) |
| Chassis Physical Enclosure | 440 mm x 180 mm x 44 mm (Standard 19-Inch 1U Rugged Metal Case, Rackmount Mounting Ears Included) |
| Unit Physical Net Weight | 3.00 kg (6.61 lbs) |
| Climate Operating Constraints | Operating Temp: 0 to 40 °C | Storage Limits: -40 to 70 °C | Humidity Scope: 10% to 90% RH non-condensing |
| Regulatory Quality Compliance | CE, RoHS, FCC Class A, LVD Safety Standards Approved |
FAQs
How much PoE does the D-Link DGS-F1026P-E supply?
A 250W budget across 24 Gigabit PoE+ ports, plus 2 Gigabit SFP uplinks.
Can it send PoE further than 100 m?
Yes. Extend Mode on ports 1-8 reaches up to 250 m, set with a DIP switch.
Does it reboot frozen cameras?
Yes. PD-Alive power-cycles a port when a device stops responding.
Does it have surge protection?
Yes. 6kV on every copper port.
