ASUS GT1030-SL-2G-BRK Graphics Card

ASUS GeForce GT 1030 2GB GDDR5 – Premium Silent Graphics for Compact PC Workstations

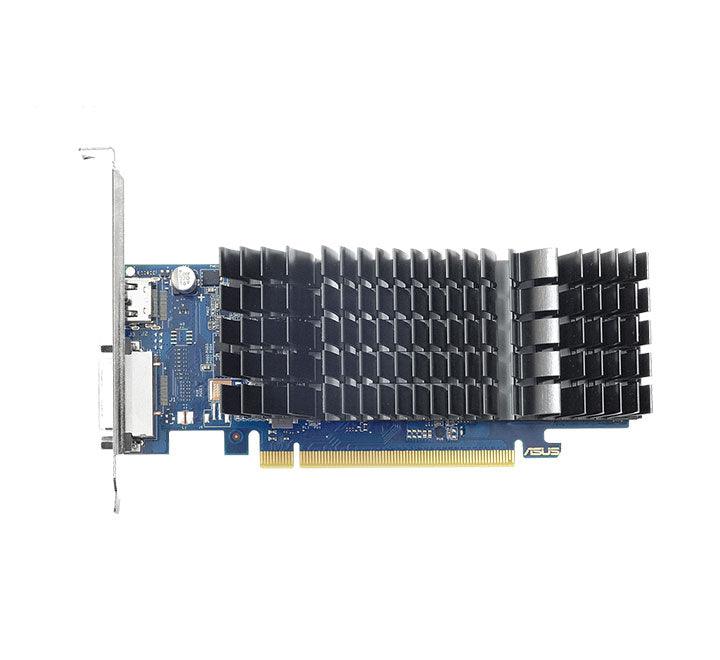

The ASUS GeForce® GT 1030 2GB GDDR5 Low Profile Graphics Card (GT1030-SL-2G-BRK) is an efficient, ultra-compact graphics solution designed to elevate office productivity, power Home Theater PCs (HTPCs), and accelerate daily multimedia applications. Engineered with an exclusive passive cooling setup, this card operates at a true 0dB, keeping your workspace perfectly quiet.

Built with high-speed GDDR5 video memory, the GT 1030 provides up to 2X faster performance than standard DDR3 variants, making web browsing, photo editing, and smooth 4K video playback seamless. Its slot-powered configuration means it slips easily into space-conscious systems without demanding extra power cables.

Key Features & Highlights

• 0dB Silent Passive Cooling: Custom ASUS-designed heatsinks feature a wide surface area to cool the GPU entirely without active fans, ensuring absolute silence.
• High-Speed GDDR5 VRAM: Features 2GB of GDDR5 memory to deliver a significantly higher data bandwidth and snappier performance compared to older DDR3 alternatives.
• Low-Profile & Space-Saving Form Factor: Fits perfectly inside slimline desktops and small form factor (SFF) corporate PC chassis. Dedicated low-profile I/O brackets are included right in the box.
• Auto-Extreme Premium Quality: Formed using a 100% automated single-pass manufacturing system that removes human error, minimizes component thermal stress, and guarantees exceptional product lifespan.
• No External Power Cables Needed: Draws all its operating power straight out of the motherboard's PCIe slot, eliminating cable clutter and maximizing setup flexibility.
• GPU Tweak II Configuration: Easily adjust vital core clock configurations, memory frequencies, and tracking metrics through an intuitive, user-friendly software dashboard.

Technical Specifications

Component Block	Technical Details
Model Identification	ASUS GeForce® GT 1030 (GT1030-SL-2G-BRK)
Graphics Processor	NVIDIA® GeForce GT 1030 (Pascal Architecture)
Bus Interface	PCI Express 3.0 (OpenGL® 4.5 API support)
Engine Core Clock	OC Mode: 1265 MHz (Base) / 1506 MHz (Boost) Gaming Mode: 1228 MHz (Base) / 1468 MHz (Boost)
NVIDIA CUDA Cores	384 Processing Units
Video Memory Config	2GB GDDR5 Memory
Memory Bus Interface	64-bit Memory Bus (6008 MHz Clock Speed)
Digital Max Resolution	4096 x 2160 Pixels (Supports 4K UHD displays via HDMI)

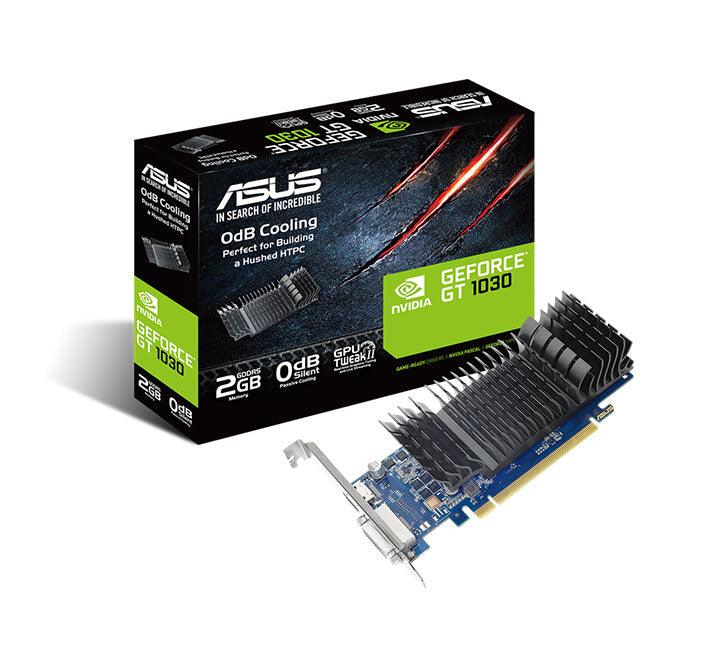

I/O Display Interfaces	1x Native HDMI 2.0b | 1x Native DVI-D
Multi-Display Limit	Up to 2 Monitors concurrently; HDCP Support Yes (v2.2)
Power Requirements	Recommended System Power Unit: 300W | No External Power Cable Required
Form Factor / Slots	Low Profile Layout, Single-Slot height compatible bracket frame, 2-Slot depth footprint due to heatsink fins
Physical Dimensions	17.3 x 6.9 x 4.0 cm (6.8" x 2.7" x 1.6" sleek profile)
