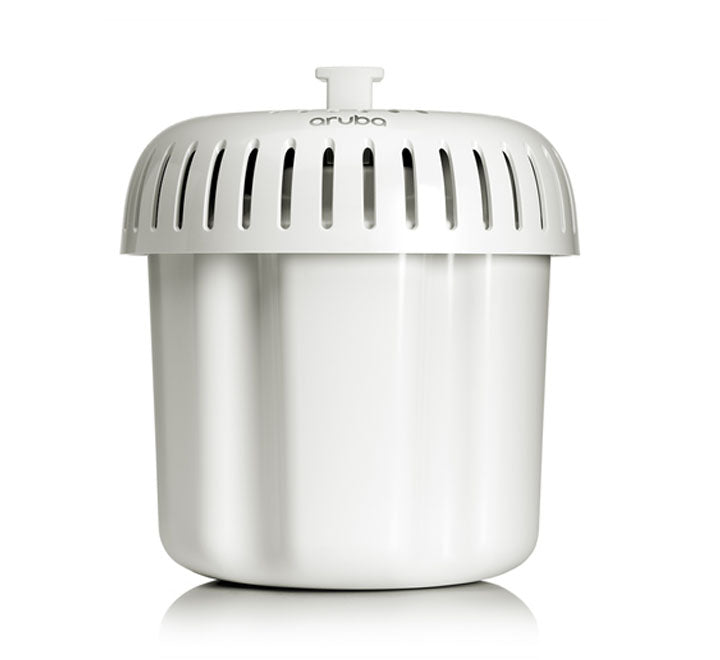

Aruba AP-575 (RW) Wifi 6 Outdoor Access Point (R4H17A)

Industrial-Grade, Weatherproof Wi-Fi 6 Performance for High-Density Outdoor Environments

Extend your enterprise network into harsh open-air environments without compromising on speed or security. The Aruba AP-575 RW Wi-Fi 6 Outdoor Access Point (R4H17A) is a heavy-duty, hardened wireless solution engineered to deliver maximum performance in extreme conditions. Perfectly suited for industrial yards, open-air shipping docks, outdoor university campus squares, luxury resort pools, and high-density public venues, this dual-radio 802.11ax access point provides uncompromised reliability. Encased in a rugged IP66/IP67 rated enclosure, the AP-575 delivers sweeping omnidirectional coverage while resisting wind, driving rain, dust storms, and extreme operational temperatures.

Key Features & Benefits

• High-Speed Outdoor Wi-Fi 6 Architecture: Delivers an aggregate maximum wireless throughput rate of up to 2.55 Gbps (2.4 Gbps over 5GHz and 574 Mbps over 2.4GHz) powered by 4x4 MU-MIMO and OFDMA.
• Industrial Weatherproof Engineering: Fully certified with IP66 and IP67 industrial seals to survive heavy rain, sub-zero freeze cycles, intense heat waves, and high moisture levels without internal component corrosion.
• Integrated Smart Omnidirectional Antennas: Built-in internal antennas are mathematically optimized to radiate a continuous, balanced 360-degree wireless horizontal beam pattern, eliminating directional blind spots.
• Advanced HPE Aruba ClientMatch: Keeps mobile and roaming outdoor clients connected smoothly by automatically pushing them onto the strongest nearby radio signal, solving outdoor range attenuation and sticky-client drops.
• Multi-Protocol IoT Gateway Integration: Features internal Bluetooth Low Energy (BLE 5.0) and Zigbee radios, allowing businesses to roll out proximity messaging, automated lighting control, and outdoor asset-tracking tracking tags.
• Resilient Network Uplink Options: Outfitted with a high-capacity 2.5 Gbps Smart Rate Ethernet port alongside a secondary Gigabit Ethernet link to provide hardware redundancy and failover protection.

Technical Specifications

Hardware Element	Detailed Engineering Specifications
Manufacturer SKU / ID	R4H17A (Aruba AP-575 Rest-of-World Variant)
Wireless Specification	Wi-Fi 6 (802.11ax) | Dual-Radio, 4x4 MIMO at 5GHz & 2x2 MIMO at 2.4GHz
Combined Wireless Speeds	5 GHz Band: Up to 2.4 Gbps | 2.4 GHz Band: Up to 574 Mbps
Primary Uplink Interface	1 x HPE Smart Rate 100/1000/2500BASE-T RJ-45 Port (supports PoE Input)
Secondary Uplink Interface	1 x 10/100/1000BASE-T RJ-45 auxiliary network interface
Antenna Architecture	4 x Built-in omnidirectional Downtilt antennas (Peak Gain: 4.6 dBi at 5GHz, 4.0 dBi at 2.4GHz)
Weatherization Protection	IP66 and IP67 ratings for wind-blown dust, water jets, and complete immersion thresholds
Operational Temp Window	-40°C to +65°C (-40°F to +149°F) with full solar loading insulation
Power Sourcing Allocation	Power over Ethernet input supported (IEEE 802.3at PoE+ Class 4 compliant)
Peak System Consumption	25.6 Watts max under full wireless transmission and internal heating loads
Physical Measurements	23.0 x 24.0 x 27.0 cm (9.1 x 9.4 x 10.6 inches)
Net Hardware Weight	2.40 kg (5.30 lbs)
