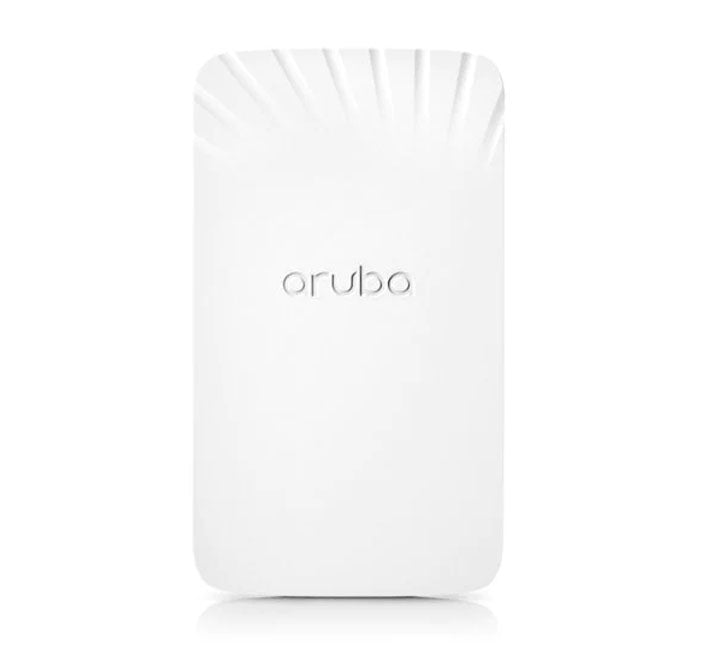

Aruba AP-505H (RW) Wifi 6 Remote Access Points Hospitality (R3V46A)

Premium Wi-Fi 6 Connectivity and Multi-Port Switching Purpose-Built for Hospitality, Remote Work, and Micro-Branches

Deliver enterprise-grade wireless speeds alongside hardwired local switching in one sleek, wall-mountable profile. The Aruba AP-505H RW Wi-Fi 6 Remote Access Point (R3V46A) is a multi-functional, unified hospitality access point engineered to meet modern, high-density device demands. Perfect for premium hotel rooms, clinic exam spaces, student dormitories, and home-based executive offices, this dual-radio 802.11ax access point maximizes spatial efficiency. It functions simultaneously as an advanced Wi-Fi router, an integrated 4-port Gigabit Ethernet switch featuring PoE out, and an IoT gateway to manage smart room components effortlessly.

Key Features & Benefits

• Blazing-Fast Wi-Fi 6 (802.11ax) Performance: Combines a maximum aggregate data rate of 1.5 Gbps (1.2 Gbps over 5GHz and 287 Mbps over 2.4GHz) with OFDMA and MU-MIMO architectures to eliminate lag in device-crowded rooms.
• Integrated 4-Port Local Switching Array: Built-in base switch features 4 downstream Gigabit RJ-45 ports to plug in hardwired local assets like smart IPTVs, VoIP desk phones, or printing hubs without adding a second desk switch.
• Convenient PoE Downstream Output: Port E1 is engineered with PoE out (Power over Ethernet) capability, letting you route power directly into downstream peripherals like IP phones, cutting out external wall-wart power adapters.
• Unified IoT-Ready Radio Framework: Native Bluetooth Low Energy (BLE 5.0) and Zigbee radios are built straight into the core chassis, simplifying the layout of proximity sensors, asset trackers, and automated hospitality smart-locks.
• Aruba ClientMatch Optimization: Continually groups roaming mobile clients onto the single best-performing radio band and nearby access point, preventing "sticky clients" from reducing overall channel performance.
• Versatile Deployment Flexibilities: Can be set up as a controllerless Instant AP cluster managed locally, a cloud-coordinated element via Aruba Central, or a secure remote workplace micro-branch endpoint.

Technical Specifications

Hardware Category	Detailed Engineering Specifications
Manufacturer SKU / ID	R3V46A (Aruba AP-505H Rest-of-World Variant)
Wireless Standard	Wi-Fi 6 (802.11ax) | Dual-Radio 2x2 MIMO architecture
Maximum Data Rates	5 GHz Band: Up to 1.2 Gbps | 2.4 GHz Band: Up to 287 Mbps
Physical Uplink Ports	1 x 10/100/1000BASE-T RJ-45 (Back) + 1 x Smart Rate 2.5G alternative uplink interface (Bottom)
Physical Downlink Ports	4 x 10/100/1000BASE-T RJ-45 local ports (Port E1 configured with IEEE 802.3af PoE Out capability)
Antenna Architecture	Integrated directional smart antennas with peak gains of 5.2 dBi (5GHz) and 4.3 dBi (2.4GHz)
Power Sourcing Inputs	Supports Power over Ethernet (PoE 802.3af/at standard via uplink) or External 12V DC Adapter (sold separately)
IoT Radio Options	Integrated Bluetooth 5.0 Low Energy (BLE) + Zigbee (802.15.4 infrastructure)
Maximum Power Draw	14W typical (excluding local downstream PoE output demands)
Mounting Profiling	Fits standard single-gang electrical wall box (alternative desk-stand kit option supported)
Physical Dimensions	15.0 x 8.6 x 4.0 cm (5.9 x 3.4 x 1.6 inches)
Net Hardware Weight	360 g (0.80 lbs)
