Product details

Description

Pre-Order Date: lead time 4 ~ 9 months

APC NetShelter Basic Rack PDU AP7553 Zero-U 32A 230V (20) C13 & (4) C19 Outlets

Deliver reliable, dependable power distribution to your high-density server racks and network enclosures with the APC NetShelter Basic Rack PDU AP7553. Designed to optimize space inside data centers and IT closets, this Zero-U vertical PDU leaves valuable rack U-space open for IT equipment while offering 24 total outlets powered by an IEC 309 32A inlet.

Key Features

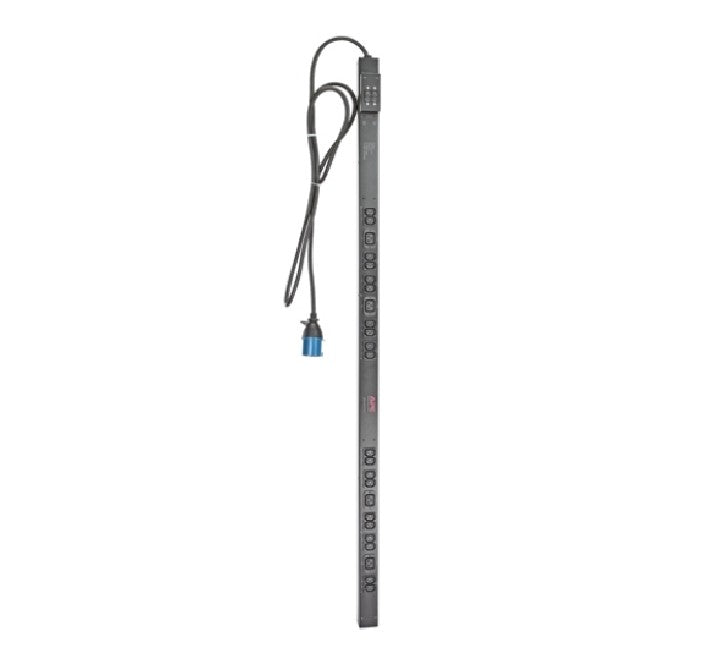

  • Zero-U Vertical Mounting: Mounts vertically in the rear of the rack without consuming valuable equipment U-space, improving airflow and organization.
  • High-Density Outlets: Equipped with 20× IEC 320 C13 and 4× IEC 320 C19 outlets to accommodate diverse server and switch power requirements.
  • Reliable Power Distribution: Powered by an IEC 309 32A inlet, designed to safely distribute high-amperage single-phase power across demanding IT assets.
  • Rugged Aluminum Architecture: Built with a durable, commercial-grade chassis engineered for continuous, mission-critical data center environments.

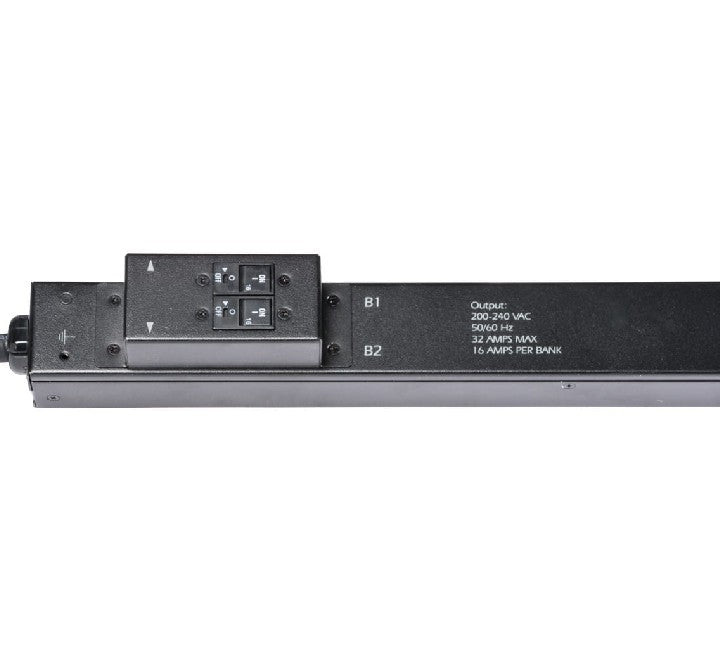

  • Toolless Installation: Features quick-release mounting pegs for fast, secure toolless installation into compatible NetShelter and standard server racks.
  • Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Technical Specifications

Specification Category Details
Input Voltage / Current 230V, 32A Single Phase, 50/60 Hz

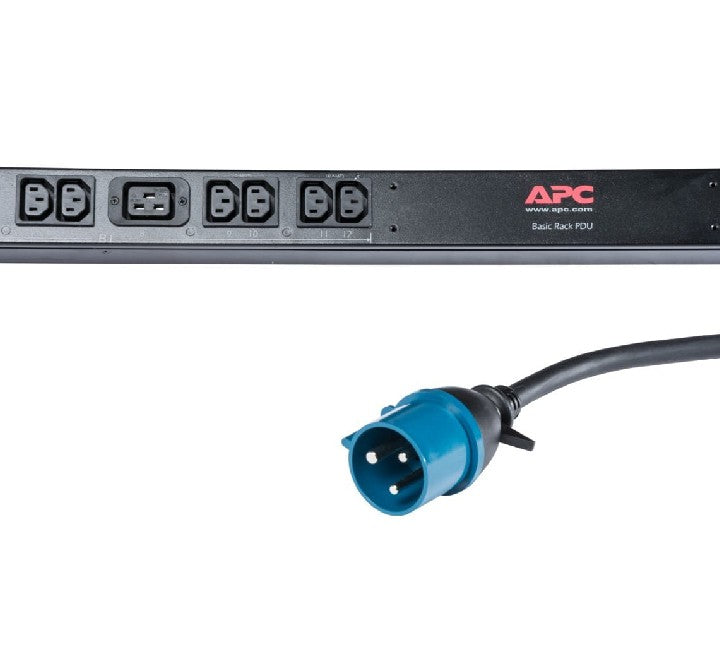

Input Connection IEC 309 32A 2P+E (Blue)
Output Receptacles (20) IEC 320 C13, (4) IEC 320 C19
Maximum Total Load 7.4 kW
Mounting Style Zero-U Vertical Rack-Mount (Toolless mounting capability)
Dimensions (H x W x D) 63.9 x 2.2 x 1.7 in. (1623 x 56 x 44 mm)
FAQs

How many outlets does the AP7553 have?

24: 20 C13 and 4 C19.

What does Zero U mean?

It mounts vertically at the rear of the rack, using no rack units.

What input does it use?

An IEC 309 32A inlet, 230V single-phase.
