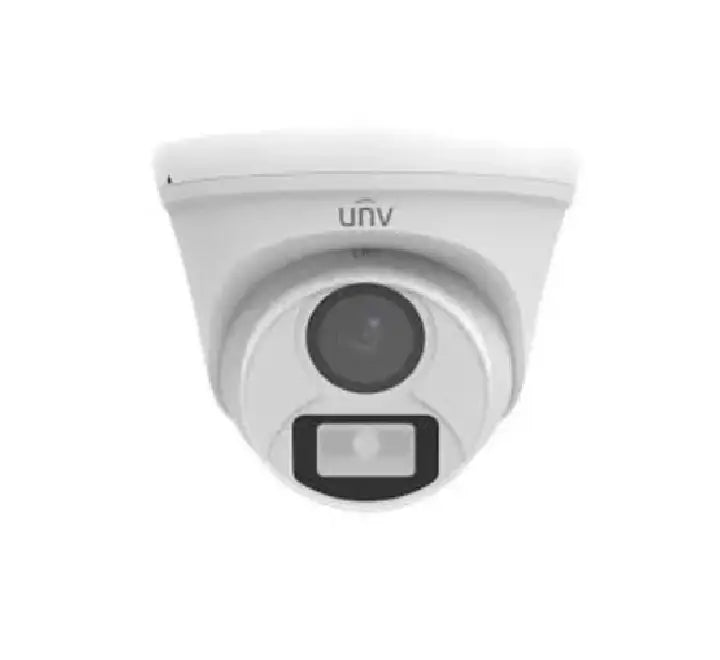

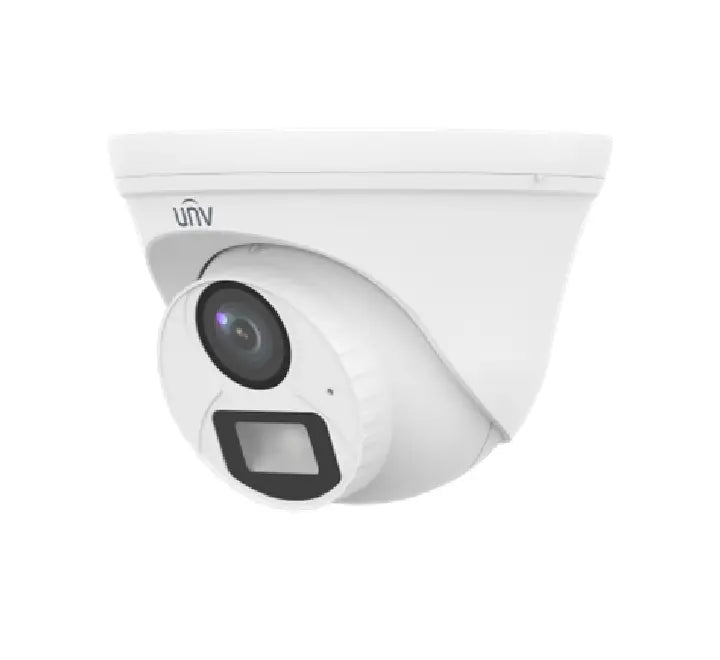

Intelligent 24/7 Color Security: UNV UAC-T115-AF40-DL 5MP Analog Turret Camera
Upgrade your security grid with the UNV UAC-T115-AF40-DL, a premium 5MP Fixed Dual-Light Turret Analog Camera engineered by Uniview. Merging elite ColorHunter optics with intelligent illumination, this analog camera captures vivid, full-color evidence whenever people or vehicles are detected. Built with a specialized 4.0mm precision lens, this model delivers a slightly narrower, more focused angle of view than standard wide lenses—making it the ideal choice for monitoring corridors, gates, alleys, and specific checkout counters with pristine clarity.
The UAC-T115-AF40-DL is a highly adaptable 4-in-1 hybrid camera that supports TVI, AHD, CVI, and CVBS signal formats, integrating flawlessly into your existing DVR setups. It also features an integrated microphone, allowing you to stream crystal-clear audio alongside HD video directly over standard coaxial cables (Audio-over-Coax) without any extra wiring.
Key Features
- High-Quality 5MP Pro Resolution: Records crisp 2880 x 1620 video streams at a native 16:9 widescreen layout, eliminating stretched imaging common in standard monitors.
- Smart Dual-Light Technology: Intelligently alternates light modes. Stays in discreet infrared mode in complete darkness, then activates the warm white light to capture color video when events trigger.
- ColorHunter Low-Light Performance: A large F1.6 aperture structure allows the high-performance 1/2.7-inch CMOS sensor to draw in maximum light, minimizing noise in low-lux conditions.
- 4.0mm Precision Fixed Lens: Provides a balanced 90.0° horizontal field of view, ideal for tracking forensic details and identifying faces at longer distances.
- Built-in Microphone & AoC: Eliminates the hassle of running separate audio lines by transmitting clear, synchronous audio directly through your coaxial network.
- IP67 Weatherproof Construction: Designed with a highly resilient dust-tight and waterproof housing built to survive harsh monsoon downpours and high temperatures in Myanmar.
- 4-in-1 Adaptive Signaling: Conveniently switch between TVI, AHD, CVI, and CVBS signals via the OSD configuration menu to match any mainstream DVR or UNV XVR system.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview (UNV) |
| Model | UAC-T115-AF40-DL |
| Sensor Type | 1/2.7-inch Progressive Scan CMOS |
| Max Resolution | 5 Megapixel (2880 × 1620) |
| Focal Length / Lens | 4.0 mm Fixed Lens (M12 Mount) |
| Angle of View (FOV) | Horizontal: 90.0° | Vertical: 48.0° | Diagonal: 109.1° |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON) | 0 lux with White Light On |
| Illuminator Hardware | Two Infrared (IR) Illuminators; One Warm White-Light Illuminator |
| Illumination Distance | IR Distance: Up to 20m (65.6 ft) | White Light: Up to 20m (65.6 ft) |
| Video Signal Formats | TVI / AHD / CVI / CVBS (Switchable) |
| Wide Dynamic Range | Digital WDR (DWDR) & 2D Digital Noise Reduction (2D DNR) |
| Audio Hardware | Built-in Microphone (Audio over Coaxial supported on TVI/CVI modes) |
| Physical Interfaces | 1 x BNC Video Interface, 1 x 5.5mm DC Power Plug |
| Ingress Protection | IP67 Certified Dustproof & Waterproof |
| Power Profile | DC 12V (±25%) | Maximum Consumption: 3.0W |
| Dimensions / Material | Φ118mm × 96mm (Diameter × Height) | High-Grade Plastic Casing |
| Weight | 186g (0.41 lb) |
| Warranty | Official 2-Year Limited Hardware Warranty |
