Description

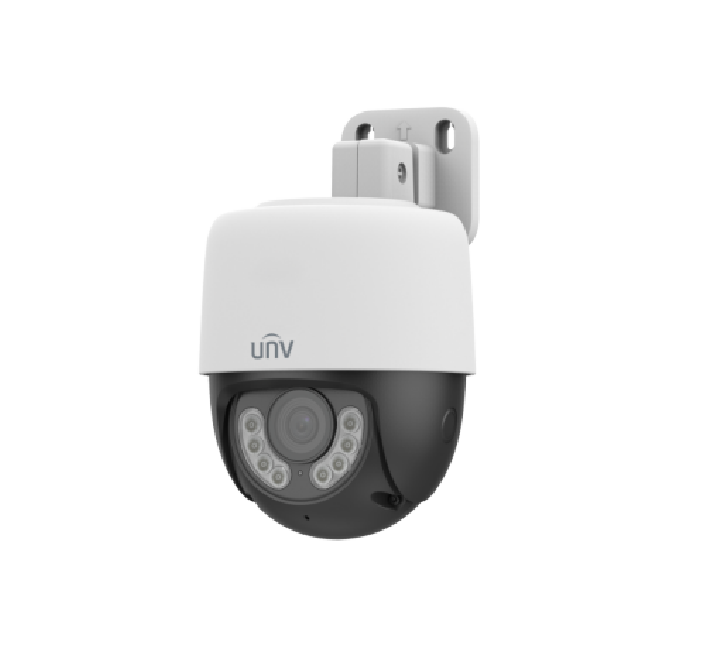

UNV UAC-P112-AF40-W 2MP ColorHunter Fixed Warm Light PT Analog Camera
- Model: UAC-P112-AF40-W
- Max Resolution: 2 MP
- Sensor Size : 1/2.9" CMOS
- Min. Illumination: 0.05 lux (F1.6, AGC ON)
0 (white light on) -
Lens
- Focus : 4.0 mm
- Lens Mount : M12
- Angle of View (H): 83.8°
- Angle of View (V) : 42.7°
- Angle of View (D) : 100.1°
-
Illuminator
- Illuminator Number: Eight white-light illuminators
- Illumination Distance: 30m
- Lifetime: ≥ 20000 hours
-
Video
- Resolution
- 1080P: 1920(H)×1080(V)
- 720P: 1280(H) ×720(V)
- Frame Rate
- TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
- AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
- CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
- CVBS: PAL, NTSC
- Shutter Time
- PAL: 1/25s-1/50000s，
- NTSC: 1/30s-1/50000s
-
- Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
- Day/Night : 24/7 color images
- Digital Noise Reduction: 2D/3D
- White Balance : Two modes Auto (default), Manual
- WDR : DWDR
- Smart IR: Support
- Flip: Supports 180°horizontal flip, 180°vertical flip
- Digital Defog : N/A
-
PTZ
- Pan Range : 0° to 345°
- Pan Speed :1° to 40°/s
- Tilt Range : 0° to 90°
- Tilt Speed : 1° to 30°/s
- Number of Presets: 32
- Control Mode: 485/BNC
- Patrol : N/A
- Baud Rate: 9600 bps/4800 bps/2400 bps/1200 bps
-
Interface
- Power Interface: 5.5 mm Power Interface
- Video Output : BNC, supports TVI/AHD/CVI/CVBS
- RS485 : Support
-
Operating Environment
- Temperature: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4kV for power&4kV for video output interfaces
-
Ingress Protection : IP66
-
General
- Power DC 12 V ± 25%
- Power: Consumption: MAX 8.5W
- Mount: Wall Mount, Pole Mount, Corner Mount, Pendant Mount
- Dimensions: Φ118mm*96mm (diameter*height)
- Material: Graphene + Plastic
- Weight : 477g(1.05lb)
- OSD Menu Language: 11 Languages
- English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,
- Portuguese
- (Brazil), Russian, Turkis
- Warranty: 2 Years
-
Overview
UAC-P112-AF40-W is a 2MP ColorHunter HD PT analog camera with a high-performance 1/2.9-inch CMOS sensor. It supports
TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial
cable types, the camera can achieve low-cost, long-distance, and anti-interference megapixel HD video transmission without time delay.
It supports audio input, synchronous transmission of audio and video, and provides 24/7 color images.The pan&tilt design allows the
camera to rotate horizontally and vertically to achieve a wide range of monitoring.
Features
- 2MP high quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP66 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports 0 to 345° pan rang
- Supports digital defog
