UNV UAC-T112-AF28-DL 2MP ColorHunter With Smart Dual Light Turret Analog Camera

UNV UAC-T112-AF28-DL 2MP ColorHunter With Smart Dual Light Turret Analog Camera

• Model:   UAC-T112-AF28-DL

• Max Resolution:  2 MP

• Sensor Size : 1/3.0" CMOS

• Min. Illumination: 0.01 lux (F2.0, AGC ON)
                                0 lux (Illuminator ON)
• Lens

• Focus :  2.8 mm

• Lens Mount :  M12

• Angle of View (H):  91.5°

• Angle of View (V) :  51.2°

•  Angle of View (D) : 106.3°

• Illuminator

• Illuminator Number: Two IR illuminators; One white-light illuminator

• Illumination Distance: IR: 20m (65.6 ft)
  White light: 20m (65.6 ft)

• Lifetime:   ≥ 60000 hours

• Video

• Resolution

• 1080P: 1920(H)×1080(V)

• 720P: 1280(H) ×720(V)

• Frame Rate

• TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps

• AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVBS: PAL, NTSC

• Shutter Time

• PAL: 1/25s-1/50000s，

• NTSC: 1/30s-1/50000s

• Image

• Exposure Mode:     Four modes: Global (default), BLC, HLC, DWDR

• Day/Night :   Three modes: Auto (default), Day, Night

• Digital Noise Reduction: 2D/3D

• White Balance :Two modes Auto (default), Manual

• WDR :  DWDR

• Smart IR:   Support

• Flip:    Supports 180°horizontal flip, 180°vertical flip

• Digital Defog : N/A

• Audio

• Built-in Mic :  Support

• Camera Audio

• TVI: 1080P@25fps, 1080P@30fps

• CVI: 1080P@25fps, 1080P@30fps

• Interface

• Power Interface:    5.5 mm Power Interface

• Video Output :  BNC, supports TVI/AHD/CVI/CVBS

• Operating Environment

• Temperature:  -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

• Humidity:  ≤ 95% RH (non-condensing)

• Surge Protection:   4kV for power&4kV for video output interfaces

• General

• Power DC 12 V ± 25%

• Power:  Consumption: MAX 2.8W

• Mount:   Wall Mount, Pole Mount, Corner Mount, Pendant Mount

• Dimensions:   Φ118mm*96mm (diameter*height)

• Material:  Plastic

• Weight :184g (0.41lb)

• OSD Menu Language: 11 Languages

•  English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,
• Portuguese

• (Brazil), Russian, Turkis
• Protection:
  IP67 (IEC 60529)
• Warranty: 2 Years



• Overview
  Overview

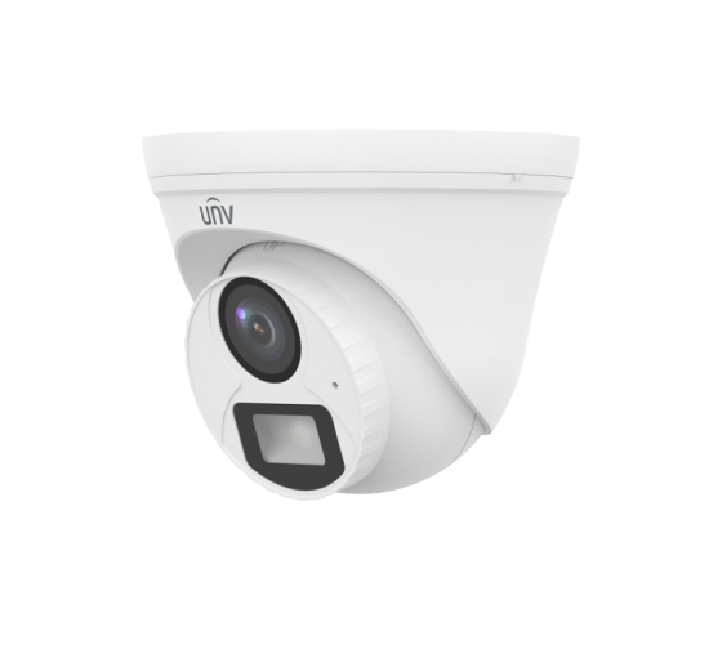

  UAC-T112-AF28(40)-DL is a 2MP ColorHunter with smart dual light turret analog camera with a high-performance 1/3-inch CMOS sensor
  and 3D noise reduction technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of
  networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference
  mega-pixel HD video transmission without time delay. The camera also supports audio input and synchronous transmission of audio and
  video. With UNV XVR, our ColorHunter cameras equipped with Smart Dual Light can intelligently switch between IR and white light when
  detecting a target or not, offering flexible lighting options and enhancing security

  Features

• High quality imaging with 2MP resolution

• TVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• Smart Dual Light (only TVI)

• 3D noise reduction technology delivers clean and sharp images

• Supports 180° horizontal flip, 180° vertical flip

• OSD configuration menu, easy to operate

• IP67 waterproof and dustproof design, high reliability

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables
