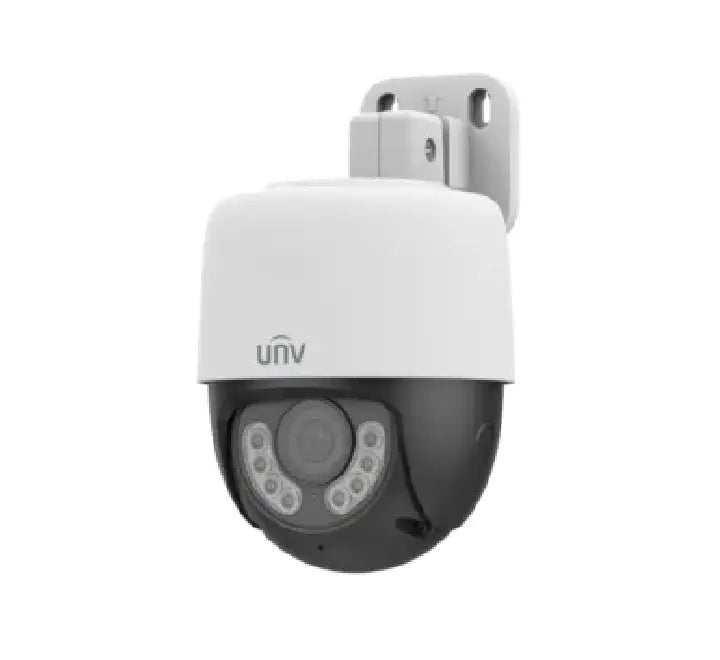

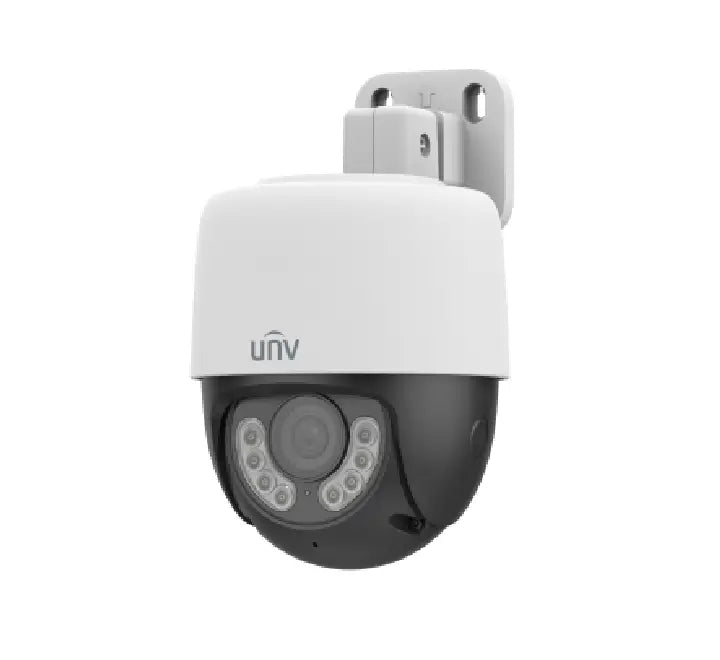

Versatile 24/7 Full-Color Tracking: UNV UAC-P112-AF40-W 2MP PT Analog Camera
Break free from blind spots with the UNV UAC-P112-AF40-W, a revolutionary 2MP ColorHunter Pan & Tilt (PT) Analog Camera engineered by Uniview. Merging full-color night imaging with motorized sweeping mobility, this high-performance camera lets you actively control your field of view without upgrading to expensive IP tracking infrastructure. Equipped with a motorized base, it delivers a 0° to 345° pan range and a 0° to 90° tilt range, making it the perfect choice for tracking expansive spaces like parking lots, warehouses, retail floors, and compound perimeters.
Backed by Uniview's industry-leading ColorHunter Technology, this camera features 8 built-in warm-white light illuminators that completely eliminate grainy, black-and-white night footage. By throwing a soft, highly efficient light up to 30 meters, it uncovers vivid, full-color forensic details around the clock. Additionally, the integrated high-fidelity microphone transmits synchronized video and audio over a single standard coaxial cable, streamlining your physical installation.
Key Features
- Active Motorized Pan & Tilt: Remotely sweep your environment via your DVR interface or controller. Supports a wide 345° horizontal pan and a 90° vertical tilt with up to 32 programmable presets.
- 24/7 ColorHunter Full-Color Imaging: Uses a highly sensitive 1/2.9-inch CMOS sensor paired with an F1.6 large aperture to deliver rich color data even in absolute darkness.
- 8-Array Warm Light Illuminators: Casts a gentle, anti-glare white light across a 30-meter (98.4 ft) range, instantly acting as a visible deterrent to intruders.
- Built-in Microphone with Audio-over-Coax (AoC): Captures crystal-clear ambient audio and sends it over the same coaxial network cable—no separate audio line required.
- Universal 4-in-1 Signal Compatibility: Supports TVI, AHD, CVI, and CVBS formats. Easily upgrade old analog infrastructures without losing backward compatibility.

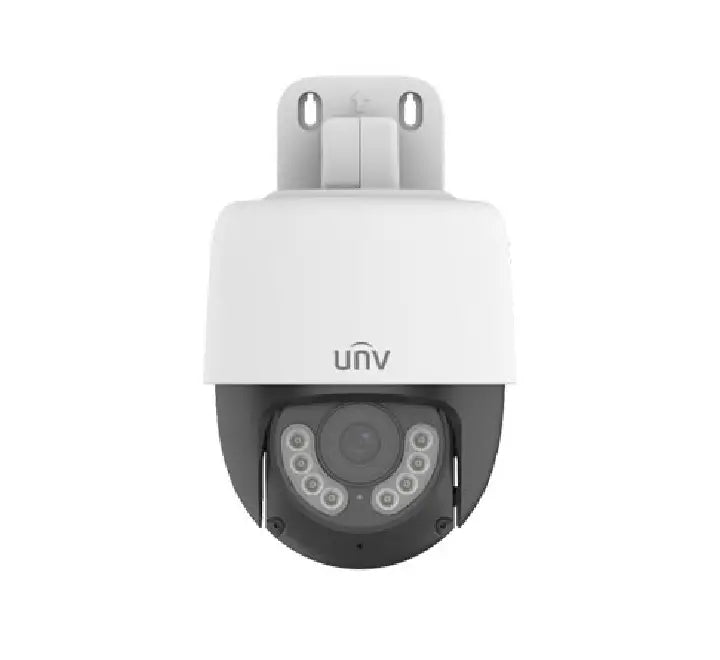

- IP66 Weatherproof Graphene Casing: Manufactured with an innovative graphene and structural plastic compound that withstands extreme weather conditions from -30°C to 60°C.
- Flexible Coaxial and RS485 Control: Move and adjust the camera using convenient Up-the-Coax (UTC) telemetry commands directly through your compatible DVR software interface.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview (UNV) |
| Model | UAC-P112-AF40-W |
| Sensor Type | 1/2.9-inch Progressive Scan CMOS |
| Native Resolution | 2 Megapixel / 1080P (1920 × 1080) |
| Lens Focal Length | 4.0 mm Fixed Lens (M12 Mount) |
| Lens Field of View (FOV) | Horizontal: 83.8° | Vertical: 42.7° | Diagonal: 100.1° |
| Pan Range & Speed | 0° to 345° Range | Manual Speed: 1° to 40°/s |
| Tilt Range & Speed | 0° to 90° Range | Manual Speed: 1° to 30°/s |
| System Presets | 32 Programmable Preset Positions |
| Night Illuminators | 8 x High-Efficiency Warm White-Light LEDs |
| Illumination Distance | Up to 30 meters (98.4 ft) Full Color Range |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON) | 0 lux with White Light Activated |
| Video Signal Formats | TVI / AHD / CVI / CVBS via BNC interface |
| Image Enhancements | Digital WDR (DWDR), 2D/3D DNR, BLC, HLC, Digital Defog |
| Integrated Audio | Built-in Mic (Audio over Coaxial on supported TVI/CVI platforms) |
| Telemetry Control Mode | Coaxial Control (UTC) / RS485 Interface (Baud rate up to 12000bps) |
| Ingress Protection Rating | IP66 Waterproof & Dustproof |
| Power & Consumption | DC 12V (±25%) | Max Power Consumption: 8.5W |
| Dimensions & Weight | Φ118mm × 190mm | Weight: 477g (1.05 lb) |
| Housing Material | Composite Graphene + Reinforced Weather-Resistant Plastic |
