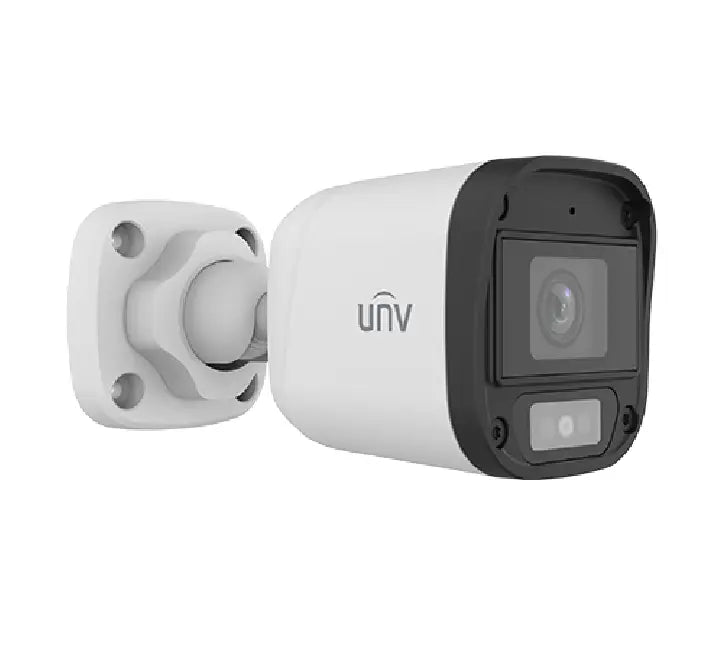

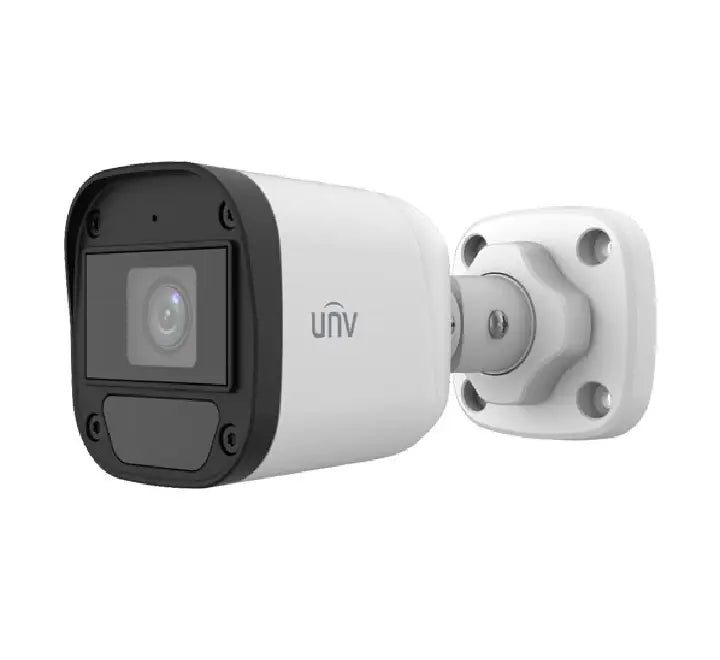

UNV UAC-B115-AF40-DL 5MP ColorHunter Fixed Dual Light Bullet Analog Camera (4.0mm)
Secure your premises with targeted high-definition surveillance using the UNV UAC-B115-AF40-DL. Engineered by Uniview, this premium 5MP ColorHunter analog bullet camera features a high-performance 1/2.7-inch CMOS sensor paired with a 4.0mm fixed lens. This combination yields a focused 90-degree field of view, making it the perfect equipment choice for tracking tighter zones, structural corridors, storefront entry points, or deep driveways with stunning clarity.
Built to fit effortlessly into almost any infrastructure, this 4-in-1 camera supports TVI, AHD, CVI, and CVBS video standards over standard coaxial cabling, ensuring crisp, latency-free audio and video transmission with high anti-interference protection. When integrated with a UNV XVR, the integrated Smart Dual Light technology monitors using stealthy Infrared illumination, automatically flashing vivid White Light LEDs only when an active target is detected to capture essential full-color forensic details.
Key Features
- 5MP Ultra-HD Target Resolution: Delivers crystalline imagery up to 2880 x 1620 pixels for precision object tracking.
- Optimized 4.0mm Lens: Provides a refined 90.0° horizontal coverage angle, optimized for longer viewing distances and specific zone containment.

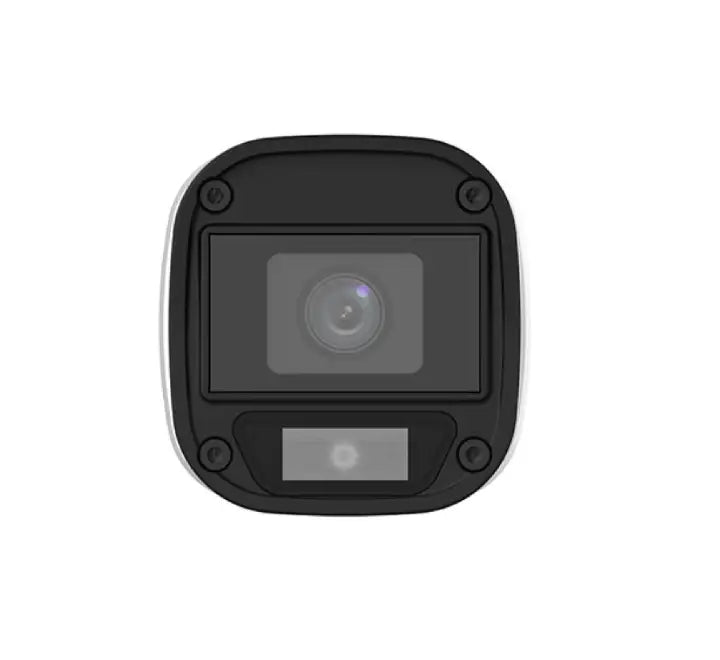

- Smart ColorHunter Dual Light: Dynamically switches from standard IR night mode to continuous, full-color white light illumination upon target identification.
- Universal 4-in-1 Adaptability: Easy native system integration across older and newer TVI, AHD, CVI, and legacy CVBS standard systems.
- Coaxial Audio Sync: Features a high-sensitivity built-in microphone that feeds live audio alongside high-definition video through your existing coaxial network line.
-
Industrial IP67 Enclosure: Certified completely waterproof and dustproof to withstand severe outdoor deployments ranging from -30°C to 60°C
Technical Specifications
Specification Details Model Name UAC-B115-AF40-DL Image Sensor 5 Megapixel, 1/2.7" Progressive Scan CMOS Maximum Resolution 2880 (H) × 1620 (V) @ 25fps Minimum Illumination 0.005 lux (F1.6, AGC ON), 0 lux with active Light Array Focal Length 4.0 mm @ F1.6 fixed focal lens (M12 mount) Field of View (FOV) Horizontal: 90.0°, Vertical: 48.0°, Diagonal: 109.1° Illuminator Specs Two (2) Infrared Illuminators, One (1) Warm White Light LED Night Vision Distance IR Range up to 20m (65.6 ft) / White Light up to 20m (65.6 ft) Signal Formats TVI, AHD, CVI, CVBS (BNC Video Interface) Audio Hardware Integrated high-sensitivity mic (coaxial audio stream) Image Enhancements Global, BLC, HLC, DWDR, 2D Digital Noise Reduction Weather Protection IP67 Certified Dustproof and Waterproof Operational Environment -30°C to 60°C (-22°F to 140°F), Humidity ≤ 95% RH Surge Protection Rating 4 KV for power line and 4 KV for video input channels Power Consumption DC 12V (±25%), Max 3.0 Watts Physical Properties 140mm × 61mm × 65mm (L×W×H) | Material: Plastic | 150g
