Focused High-Definition Security: UNV UAC-B115-AF40 5MP Analog Bullet Camera

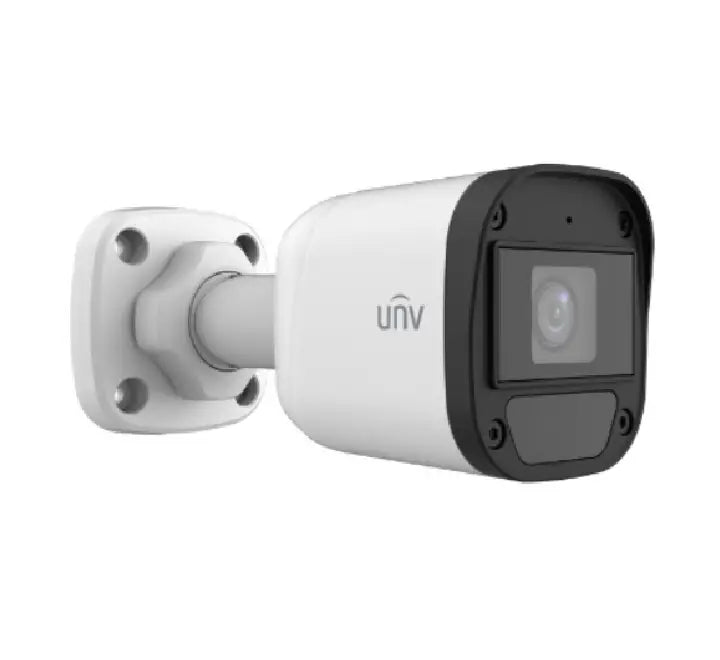

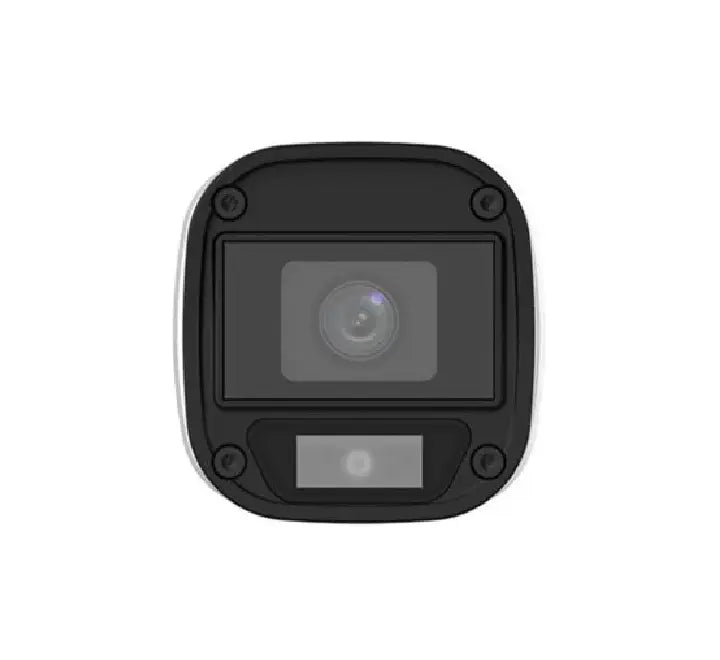

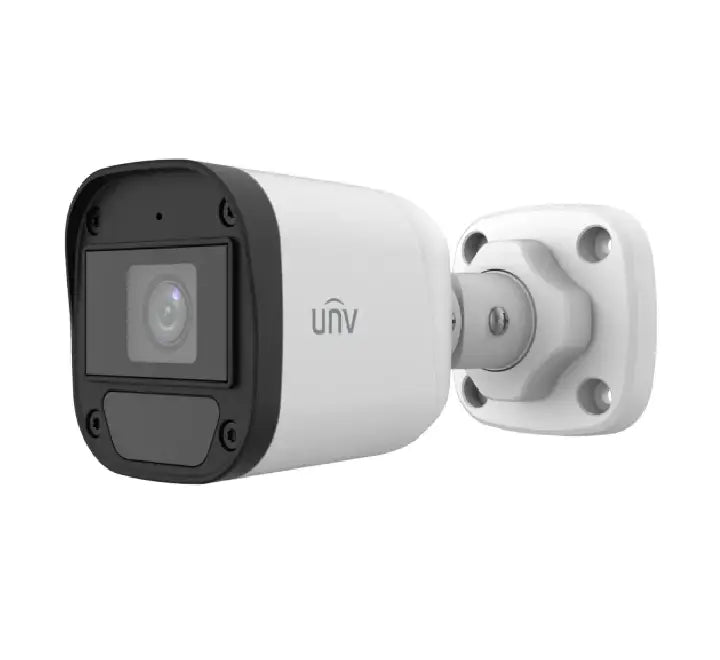

Incorporate elite clarity and focused target tracking into your security perimeter with the UNV UAC-B115-AF40, a high-performance 5MP Fixed IR Bullet Analog Camera developed by Uniview. Outfitted with a precision-engineered 4.0mm fixed lens, this bullet camera delivers a tighter, more focused 90-degree horizontal field of view compared to wide-angle versions. This makes it the ideal tool for tracking corridors, entry gates, alleys, and long perimeters where capturing clear forensic details at a distance is vital.
The UAC-B115-AF40 captures high-fidelity 5MP video at a native 16:9 widescreen layout, aligning perfectly with modern HD monitors to eliminate pixel distortion. Equipped with a dynamic 30-meter Smart IR sensor array, the camera prevents overexposure by dynamically scaling infrared intensity as objects move closer in the dark. It also features Audio-over-Coax (AoC) architecture, allowing its built-in microphone to stream real-time audio over standard coaxial cables with no extra wiring needed.
Key Features
- 5MP Native 16:9 Widescreen Clarity: Displays crisp 2880 x 1620 resolution. The true-to-life 16:9 aspect ratio prevents pixel stretching for precise target identification.
- 4.0mm Precision Fixed Lens: Provides a balanced 90.0° horizontal viewing range, optimizing facial recognition and forensic tracking at greater distances.
- 30-Meter Intelligent Smart IR: High-grade infrared matrix illuminates details up to 98 feet in complete pitch black, automatically modifying intensity to prevent overexposed close-ups.
- Built-in Microphone & Audio over Coax (AoC): Captures environmental audio and embeds it directly into your video stream over existing BNC coaxial lines.
- Versatile 4-in-1 Hybrid Output: Instantly switch between TVI, AHD, CVI, and CVBS signals via the OSD configuration menu to interface smoothly with mainstream DVR setups.
- IP67 Ruggedized Element Protection: Fully dust-tight and waterproof housing safely operates through severe tropical monsoons, lightning surges, and fluctuating temperatures.
- Flexible 3-Axis Adjustment Bracket: Simplifies setup with a heavy-duty physical bracket that allows quick panning, tilting, and rotating during wall or ceiling installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview (UNV) |
| Model | UAC-B115-AF40 |
| Image Sensor | 1/2.7-inch Progressive Scan CMOS |
| Effective Resolution | 5 Megapixel (2880 × 1620) |
| Focal Length | 4.0 mm Fixed Focal Lens (M12 Mount) |
| Field of View (FOV) | Horizontal: 90.0° | Vertical: 48.0° | Diagonal: 109.1° |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON) | 0 lux with Infrared On |
| Infrared Night Vision Range | Up to 30 meters (98.4 ft) with Smart IR optimization |
| Video Frame Rate | 5MP@25fps (TVI/AHD); 4MP@30fps (TVI/AHD/CVI) |
| Signal Video Formats | TVI / AHD / CVI / CVBS (Switchable over OSD Menu/UTC) |
| Image Adjustments | Digital WDR (DWDR), 2D DNR, BLC, HLC, Sharpness, Brightness |
| Audio Hardware | Built-in High Sensitivity Microphone (Audio-over-Coax supported) |
| Hardware Interfaces | 1 x BNC Coaxial Port, 1 x 5.5mm DC 12V Power Jack |
| Weatherproof Rating | IP67 Certified Dust and Waterproof Shielding |
| Operating Environment | Temperature: -30°C to 60°C (-22°F to 140°F) | Humidity: ≤ 95% RH |
| Power Profile | DC 12V (±25%) | Max Power Consumption: 3.3W |
| Physical Dimensions | 142mm × 63mm × 65mm (Length × Width × Height) |
| Chassis Material | High-Quality Engineering Plastic Casing |
| Weight | 135g (0.30 lb) |
