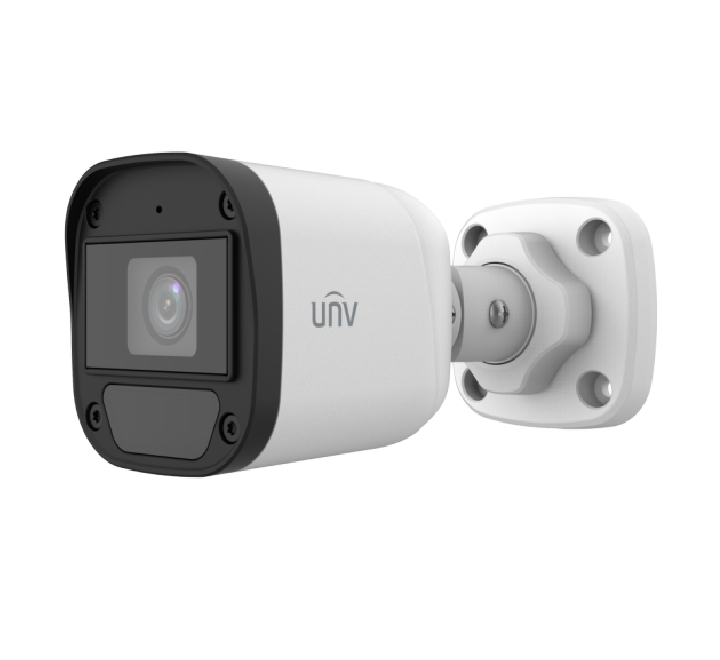

UNV UAC-B115-AF28 5MP Fixed IR Bullet Analog Camera

UNV UAC-B115-AF28 5MP Fixed IR Bullet Analog Camera

• Model:  UAC-B115-AF28

• Max Resolution:  5 MP

• Sensor Size : 1/2.7" CMOS

• Min. Illumination: 0.02 lux (F2.0, AGC ON)
                              0 lux (IR ON)
• Lens
• Focus :  2.8 mm

• Lens Mount :  M12

• Angle of View (H):  102.2°

• Angle of View (V) :  53.9°

•  Angle of View (D) : 124.8°


• Illuminator

• Illuminator Number: One IR illuminator

• Illumination Distance:  20m

• Lifetime:   ≥ 60000 hours


• Video

• Resolution
  5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
  4MP: 2560(H)×1440(V)
  1080P: 1920(H)×1080(V)


• Frame Rate
  TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVBS: PAL, NTSC


• Shutter Time
  PAL: 1/25s-1/50000s，
  NTSC: 1/30s-1/50000s


• Image

• Exposure Mode:     Four modes: Global (default), BLC, HLC, DWDR

• Day/Night :   Three modes: Auto (default), Day, Night

• Digital Noise Reduction: 2D

• White Balance- Two modes: Auto (default), Manual

• WDR :  DWDR

• Smart IR:   Support

• Flip:    Supports 180°horizontal flip, 180°vertical flip

• Digital Defog : N/A


• Audio

• Built-in Mic :  Support


• Camera Audio

• TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
• Interface

• Power Interface:    5.5 mm Power Interface

• Video Output :  BNC, supports TVI/AHD/CVI/CVBS


• Operating Environment

• Temperature:  -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

• Humidity:  ≤ 95% RH (non-condensing)

• Surge Protection:   4kV for power&4kV for video output interfaces


• General

• Power DC 12 V ± 25%

• Power:  Consumption: MAX 3.3W

• Mount:  Corner Mount&Pole Mount

• Dimensions:   142mm*63mm*65mm (L*W*H)

• Material:  Plastic

• Weight : 138g(0.30lb)

• OSD Menu Language: 11 Languages
   English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,Portuguese,(Brazil), Russian, Turkis
• Protection:
  IP67 (IEC 60529)
• Warranty: 2 Years


• Overview
  UAC-B115-AF28(40)-W is a 5MP ColourHunter fixed bullet analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports
  TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial
  cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay.
  The camera also supports audio input and synchronous transmission of audio and video.

• Features

• 5MP high quality imageTVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• Supports 180° horizontal flip, 180° vertical flip

• OSD configuration menu, easy to operate

• IP67 waterproof and dustproof design, high reliability

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables
