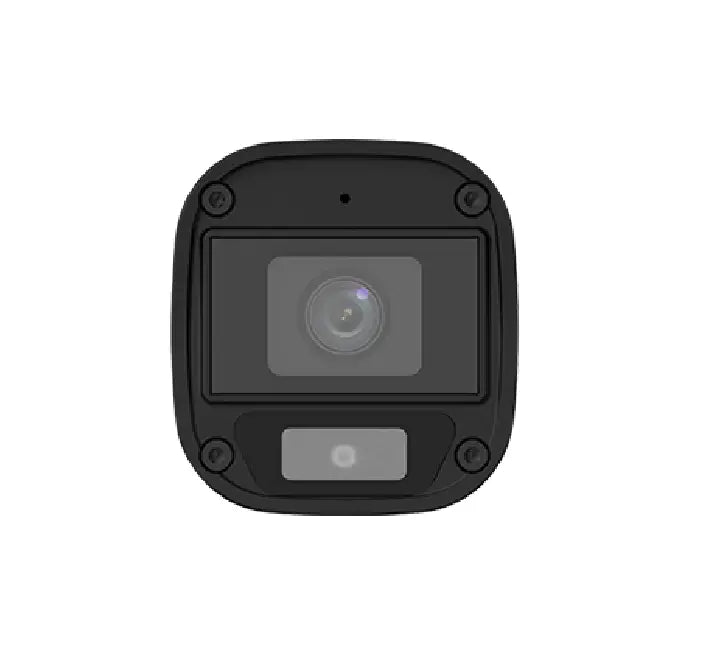

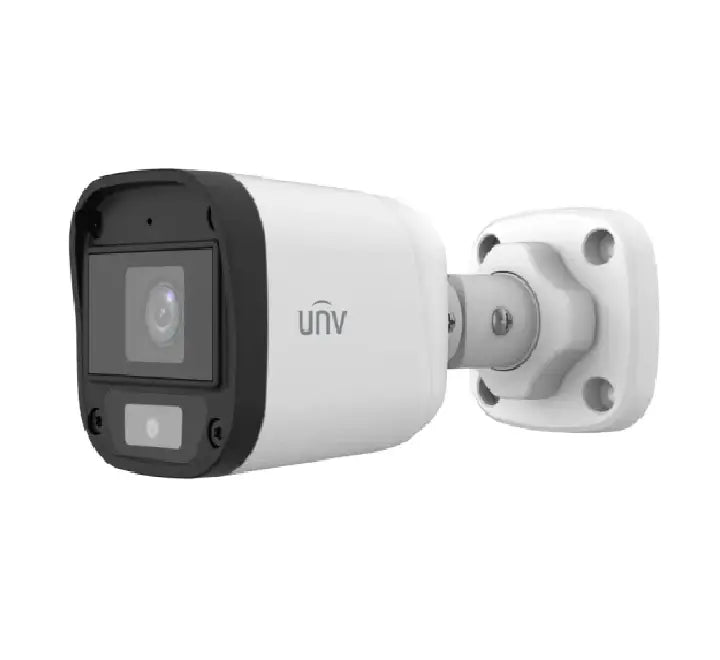

UNV UAC-B115-AF28-DL 5MP ColorHunter Fixed Dual Light Bullet Analog Camera
Upgrade your security infrastructure with the UNV UAC-B115-AF28-DL, a high-performance 5MP ColorHunter bullet analog camera designed by Uniview. Outfitted with a premium 1/2.7-inch CMOS sensor, this versatile surveillance camera delivers exceptional clarity and adaptive network flexibility by seamlessly supporting four video standards: TVI, AHD, CVI, and CVBS. Engineered for modern setups, it uses standard coaxial cables to transmit lag-free, high-definition audio and video over long distances with superior anti-interference capabilities.
The true standout feature is its Smart Dual Light technology. When paired with a UNV XVR, the camera intelligently switches between invisible Infrared (IR) lighting for discrete monitoring and a powerful White Light illuminator upon target detection—giving you full-color evidence right when you need it most. Safeguarded by an IP67-rated waterproof casing and complete with a built-in microphone, this analog bullet camera is the perfect, reliable solution for both indoor and outdoor security.
Key Features
- 5MP Ultra-HD Resolution: Captures crisp, high-fidelity images up to 2880 x 1620 pixels for superior forensic details.
- ColorHunter & Smart Dual Light: Intelligently alternates between sharp IR mode and vivid 24/7 full-color white light illumination when activity is detected.
- 4-in-1 Video Compatibility: One-click flexibility across TVI, AHD, CVI, and CVBS to effortlessly fit into any legacy or modern system setup.
- Built-In Microphone: Supports synchronous transmission of high-quality audio and video directly through a single coaxial cable.
- IP67 Weatherproof Reliability: Dust-tight and fully waterproof enclosure engineered to withstand harsh environments from -30°C to 60°C.
- Enhanced Image Tuning: Features Digital WDR (DWDR), Backlight Compensation (BLC), Highlight Compensation (HLC), and 2D Noise Reduction.
Technical Specifications
| Specification | Details |
|---|---|
| Model | UAC-B115-AF28-DL |
| Camera Sensor | 5 Megapixel, 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2880 (H) × 1620 (V) @ 25fps |
| Minimum Illumination | 0.005 lux (F1.6, AGC ON), 0 lux with Illuminator ON |
| Lens / Focal Length | 2.8 mm @ F1.6 fixed lens (M12 mount) |
| Angle of View (FOV) | Horizontal: 110.0°, Vertical: 57.0°, Diagonal: 130.0° |
| Illuminators | Two (2) IR Illuminators, One (1) White-Light Illuminator |
| Illumination Distance | IR up to 20m (65.6 ft) / White Light up to 20m (65.6 ft) |
| Video Formats Supported | TVI, AHD, CVI, CVBS (Analog BNC Output) |
| Audio Hardware | Built-in high-sensitivity microphone |
| Image Optimization | Global, BLC, HLC, DWDR, 2D DNR, Auto/Manual White Balance |
| Image Orientation | Supports 180° horizontal flip & 180° vertical flip |
| Ingress Protection | IP67 Waterproof & Dustproof certified |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F), Humidity ≤ 95% RH |
| Surge Protection | 4 KV for power and 4 KV for video interface |
| Power & Consumption | DC 12V (±25%), Max 3.0W |
| Dimensions & Weight | 140mm × 61mm × 65mm (L×W×H) | 150g (0.33lb) |
