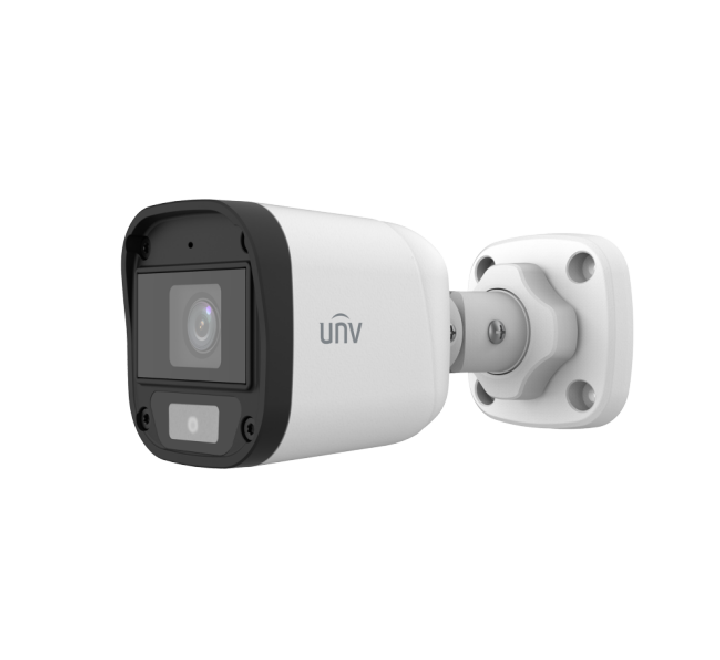

UNV UAC-B115-AF28-DL 5MP ColorHunter Fixed Dual-light Bullet Analog Camera

UNV UAC-B115-AF28-DL 5MP ColorHunter Fixed Dual-light Bullet Analog Camera

• Model:  UAC-B115-AF28-DL

• Max Resolution:  5 MP

• Sensor Size : 1/2.7" CMOS

• Min. Illumination: 0.005 lux (F1.6, AGC ON)
                               0 lux (Illuminator ON)
• Lens
• Focus :  2.8 mm

• Lens Mount :  M12

• Angle of View (H):  110.0°

• Angle of View (V) :  57.0°

•  Angle of View (D) : 130.0°


• Illuminator

• Illuminator Number: Two IR illuminators; One white-light illuminator

• Illumination Distance:  IR: 20m (65.6 ft)

• White light: 20m (65.6 ft)

• Lifetime:   ≥ 60000 hours


• Video

• Resolution
  5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
  4MP: 2560(H)×1440(V)
  1080P: 1920(H)×1080(V)


• Frame Rate
  TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVBS: PAL, NTSC


• Shutter Time
  PAL: 1/25s-1/50000s，
  NTSC: 1/30s-1/50000s


• Image

• Exposure Mode:     Four modes: Global (default), BLC, HLC, DWDR

• Day/Night :   Three modes: Auto (default), Day, Night

• Digital Noise Reduction: 2D

• White Balance- Two modes: Auto (default), Manual

• WDR :  DWDR

• Smart IR:   Support

• Flip:    Supports 180°horizontal flip, 180°vertical flip

• Digital Defog : N/A


• Audio

• Built-in Mic :  Support


• Camera Audio

• TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
• Interface

• Power Interface:    5.5 mm Power Interface

• Video Output :  BNC, supports TVI/AHD/CVI/CVBS


• Operating Environment

• Temperature:  -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

• Humidity:  ≤ 95% RH (non-condensing)

• Surge Protection:   4kV for power&4kV for video output interfaces


• General

• Power DC 12 V ± 25%

• Power:  Consumption: MAX 2.3W

• Mount:   Corner Mount&Pole Mount

• Dimensions:  142mm*63mm*65mm (L*W*H)

• Material:  Graphene + Plastic

• Weight : 150g(0.33lb)

• OSD Menu Language: 11 Languages
   English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,Portuguese,(Brazil), Russian, Turkis
• Protection:
  IP67 (IEC 60529)
• Warranty: 2 Years


• Overview
  UAC-B115-AF28(40)-DL is a 5MP ColorHunter with smart dual light bullet analog camera with a high-performance 1/2.7-inch CMOS sensor.
  It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or
  other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission
  without time delay. The camera also supports audio input and synchronous transmission of audio and video. With UNV XVR, our
  ColorHunter cameras equipped with Smart Dual Light can intelligently switch between IR and white light when detecting a target or not,
  offering flexible lighting options and enhancing security


• Features

• High quality imaging with 5MP resolution

• TVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• Smart Dual Light (only TVI)

• Supports 180° horizontal flip, 180° vertical flip

• OSD configuration menu, easy to operate

• IP67 waterproof and dustproof design, high reliability

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables
