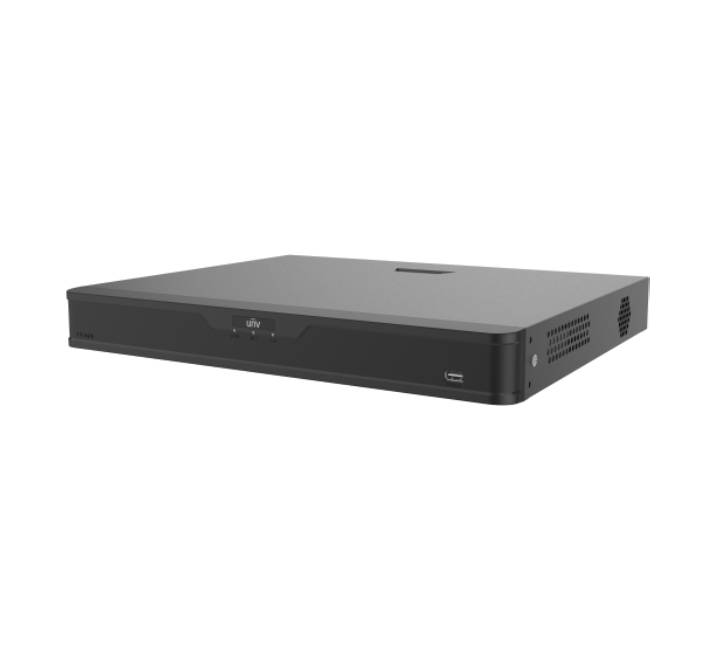

UNV NVR302-16B-IQ 2 HDDS 16-ch 1U Network Video Recorder

UNV R302-09B-IQ 2 HDDS 9-ch 1U Network Video Recorder

• Model: NVR302-16B-IQ

• Features

• Support Ultra H.265/H.265/H.264 video formats

• 16-channel input

• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T )
• and RTSP protocols

• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

• Support HDMI and VGA simultaneous output

• Up to 12 Megapixels resolution recording

• ANR technology to enhance the storage reliability when the network is
• disconnected

• Support cloud upgrade

• Decoding

• Decoding Format: Ultra 265,H.265,H.264

• Decoding Capability

• Smart Off：2 x 12MP@30, 2 x 4K@30,


• 4 x 4MP@30, 10 x 1080P@30, 16 x


• 720P@30


• Smart On：2 x 4K@30, 4 x 4MP@30,


• 8 x 1080P@30, 16 x 720P@30
• Decoding Capability Description: The resolution of each channel cannot exceed
• 8192 pixels in length and 4096 pixels in width

• Audio Compression: G.711A, G.711U

• Network

• Incoming Bandwidth: 160 Mbps

• Outgoing Bandwidth: 128Mbps

• Remote Users: 128

• Protocols :  TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP,
• RTSP, IPv6, IPv4

• Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

• Video/Audio Input

• IP Video Input: 16-ch

• RCA Audio Input: 1-ch

• Video/Audio Output

• HDMI Output:  4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz,
• 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz,

• 1024 × 768/60 Hz

• VGA Output : 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 ×
• 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

• RCA Audio Output: 1-ch

• Live view Display

• 1/4/6/8/9/16
• Corridor
• Mode Screen

• 3/4/5/7/9/10/12/16
• Two-way Audio

• Two-way Audio: 1-ch,RCA(Using the audio input and output)

• Snapshot

• FTP/Schedule/Event Snapshot:   4-ch snapshot (max. D1 (720 × 576) video
• resolution, with D1 snapshot resolution)

• Recording

• Recording Resolution:  12 MP/8 MP/6 MP/5 MP/4 MP/3
• MP/1080P/960P/720P/D1/2CIF/CIF

• Synchronous Playback in Local:  16-ch

• Smart

• VCA Detection by IPC:   Face Detection, Face Comparison, Vehicle Detection, SIP
• (Intrusion Detection, Cross Line Detection, Enter Area, Leave

• Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting,
• Crowd Density Monitoring), Traffic Monitoring

• Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP),
• Ultra Motion Detection (UMD)

• VCA Search:   Face Snapshot Search, Face Comparison Search, Motor Vehicle Search,
• Non-Motor Vehicle Search, Human Body Search, General Search, People Counting
• Report, Heat Map, AcuSearch

• Smart by IPC:    All channels (up to 8 images/s in total)Face Detection, Face
• Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring

• Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle
• pictures in total

• SIP by NVR : 2-ch

• UMD by NVR : 4-ch

• Alarm

• General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind,
• Object Removed, Auto Tracking, Motion Detection,

• Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

• Alert Alarm:   IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal
• Access, Hard Disk Space Low, Hard Disk Full,Recording/Snapshot Abnormal

• GUI Language

• 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai,
• Turkish, Spanish (Latin America),

• Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish,
• Czech, Hungarian, Slovak, Russian,

• Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish,
• Norwegian, Finnish, Croatian,

• Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

• Hard Disk

• SATA : 2 SATA Interfaces

• Capacity : Up to 10 TB for each HDD (The maximum HDD capacity varies with
• environment temperature)

• External Interface

• Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

• USB :  Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0

• RS485 :  N/A

• RS232:   N/A

• Alarm In :  N/A

• Alarm Out : N/A

• Power Supply: DC 12 V/3 A

• Working Environment

• Working Temperature:  -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)

• Working Humidity: ≤ 90% RH (non-condensing)

• PowerConsumption (withoutHDD):  ≤ 12W

• Dimensions

• Weight(withoutHDD): ≤ 2Kg (4.4lb)

• Dimensions : 380mm × 315mm × 53mm (15.0"×12.4"×2.1")
• Warranty: 2 Years
