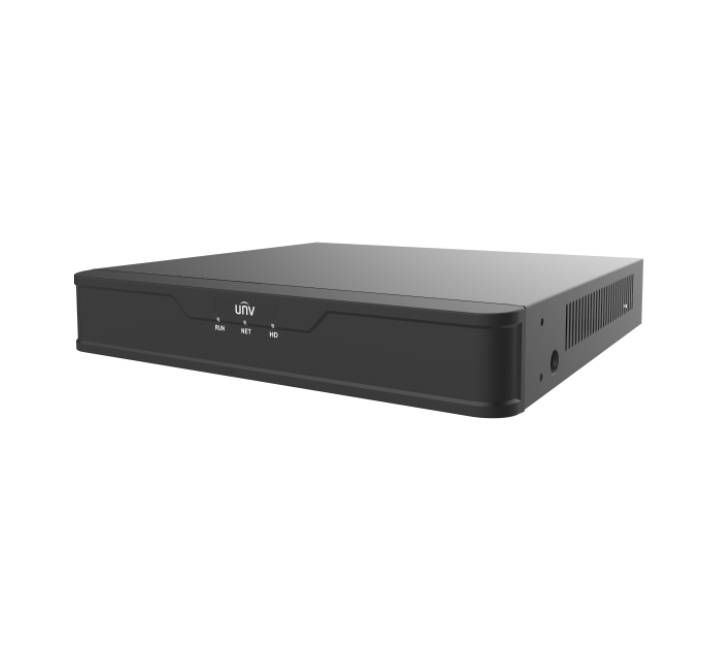

UNV NVR301-16S3 1 HDD 16-ch 1U Network Video Recorder

UNV NVR301-16S3 1 HDD 16-ch 1U Network Video Recorder

• Model :  NVR301-16S3

• Features

• Support Ultra 265/H.265/H.264 video formats

• 16-channel input

• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

• HDMI and VGA simultaneous output

• Up to 4K resolution recording

• Support cloud upgrade
• Decoding
• Decoding Format:  Ultra 265, H.265, H.264

• Decoding Capability:
  1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25,

  4 x 3MP@25, 6 x 1080P@30, 8 x

  720P@30, 16 x D1@25
  Decoding Capability Description:  The resolution of each channel cannot exceed 4000 pixels in
• 1
• P@25, 6 x 1080P@30, 8 x
• length and 3000 pixels in width

• Audio Compression:  G.711A, G.711U

• Network

• Incoming Bandwidth:  64 Mbps

• OutgoingBandwidth: 48 Mbps

• RemoteUsers:  128

• Protocols :  TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4

• Browser(Plugin):  IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

• Video/Audio Input

• IP Video

• Input:  16-ch

• Video/Audio Output

• HDMI Output:  4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 ×
• 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz,

• 1024 × 768/60 Hz

• VGA Output :  1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz,
• 1280 × 720/60 Hz, 1024 × 768/60 Hz

• 3.5mmAudioOutput: 1-ch

• LiveviewDisplay:
  1/4/6/8/9/16
• CorridorMode Screen:
  3/4/5/7/9/10/12/16
• Snapshot

• FTP/Schedule/EventSnapshot:  1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

• Recording

• Recording Resolution:  8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

• Synchronous Playback inLocal:   16-ch

• Smart

• VCADetection byIPC:   Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)

• VCA Search :  Face Snapshot Search, Behavior Search

• Smart by IPC :  Total 4-ch(Face Detection, SIP, UMD)

• Capacity ofSnapshot Records:   2 millions records for face snapshot

• Alarm

• General Alarm:   Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

• Alert Alarm:     IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full,Recording/Snapshot Abnormal

• GUI Language:   21 languages
   Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish,
  Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

• Hard Disk

• SATA :   1 SATA Interface

• Capacity:     Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)

• External Interface
• Network Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet Interface

• USB:  Rear panel: 2 × USB2.0

• RS485 : N/A

• RS232 : N/A

• Alarm In : N/A

• Alarm Out : N/A

• PowerSupply:  DC 12 V/2 A

• Working Environment

• Working Temperature:  -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)

• Working Humidity:  ≤ 90% RH (non-condensing)

• Power Consumption (without HDD): ≤ 5W

• Dimensions

• Weight(withoutHDD): ≤ 0.98Kg (2.16lb)

• Dimensions :  260mm × 240mm × 46mm (10.2"×9.4"×1.8")

• Warranty: 2 Years
