Description

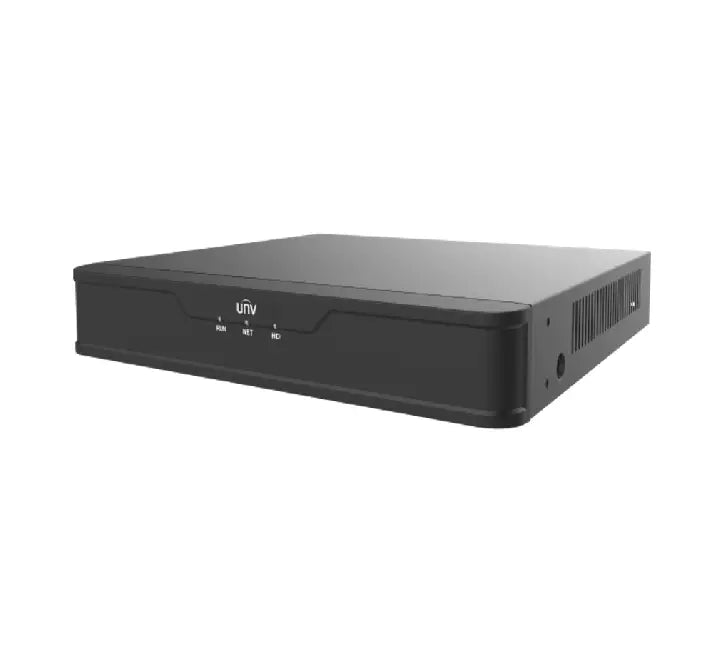

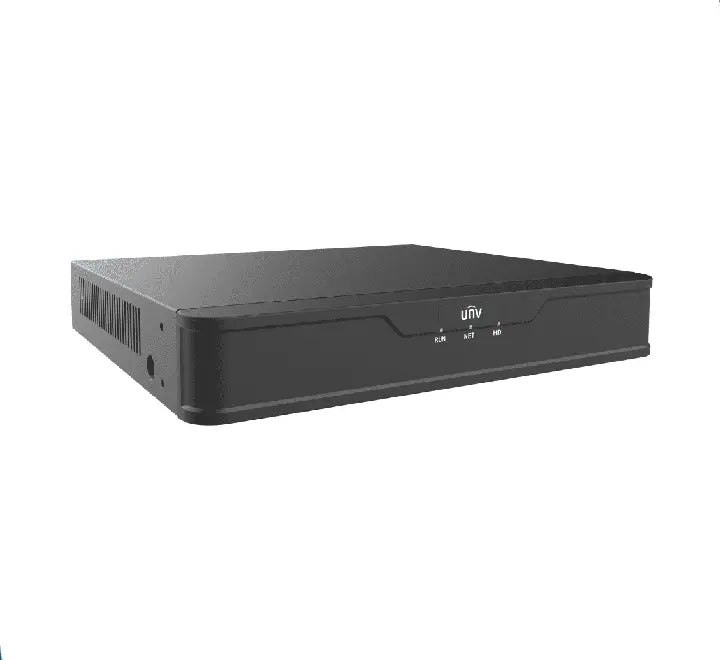

Secure Your Premises with the UNV NVR301-04S3 4-Channel 1U NVR
The UNV NVR301-04S3 is a high-performance, reliable 4-Channel 1U Network Video Recorder (NVR) engineered by Uniview. Perfectly tailored for small-to-medium business surveillance and home security setups, this NVR delivers crystal-clear video management capabilities. It supports mainstream IP cameras compliant with ONVIF profiles (S, G, T) and RTSP protocols, offering flawless third-party integration.
Equipped with industry-leading Ultra 265 compression technology, the NVR301-04S3 helps you save up to 75% on storage space and bandwidth without losing critical video quality. With support for up to 4K recording and simultaneous HDMI/VGA video outputs, monitoring your property in ultra-high definition has never been easier.
Key Features
- Ultra 265 / H.265 / H.264 Video Formats: Maximizes storage space efficiency and ensures smooth streaming over lower bandwidth networks.
- 4-Channel IP Camera Input: Supports up to 4 individual network cameras simultaneously for comprehensive local coverage.
- Stunning 4K Resolution: Supports 1-channel HDMI output up to 4K (3840x2160) resolution alongside a simultaneous crisp VGA output.
- Massive Storage Capacity: Features 1 SATA interface supporting an internal hard drive up to 10TB (HDD not included) for extended video logging.
- Smart VCA & Intelligent Detection: Works seamlessly with IPC smart functions including Intrusion Detection, Cross Line Detection, Face Detection, and Ultra Motion Detection (UMD).
- Cloud Upgrades & Remote Viewing: Enjoy simple, hassle-free one-click cloud firmware updates and manage your system anywhere via mobile apps or web browsers.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniview (UNV) |
| Model | NVR301-04S3 |
| IP Video Input | 4 Channels |
| Video Compression | Ultra 265, H.265, H.264 |
| Bandwidth | Incoming: 64Mbps | Outgoing: 48Mbps |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| HDMI Output | 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz |
| Storage Interface | 1 SATA Interface (Supports up to 10TB per HDD) |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Ports | 2 x USB 2.0 (Rear Panel) |
| Audio Output | 1-ch, 3.5mm Jack |
| Protocols Supported | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Power Supply | 12V DC | Power Consumption: ≤ 5W (without HDD) |
| Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2” × 9.4” × 1.8”) |
| Weight | ≤ 0.98 kg (2.16 lb) without HDD |
