Description

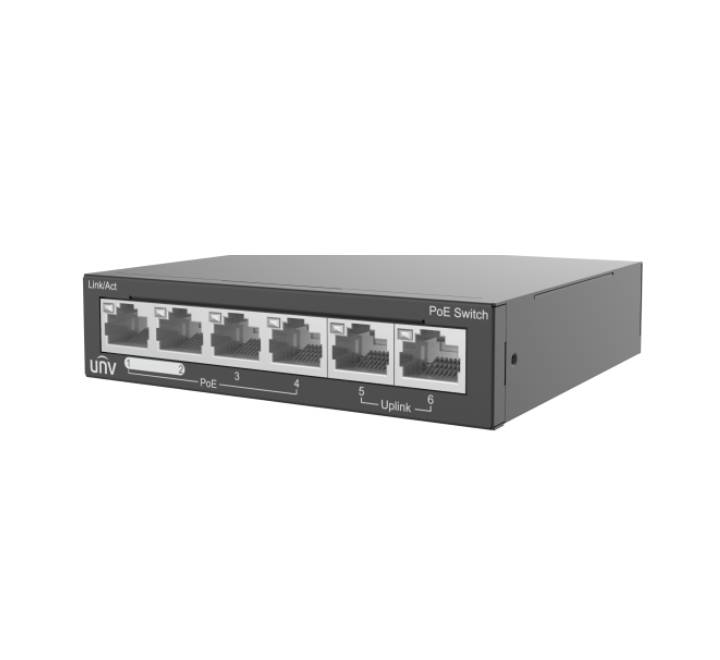

UNV NSW2020-6T-POE-IN Unmanaged Ethernet Switch (PoE)
- Model: NSW2020-6T-POE-IN
-
Features
- Multiple working modes to address your business needs: Default(Normal mode),
- EXTEND(Surveillance mode)
- Support port traffic control
- Up to 250m transmission distance on Extend mode
- Support buffer optimization
- All metal housing, safe and reliable
- Hardware Specification
- PoE Mode: 802.3at/af , ModeB :(4/5+, 7/8-)
- Ports Type: 6×100Mbps network ports (RJ45), including 4 PoE ports
- Switching capacity: 1.2 Gbps
- Packet Buffer: 448K bit
- MAC : 1K
- Forwarding performance: 0.90Mpps
- Prior Ports : 1 to 2
- Cooling Fans : 0
- Dimensions (W×D×H): 107*101*25mm
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- Max.Power: 65W
- Weight: 0.19KG
- Operating humidity: 10%～90% (non-condensing)
-
Indicator
- POWER:
- Steady on: AC input is normal
- Off: No AC input
- No PoE Indicator
- PoE-MAX：
- off ：The POE power supply power of the whole machine is less than 80% of the specification
- Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
- LINK/ACT：
- Off: No link
- Steady on: Linked
- Flashing: Transmitting data
- Working Mode: Default (Normal mode) : All ports can communicate with each
- other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
- Warranty: 2 Years
