Description

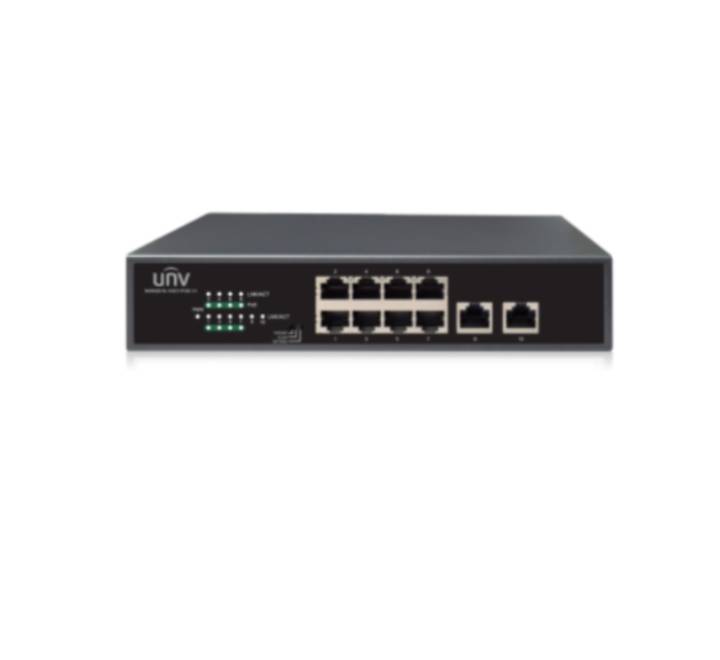

UNV NSW2010-10GT-POE-IN Ethernet Switch (POE)
- Model: NSW2010-10GT-POE-IN
-
Features
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange;
Ports Type : 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- Switching capacity : 20 Gbps
- Packet Buffer: 2 M bit
- Forwarding performance: 14.88Mpps
- MAC: 2K
- PoE : support POE
- Cooling Fans: 1
- Weight : <1.24kg
- Operating humidity: 10%～90% (non-condensing)
- Dimensions (W×D×H): 220mm x 150mm x 44mm
- : (8.7"×5.9"×1.7")
- Working Mode: Default (Normal mode) : All ports can communicate with each other, VLAN
- (Secure mode): Downlink ports can communicate only with uplink ports., Extend
- (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
- Warranty: 2 Years
