Description

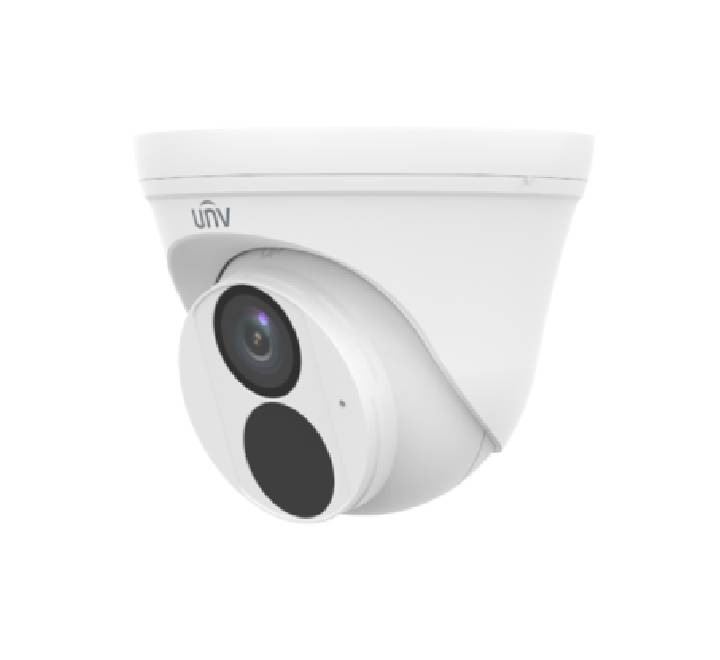

UNV IPC3612LB-AF28-A2 2MP Fixed IR Turret Network Camera (Dome)
-
Features
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- Built-in mic
- Smart IR, up to 30 m (98.4 ft.) IR distance
- Day/night functionality
- 2D/3D DNR (digital noise reduction)
- DC 12 V, PoE (IEEE 802.3af) power supply
- IP67 protection
- 3-axis
-
Camera
- Max Resolution - 2 MP
- Sensor - 1/3.0" CMOS
- Min. Illumination - Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
- Day/Night - IR-cut filter with auto switch (ICR)
- Shutter Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle - Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
- S/N - >52 dB
- WDR - DWDR
-
Lens
- Focal Length - 2.8 mm 4.0 mm
- Iris Type - Fixed
- Iris - F2.0
- Field of View (H) - 99.5° 77.1°
- Field of View (V) - 56.5° 42.8°
- Field of View (D) - 114.4° 88.2°
- Lens Type - Fixed
-
DORI
- DORI Distance (Lens) - 2.8 mm 4 mm
- DORI Distance (Detect) - 46.7 m (153.1 ft.) 66.7 m (218.8 ft.)
- DORI Distance (Observe) - 18.7 m (61.4 ft.) 26.7 m (87.6 ft.)
- DORI Distance (Recognize) - 9.3 m (30.6 ft.) 13.3 m (43.7 ft.)
- DORI Distance (Identify) - 4.7 m (15.4 ft.) 6.7 m (22.0 ft.)
-
Illuminator
- Supplemental Light - IR
- Illumination Distance (IR) - 30 m (98.4 ft.)
- Wavelength - 850 nm
- IR On/Off Control - Auto/Manual
-
Video
- Video Compression - Ultra 265, H.265, H.264
- H.264 Code Profile - Baseline profile, Main profile, High profile
- Frame Rate - Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
- Video Bit Rate - 128 Kbps to 6144 Kbps
- U-code - Support
- OSD Up to 4 OSDs
- Privacy Mask - Up to 4 areas
- ROI - Support
- Video Stream - Dual streams
-
- White Balance - Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
- Digital Noise Reduction - 2D/3D DNR
- Smart IR - Support
- Flip - Normal, Flip vertical, Flip horizontal, 180°
- Dewarping - N/A
- HLC - Support
- BLC - Support
- Defog - Digital defog
- Image Stabilization - N/A
-
Events
- Basic Detection - Human body detection 2.0, Motion detection, Audio detection
- General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User
authentication, HTTP authentication
- Audio
- Audio Compression - G.711U，G.711A
- Audio Bitrate - 64 Kbps
- Two-way Audio - N/A
- Suppression -Support
- Sampling Rate - 8 kHz
-
Storage
- Edge Storage - N/A
-
Network
- Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP,
QoS
- Compatible Integration - ONVIF (Profile S, Profile T) , API, SDK
- User/Host - Up to 32 users, 2 user levels: administrator and common user
- Security - Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication
for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
- Client - EZStation, APP
- Web Browser - Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
-
Interface
- Audio I/O - N/A
- Alarm I/O - N/A
- Serial Port - N/A
- Built-in Mic - Support
- Built-in Speaker - N/A
- WIFI - N/A
- Network - 1 × RJ45 10 M/100 M Base-TX Ethernet
- Video Output - N/A
- Warranty ; 2 Years
