Description

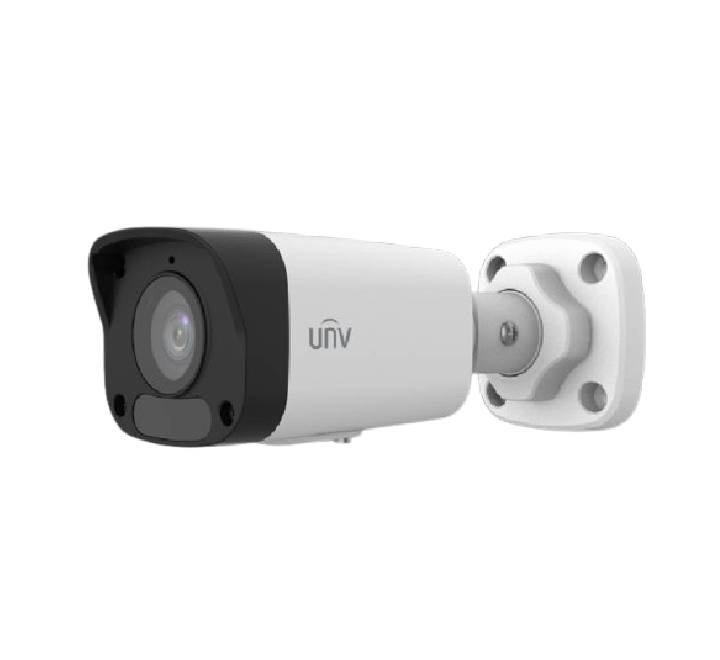

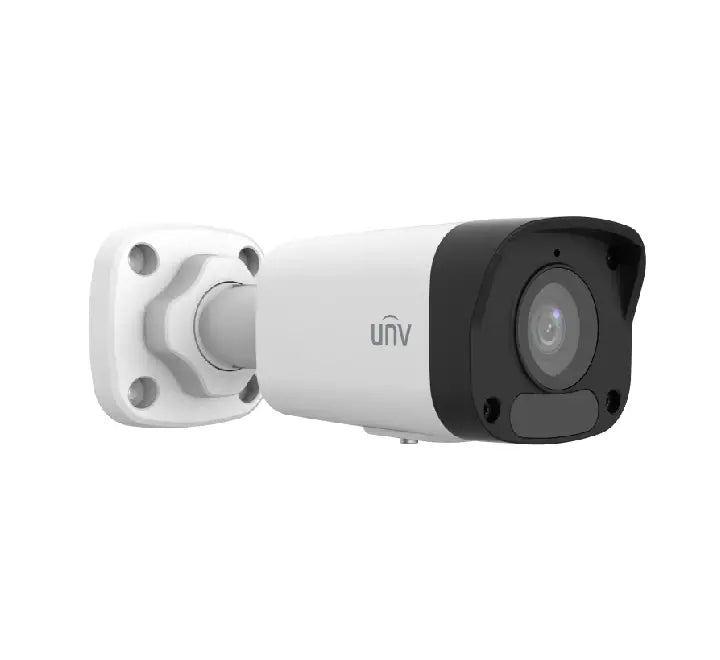

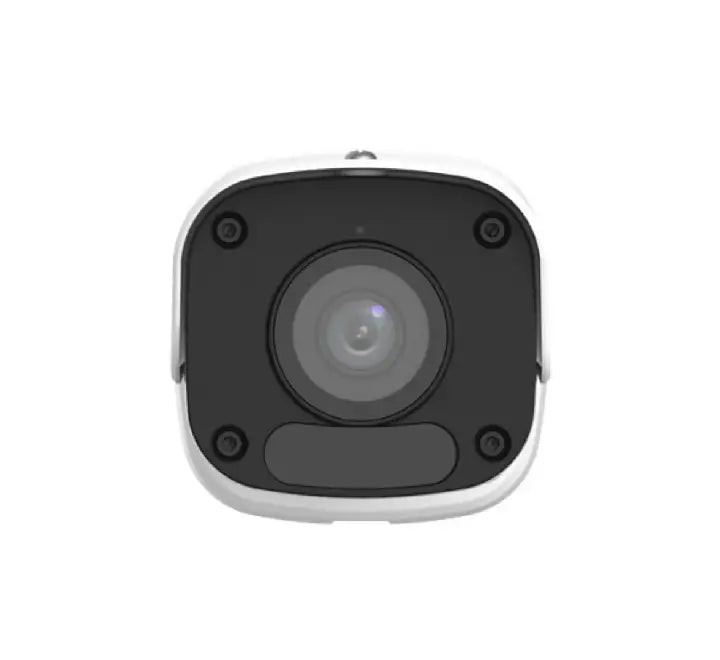

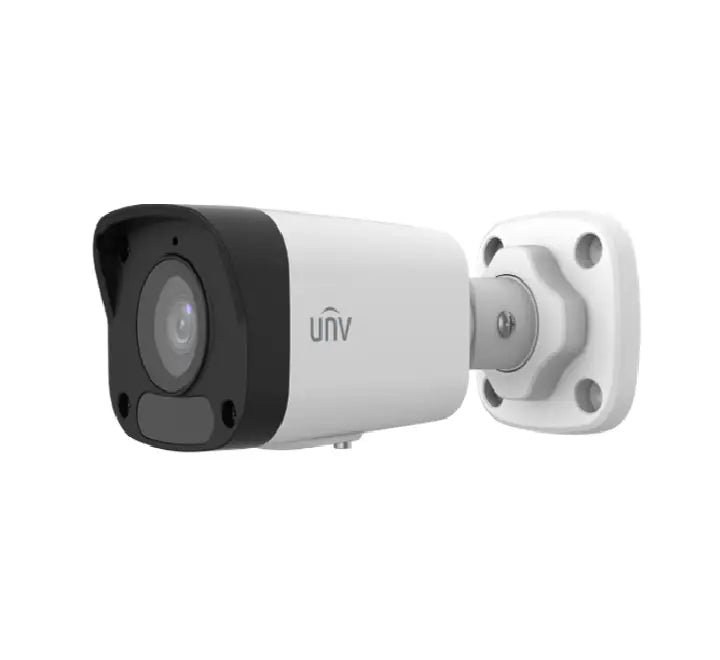

UNV IPC2124LB-ASF40K-A 4MP Fixed IR Mini Bullet Network Camera
- Model: IPC2124LB-ASF28(40)K-A
- High quality image with 4MP, 1/3.0" CMOS sensor
- 4MP (2560 × 1440)@25/20 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 ×
1080)@30/25 fps
- Ultra H.265, H.265, H.264
- Built-in Mic
- Smart IR, up to 30 m (98 ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Supports Micro SD card
- IP67 protection
- DC12 V or PoE (IEEE 802.3af) power supply
- 3-Axis
-
Camera
- Max Resolution : 4 MP
- Sensor : 1/3.0" CMOS
- Min. Illumination : Colour: 0.01 lux (F2.1, AGC ON)
0 lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle : Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- S/N : >52 dB
- WDR : DWDR
-
Lens
- Focal Length : 4.0 mm
- Iris Type : Fixed
- Iris : F2.1
- Field of View (H) : 79.0°
- Field of View (V) : 42.3°
- Field of View (D) : 85.1°
-
DORI
- DORI Distance(Lens) : 4.0mm
- DORI Distance(Detect) : 90.0m(295.3ft)
- DORI Distance(Observe) : 36.0m(118.1ft)
- DORI Distance(Recognize) : 18.0m(59.1ft)
- DORI Distance(Identify) : 9.0m(29.5ft)
-
Illuminator
- SupplementalLight : IR
- Illumination Distance (IR) : 30 m (98.4 ft)
- Wavelength : 850 nm
- IR On/Off Control : Auto/Manual
-
Video
- VideoCompression : Ultra 265, H.265, H.264
- H.264 Code Profile : Baseline profile, Main profile, High profile
- Frame Rate : Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max 25fps;2MP(1920*1080),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate : 128 Kbps to 6144 Kbps
- U-code : Support (main stream)
- OSD : Up to 4 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Support
- Video Stream : Dual streams
-
- White Balance : Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
- Digital NoiseReduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal, Flip vertical, Flip horizontal, 180°
- Dewarping : N/A
- HLC : Support
- BLC : Support
- Defog : Digital defog
-
Audio
- AudioCompression : G.711U, G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio : N/A
- Suppression : Support
- Sampling Rate : 8 kHz
-
Storage
- Edge Storage : Micro SD, up to 512 GB
-
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
QoS, SSL/TLS, SMTP, SNMP
- CompatibleIntegration : ONVIF (Profile S, Profile T),API, SDK
- User/Host : Up to 32 users. 3 user levels: administrator, common user and operator
- Security : Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest
Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
- Client : UNV-Link, UNV-Link Pro, EZStation
- Web Browser : Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox
58+, Edge 16+
-
Interface
- Audio I/O : N/A
- Alarm I/O : N/A
- Serial Port : N/A
- Built-in Mic : Support
- Built-in Speaker : N/A
- WIFI : N/A
- Network : 1 × RJ45 10 M/100 M Base-TX Ethernet
- Video Output N/A
-
Certification
- EMC : CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
- Safety : CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment : CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
- Protection : IP67 (IEC 60529)
-
General
- Power : DC 12V±25%, PoE (IEEE 802.3af)
- PowerConsumption : Max 5.0W
- Power Interface : Ø5.5 mm coaxial power plug
- Dimensions : 161 × 63 ×62mm (6.4” × 2.5” × 2.4”) (L x W x H)
- Weight : 0.33kg(0.73lb)
- Material : Graphene + Plastic
- Working Environment : -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
- StorageEnvironment : -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
- Surge Protection : 4 KV
- Reset Button : N/A
- Warranty : 2 Years
